The New CLiR Infrared Processing System and Photoshop panel!
I will be presenting at this years NECCC Photographic Conference from July 12 to the 14 at the University of Massachusetts. Please consider attending if you are in the area!
I have posted a short video on what the session will be covering that my dog and I made today (she says to watch it to the very end)!
I LOVE working with long exposures…
There is so much peace in the long exposure process. At the scene, behind the camera and the results after processing simply takes my breath away. It does not matter what you decide to shoot with, Color, B&W, IR or Film because It simply does not matter, It all works. The processes of working with LE is that as we slow down the shutter of the camera we too are forced to slow down our mental process and be drawn into the scene! This works for boneyard shots at the beach, moving clouds over a building or simple rocks in the surf, It is an amazing journey in one single shot!
That is the thing about coastal Georgia. there are so many amazing photographic opportunities. Aside from the biggies, You all know how I love working in film and wabi/sabi, but creating long exposures is the one single photographic technique for me that always brings me peace…
This is your chance to learn the process, from artistic vision, choosing the correct filters and camera settings to post processing! Come along and learn all of these and more with Jamie and I. You will not be disappointed.
What exactly is needed in terms of equipment?
There are some equipment requirements for long exposures and as you find your self drawn into the process you will likely expand your catalog of gear, especially filters!
My solid set includes:
My square (75mm and 100mm) set includes:
There are many makers of ND filters, I have always gone with B+W and Lee but the Breakthrough are much higher quality with a much higher cost. Because I have recently added a Fuji Medium Format digital system I am building a set of the Breakthrough filters in both solid and graduated using both their new magnetic system and the 100mm square filters for the graduated.
To start, you do NOT need all of these and the basic set will allow you to get started but you will run into trouble as the sun approaches the horizon on sunrise/sunset.
Learning how to use all of these filters is not difficult but you will be miles ahead of everyone if you consider a workshop that covers all of it PLUS the art of post processing your long exposures after capture. The Georgia Coast is a great place to do just this. We will be out all day learning behind the camera as Jamie and I wander around with you helping along the way, sharing our secrets for in camera, as well as the art of post processing in evening classes at the hotel! This is a great workshop to learn the technique of long exposure but not limited to that! We will spend time at a lighthouse, a old broken down building, piers, beaches and of course AMAZING SHRIMP BOATS!
You can download a PDF info link here:
There is some serious food for thought in this last statement. In these days of rapid fire digital photography don’t you think that we can quickly loose sight of what it is that we are trying to create in our art? Shooting in film slows you down which aids in the creative process. This is not to say that we cannot do this with our digital systems because we can and I do, but rather most of us who practice this art tend to “hurry, capture and move on to the next thing!”It was almost as if it was an afterthought that I actually took my Sony A7rii with me up the trail to the overlook and took a few images which were actually quite nice in color, but after the sensory overload of the scene I could only think of one thing, B&W and FILM. Yes, I could convert the color image above to B&W in post processing and do quite a good job of it but NOTHING can compare to what I can create with film! So, it was a bit of a walk back down to the car where my wife and 7 year old grandson were resting because of the long drive to get here, but down I went with only one task, to trade the digital for a TINY B&W film camera, the Olympus XA. The XA is the worlds smallest 35mm rangefinder camera. It has an amazingly sharp lens with easy focus, but the key is the fact that it is pants pocket (not those bulky cargo pockets but regular ones), it is light and handy.
I took so much camera equipment on this trip that the only space I had for a film system required that it be tiny. Against all of my experience I threw in this tiny camera along with just 5 rolls of Kodak Tmax 100 film and off we flew. I am so glad that I did now but having said this it is only fair to share that this was a colossal mistake. I should have made room for a medium format (120 6×7) camera and taken out a lens or two for the Sony. I have learned my lesson and will never repeat this mistake. Don’t get me wrong, the XA captured an amazingly detailed and sharp image. I love how it turned out. The Kodak Tmax 100 film along with the Perceptol developer generated a image (yes small) with tiny grain and great sharpness. Am I happy with the result? You bet! Would I have been happier with a larger 120 negative, OMG YES!! Can I have a do over please? Yes, I know, not to much of there ever being a chance for that.
So lets sum this up a bit shall we?
Warning, LONG post…
Travel Photography… Say it, let it roll off your tongue, think about it! I bet that the first thing that comes to mind are images from National Geographic, fine, super saturated color photographs that could take you anywhere in the world by simply looking at them! You know the kind, they enabled you over the years to travel vicarisly around the world just with the magazine and its images!
But is that what travel photography really is?
What is the intent of travel photography to document a place or a trip? Is it designed to tell a story on an individual level or to the masses?
Well for me, it is a combination of the two. Most importantly, the images are to refresh the memories of the trip. But there is a real market out there for well done travel photography whether in print publications, web, advertising or fine art prints. It can be quite profitable if you work at it and can step back and look at your own images in terms of the above markets. Even the housing deceration market has room for this type of photography provided that you can simplify your work to show colors and contrasts over locations.
For this trip, and pretty much all the time when I am shooting digital, I exclusively use the Sony 42 mpix A7rii camera system and the new Sony A6300 for high speed work with Sony G lenses or Sony Zeiss lenses. They are very well suited to this type of photography and give you enough (42 mix) resolution to get amazing images yet still have room to crop!
The drive for this post was a recent two week trip out West with my wife and 7 year old grandson Jordan who I am teaching film photography and darkroom processing to (photographically, I had grand plans for him this trip). Given time I plan on turning him into a photographic GOD for something fun while making sure he is a Rocket Scientist!
We flew into Rapid City, SD and picked up a one way rental car and our first night in a long string of hotels.
Day 1. Rapid City layover and rest.
So as you can see there was a well thought out family plan for travel and location visits! But, I also had a plan, my photographic plan!
So lets talk first about my TRAVEL photographic equipment plan. I wanted to travel light (yea right). No backpack, rather a small rolling camera case that would fit into the over head of a small commuter plane so that I would not have to check it. I would not have room for a film camera… Dang!
So here is what I brought along:
This was a good plan (or so I thought) until our very first stop at Mt. Rushmore where Jordan informed me that the 24-240 was too long and heavy. Oh well, I took that and gave him the 24-70.
Ok, so at least the part of the photographic plan of me being able to NOT check my camera equipment worked! (I did put all of my insulin and supplies in the camera case just to prove my need to have the case with me but did not need it).
Yes, I know that one would not normally trade a light 24-70 Sony/Zeiss f/4 lens for a 24-240 f/3.5-5.6 Sony super zoom but I have to be honest, I was VERY impressed with the super zoom! It was not really that much heaver but it was longer. I NEVER put on the 24-70 after that.
I expected great things of Yellowstone and that showed in the number of days there as well as staying in the park. Yellowstone is HUGE, so much so that you have to allow for HOURS of driving time from location to location. The roads are all good, 2 lanes with adequate pull offs. BUT having said that there are rules of behavior in pulling off and rules for how you treat the wildlife. I cannot tell you how many people (especially foreign visitors) who would jump out of the car (still in the road) and run off into the fields right up to the wildlife. To say that this is bad behavior is an understatement. It for one, keeps others from being able to photograph the wildlife and two puts the peoples lives in grave danger that approach the wildlife! Yet this happened almost every time wildlife was near the road. The park rangers had simply given up on trying to educate people who would not listen. They spend most of their time dealing with the MANY dreadful traffic accidents that happened every day. The traffic jams were terrible whenever an animal was near. Sometimes this was due to the animal being on the road but most of the time it was because people parked right in the middle of the road who left their cars.
I am going to share a few of my favorite images from Yellowstone with you. It is a good cross section of what you can expect to see while visiting!
I would travel again to Yellowstone but in the spring or fall in order to see more of the wildlife there. I realize that in the heat of August even the animals would move to higher locations in order to reduce the heat. The only wildlife I really saw in abundance on this trip were Buffalo, Elk and Antelope.
So…. I had this vision stuck in my head of a parked line of freight train box cars parked in the high desert with a mesa behind them. I found myself looking to the sides of the car as we traveled endless miles through Wyoming and Utah. Finally my wife asked me what I was looking for and when I told her she made a point to help me look and stop me when we came upon them. I know that out West there are ultra long stretched of road. Most are 4 lanes with lots of traffic. If you see that special scene make sure that you safely stop so as not to irritate the 7 year old in the back seat, pull safely off to the side of the road as you watch for the perfect compositional setup and get out and shoot it! DO IT!
To say that Bryce National Park is anything less that amazing is an understatement. It was right up there with Arches and Yellowstone in amazing views, colors and the wow factor! This is the location that I would choose to visit again to try some different styles of photography. The colors of the Hodoos are simply amazing and full of wild colors and contrasts.
While in Arches, my 7 year old grandson decided that he had enough nature and vistas after driving Arches all day long. I took them (at my wife insistence) back to the hotel and went back out to Arches and drove it again in different light conditions and the 2nd time there were clouds in the sky. This made for much better images that I would not have gotten if I did not go back out again!
Final thoughts on what makes travel photography great!
Now as you have seen here, I presented this trip as a travel log. Attempting to document the many wonders of the high plains in the west. For images that have the possibility of selling you need to:
This type of travel photography is more difficult that personal travel images traditionally done by the millions of photographers who roam the country. These types of images are still travel photography but basically serve to show and remember your great trips! They will include more family member in the scenes, less care about the total compositional elements because those are simply not as important to the memory of the trip and locations! They are just as important, but will not generally generate income from sales and publication.
Yes, you are correct, I shoot with the Sony A7rii 42 mega pixel full frame mirrorless camera! What you cry am I doing with the A6300 which is only 24 mega pixel and an APS-C sensor? Well friends, the answer to that is simple, well perhaps not… I envision the A6300 as a 720nm Infrared camera.
But it has several very interesting and powerful functions that have engaged my curiosity. Those are:
The 4 test images I took today were shot hand held at 1/250s and in RAW with Zone Focusing. I also had the LIVE VEIW DISPLAY: Setting Effect: ON. This enabled the camera to simulate the exposure effects during composition to give me an idea of what I am actually seeing.

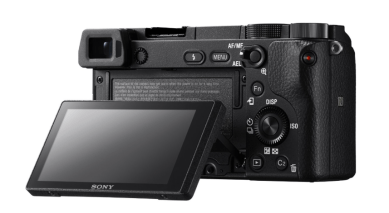

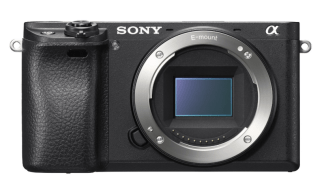

The A6300 is a TINY camera system. It is so light (even with a L Bracket installed) that I had to be very careful when carrying it around. I worried over dropping it and not knowing!
The camera does NOT have a built in Stabilizing system, rather it relies on the fact that most Sony lenses have that built in. I has 3 custom WB memories for those of you who are considering the camera for Infrared and it also has 2 custom setup memories that I have found to be very helpful with my A7rii camera!
I found the camera very easy to use and control. I setup all of the custom functions and buttons to make my life easier when shooting it.
As I said, this camera was meant to be converted by http://www.kolarivision.com into a 720nm infrared system and it may actually meet that end, but I really like the ability of the APS system to give me 900mm from a 600mm lens!
Here is the color version (with polarizer) of the image above. The colors are nicely saturated and the overall image is sharp and offers enough detail and sharpness to draw the viewer into the image!
Here is another view of the salt marsh. I have to say that the camera with the 24-70 Zeiss lens is easy to hold and control. The camera control buttons are easy to reach and control without using them by accident.
Lastly, a B&W conversion of the same image.
I am really excited with the functionality of this little system. I am pleased with the results and will use it for a few months as a color system for my long lens. Ultimately it will be converted to IR but for now I will play with it.
There are several issues with its firmware (same as when the A7rii came out). Overheating during hight speed continuous shots is the big one but Sony assures me that a fix is in work as it was when the A7rii camera came out!
I will be experimenting with the system for a few months and see what it can offer me in terms of images and use. Later this week it is going to the beach for some ultra long exposures to see if it has any body light leaks!
What do your think?
You know how it is when you walk up to a scene and notice it for the very first time? Usually we are amazed at what we have discovered! We setup take the image and walk away congratulating ourselves as to the amazing luck at finding such a perfect subject!
But wait! You have all heard that you should work a scene, right? Just look at all of the cool parts that make up the whole. I am also sure that you have heard the phrase, “WORK THE SCENE”! Well that actually means what it says. Start wide and work in and around getting closer and more details! When you are as close as you can stand, then work your way back out again!
This is powerful advice…
This is also the secret of all those world class images you see posted or published around the world. Do you actually think that the professional photographer working and Nat Geo only took the one image? Really??? They are just like the rest of us, a 30% keep rate and a 90% garbage rate!
So, knowing that it only make sense to take the time to work the scene. Looking at the top image you see that I could the shrimp boat Stormy Seas with a long liner Charlotte Marie under the strong clouds of tropical storm Bonnie. The scene is full of mood, color and contrasts. I was specifically looking to work the shrimper so I did not pay any attention the the long liner. Here they are a dime a dozen but there are likely a lot of detail shots there also…
So as you can see, I have now walked around to the dock the shrimper is on and take a bow shot composing to keep the other boats, docks and other muck out of the image. I still set it up to get the great storm clouds. A much better shot than the first, no?
Next I move further in, closer to the bow, looking at the painted boat name and the great structure and contrasts hidden the the hull of the boat. As I stand here I think to myself that having the anchor cut off is a bit distracting but then decide that it adds a hint, or suggesting more out of scene that adds a bit is mystery to the image. Again, in post, I have added a bit of mood to the clouds also!
Now I am walking down the boats side, paying attention to the colors and patterns around the wheel house. There is a lot here and the images continue to improve. Having the walkway moving up and away from me give a sense of infinity and curiosity as to what is at the bow above!
Moving further back towards the boat’s stern (back for you folks who live in Idaho!) I come upon the life ring with assorted fishing accessories hanging from it. This scene is the most promising so far. Look at the textures in the wall of the wheel house, the deep rich red tones and the crisp writing of the boats name! It gives me shivers overtime I look at it!
But wait! Just below the life ring hanging on the gunnels of the boat is a coil of heavily textured rope. The rusty bold and chipped and rotting rail add so much texture, mood and stories that I am drawn to create an image just of this one detail!
This is exactly what will happen if you take the time to explore your scene totally working inwards getting more and more details as you go! If the scene is worthy of taking, it demands that you explore it in great depth and detail. Give it the time to do a good job and document all of it’s glory!
Do not forget to work in B&W as well, each and every image you take might have magic wonder hidden within its detail if you look at in in monochrome! Look closely at the image above. The hull has MUCH MORE DETAIL in its structure than the one in color did yet they are the same exposure! The clouds have more depth. Monochrome images discard the distractions caused by color… But that is the subject for another post….
I LOVE shooting IR and have a long history with it in both Film and Digital. I have had over 25 conversions from ALL of the big conversion companies around the country! But, once in a while I would get a camera that no mater how hard I tried, I will get a hot spot with it or the lenses I used. You learn how to deal with this by selective use of the aperture but once in a while you would just not be able to get around the problem and loose the shot….
Well about 3 weeks ago Ilija from Kolari (http://www.kolarivision.com ) sent me a note telling me about a new coating process for his conversion filters. I have a long history with Kolari, LDP and Lifepixel but I have never heard of this till now. Ilija offered to do a free conversion with this newl IR AR coating for me in return for evaluating it in the real shooting world! So I told him that I would send the X100s off as a test camera and that I needed it back fast in order to allow others to play with the camera also! Off it went on Tuesday. Imagine my surprise when I got it back in hand the following Wednesday!

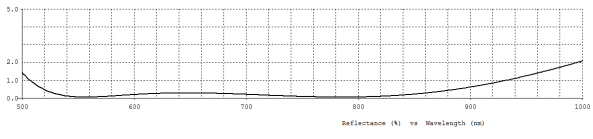

Here is what Kolari says about this new AR IR coating:
So as you can see they are up and almost ready to start filling orders for these new filters.
I have to tell you that with my test conversion on the Fuji X100s to AR 850nm that ALL of my hot spot issues simply went away. This camera has always had a tendency for IR hot spots. I have converted, tried and sold so many IR systems in the past that I have lost count. I could not, would not sell this one as it is one of my most prized IR systems. To say that I am pleased with the results of the Kolari IR AR Coating is the understatement of the year!
Remember, if you decide to order from Kolari, give them my name for a $15 discount!
I was in Charleston, SC last weekend with the a7rii camera system to see how far I could push it! I find the Sony system to be refreshingly powerful and very capable of any style of photography I desire to shoot. The Image above of the boat house (Sunrise) was just another example of the power of this system. I was looking for some long exposure and the water of Charleston Harbor was very smooth to start, with only 6 to 12 inch waves. The sunrise was blocked by a tremendous super cell thunderstorm system so I just concentrated on the boathouse and smoothing out the water. I was using the Sony FE 70-200mm F4 G OSS lens at 150mm with a 6 stop B+W ND filter attached which was giving a 30 second exposure. I was sure that 30 seconds would give me a very smooth water (which it did). I also desired to capture detail in the stormy clouds but keep the white water. I metered the waters surface and placed it in Zone 7.5 (what! You do not know the zone system? Shame…. We will have to fix this!). This at ISO 50 and f/16 gave me a 30 second exposure and allowed the 14 stop dynamic range of the camera to capture both the withe of the water as well as cloud details!
Granted, the Sony has a LARGE menu system but the provide you so many programmable custom buttons AND several system setup memories that you can with the turn of a control knob chance the camera functions over to the specific style of shooting you desire! In my case, I have the M2 memory setup for long exposures, and by simply turning the command dial to M2 the camera is ready for long exposures!
Here is another example of the amazing capture ability of the Sony. This is the shrimper Miss Lulu on the dock in Georgetown, SC last Monday morning. The water of the bay was at slack tide, super high and mirror smooth. I decided that for this image I wanted B&W but still captured it in color since a color starting image gives the best B&W conversion. I was using the Sony/Zeiss FE 24-70mm F4 ZA OSS lens at ISO 100 at f/8 with a shutter speed of 1/320 second. I waited till a Pelican flew into the scene from behind the boat for the capture. The clouds were slight but still stunning but the boat and its reflection really made the image.
As I said, During my pre-visualitlation of this image I decides upon monochrom with a flying bird. I setup the boa further into the image space to allow for a bird to fly into the scene and balancing the overall image with the boat centered with the trees on the right. This is not a simple snap shot, a lot of thought went into its setup!
Shrimp Boats are one of my favorite subjects and each and every time I happen by them they always present something new and different!
Yes, it has been a busy year with the start of our workshop schedule! Add into that a knee operation, taxes and other such negative aspects to life we decided that it was time to take a break! So, for 2 perfect weeks we ventured out to the San Fransisco area to explore the rough West Coast!
I know that it has been a long time since I did a post here but the workshop and teaching schedule has been brutal. It seems as quick as one year ends that another begins and we are busy again! The good news is that the photo schools are moving along and this years workshops are moving forward. I have had NOT had any time to work in the darkroom this year yet but hope to fix that soon as well. Plus the knee repair is finished and I am starting to feel a little better after that!
So, we decided to take a break from it all and flee to the West Coast to get lost in the rough shore, wildlife and the continued search for old fishing boats! It was a wonderful trip and I am sorry to say that it is all over and done with but with great photographic results!
This trip was centered on the new Sony A7rii 42 mpex camera body. As you know I am a dedicated mirrorless shooter and in my quest for the perfect camera I have settled on this system. It has amazing functionality, SUPER wide dynamic range (14) and a review from DXO as the best and most advanced image sensor ever tested! I also added the Sony/Zeiss 24-70 f/4, the Sony 70-200 G f/4 and the Tamron 150-600 A lens with the Sony adapter which allows full lens control and auto focus. I also have adapter for all of my Leica and Contax glass as well but for this trip it is the 3 lenses listed above!
We based our home plate in San Jose and then traveled around for the 2 weeks. Spend most of our time in Santa Cruz because the hummingbirds were there in vast numbers building nests and laying eggs, but more on that later. We also went north to Point Reyes specifically to photograph the wrecked fishing boat Point Reyes. But while there spent time with the lighthouse and Elephant Seals!
We also went south to Monterey for whale watching and a trip along the 17 mile drive! The image above is from the Lone Cyprus along the drive. The drive costs $10 per car but is very much worth the cost. It is full of wildlife such as birds, deer and seals. The rugged coast has to be seen to be believed!
So then this image I am sharing above is the Point Reyes, a boat washed ashore a while ago. This boat was suggested to me by my friend Jennifer Hunter who lives in Santa Cruz and was one of my main location visit requirements. This is in a National Sea Shore North of San Fransisco and was about a 3 hour drive from San Jose.
The WEEK we arrived this boat was burned on its stern by a STUPIDLY UNCARING PHOTOGRAPHER who put his own agenda above the preservation of the scene. He was doing spark photography with flaming steel wool and destroyed the back. I hope that the Federal Government (National Park) throws the book at him for this. I feel very lucky to have walked away with this wonderful shot of this local landmark…
Also visited was the Point Reyes Lighthouse! What a wonderful subject and location. It is high on a cliff over looking the Pacific Ocean. It is full of color, depth and wonder!
So as you can see, I have LOTS of time to relax and shoot with the new Sony system. To say that it is an amazing system is an understatement of Biblical proportion! All of the lenses are flawless and gave great results!
But Wait! I have not shared my several trips to the Arboretum at the University of Santa Cruz! There were hundreds of Allen’s and Anna’s humming birds there deep into the fury of mating season! They were amazing subjects and since I did NOT bring along my hummingbird flash setup I was forced to shoot the “bird on a stick” portraits. Still, the results were stunning. ALL of these shots were taken on the Tamron 150-600mm A mount lens with the Sony A to E adapter. Yes, it did and would auto focus, but with the birds against the green vegetation it had a difficult time picking them out to focus on.
So I shifted to manual focus (yes I said manual…) with white focus peaking. To say that I was stunned at the ease of focusing with this at high speed still leaves me breathless with wonder!
The Sony manual focus with peaking is simply the BEST manual focus system that I have EVER used! It was fast and DEAD ON…
I will let the results speak for them selves…
Another good post from my friend, colleague and student, Rhonda Griscti. Her post this time is on understanding White Balance. A good read to be sure!
Why should you care about White Balance? Because a proper white balance is how we get the colors in our images to be as accurate as possible. Why would you need to get the color right in your shots? You might have noticed when examining shots after taking them that at times images can come out with an orange, blue, yellow etc look to them – despite the fact that when you were taking them the scene looked quite normal. The reason for this is that images different sources of light have a different ‘color’ (or temperature) to them. Fluorescent lighting adds a bluish cast to photos whereas tungsten (incandescent/bulbs) lights add a yellowish tinge to photos.
We don’t generally notice this difference in temperature because our eyes adjust automatically for it. So unless the temperature of the light is very extreme a white sheet of paper will generally look…
View original post 305 more words
This post is about how I create my Digital Negatives for printing in Van Dyke Brown. Before I get into the meat of the subject I need to tell you that I am a follower of Peter Mrhar’s gradient maps for creating my negatives rather than using curves. The maps will allow you to create a much more controlled negative without the issues normally seen in curves like wild spikes and twists which can really mess up your image. Peter has written a book on the subject called Easy Digital Negatives which can be purchased on Amazon for a small fee. The entire book leads up to the last chapter where he gives you an automated script that plugs into Photoshop that will create the gradient map. Read the entire book first to understand how to develop a exposure test strip and a 245 step print that his script need in order to build the map.
The basic recipe that Peter gives is:

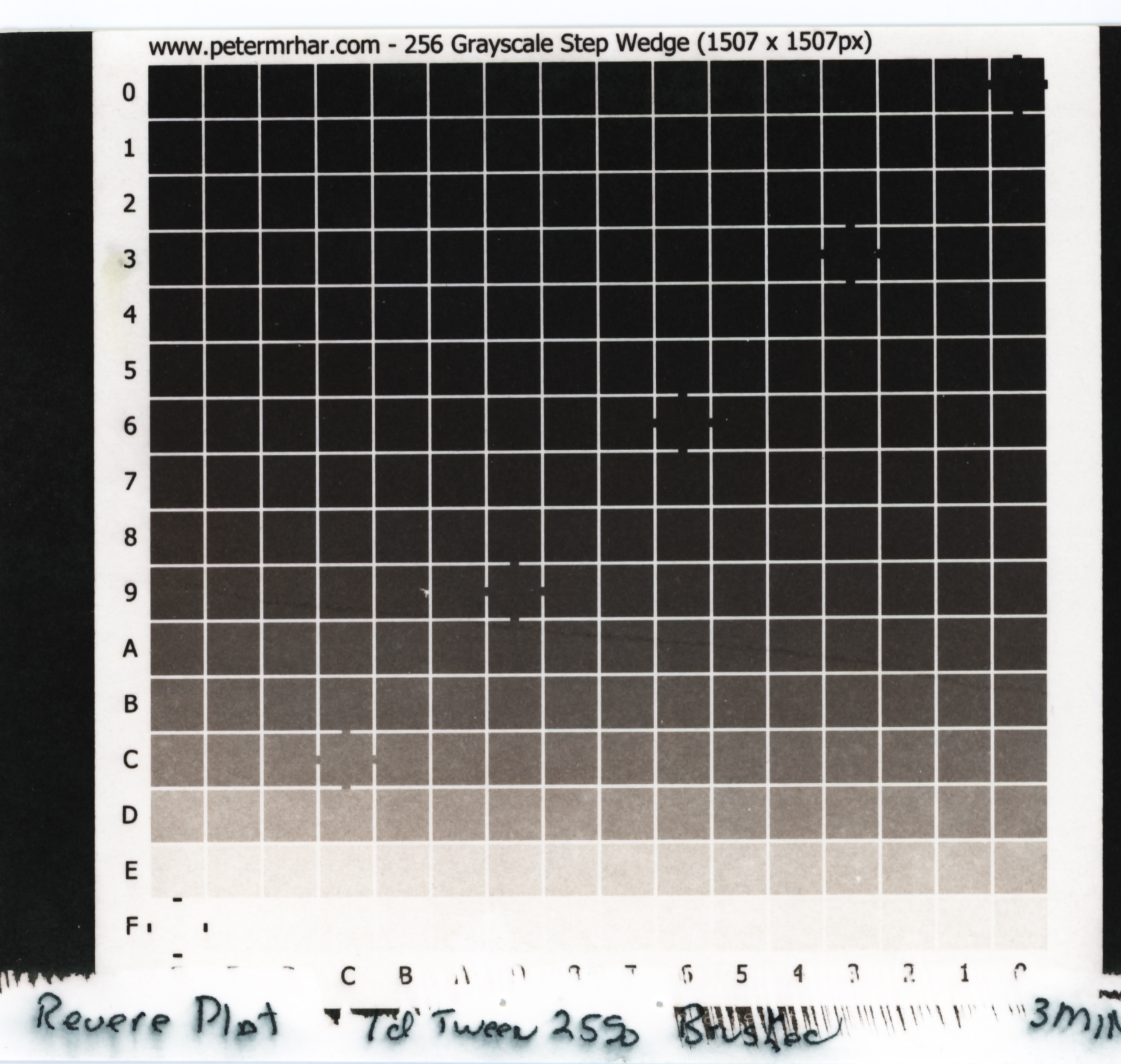

Now print your 256 step chart that Peter provides on a piece of paper treated the same as in step 1, with a UV blocking color which you will learn about below. Process and dry. Scan the resulting image according to Peter’s instructions and feed it to his script in Photoshop and it will pop out a Gradient Map for you to place in your image stack (example below).
That is all there is to it to create your gradient map (his script will also create a curve if you so desire).

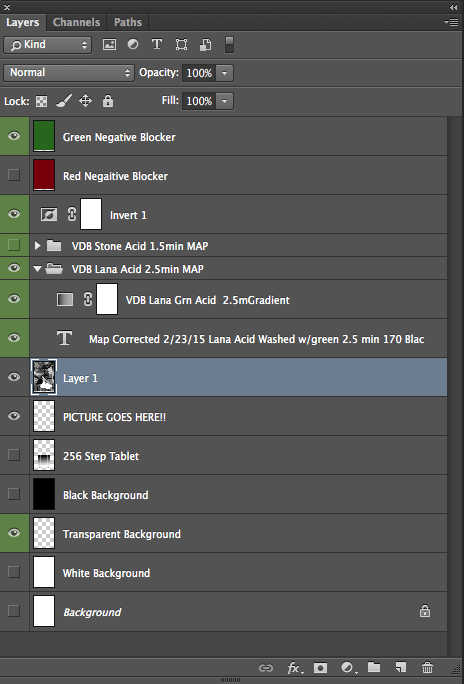

Ok, lets talk about how you put together your file to create your digital negative once your have your gradient map in hand! Below is a copy of my adjustment layers in my digital negative file.
Let’s talk a little about the UV blocking colors. It seem a little strange to use a COLOR layer when printing B&W but you need to realize that some colors are better than B&W for controlling your UV exposures! I have 2 color layers included in my image stack but there can be many others depending upon your printer, ink set and choice in negative film. For my system (Epson 7900 24 inch printer using the Image Print V9 RIP) I have found that the Green layer works much better. I am going to show you the difference below between using a B&W negative vs. the GREEN negative. Pay close attention to the density of the grasses next to the sky in both prints.
First using a B&W negative with the same gradient map…
As you can see the density of the negative especially in the grasses looks great, but when you look at the output print you can see that the grasses all turn white at the horizon and get lost!
Now let’s take a look at the negative with the GREEN UV blocking layer…
The first thing that you should notice is that the density of both the sky and the grass seems much less dense but when you look at the output print the difference is amazing!
The grasses are now full of texture and you do not loose any detail at the horizon. The exposure on both images are the same thus you have the same amount of dark areas of shade and in the tree, but the mid tones now are full of greater details. This was simply achieved by adding the color UV blocking layer.
As I talk about these technical details they may seem simple, but it did take a while for me to master them in all of their glory. The image used as an example for you is not yet to my liking. The sky is a little too dark and the shadows are too black. I have just this week created a new negative with corrections for those specific areas and will be printing this image again tomorrow!
Nothing comes easy with alternative printing. Our printing lives are full of trial and error, but once we master the basics of the digital negative the trial and error period will drop down considerably.
You can download a copy of my PSD negative stack files both here in my download link on the bottom of the right hand menu and on Facebook in the Van Dyke Brown Printing group or in the Digital Negatives for Contact Printing group. There is a download file button on the top of each group page that will take you to these files.
I hope that this has been helpful for you. If you have any questions on this process please leave a comment here or join the FB groups above and you will find a great group of people on each group who can and will assist you in your process!
Infrared photography with digital camera systems have been around for several years now and a lot of photographers have embraced this different spectrum of photography. Infrared is wildly popular in photography and fine art galleries now and my workshops are full of lots of talented photographers who desire to learn or expand their infrared skills.
The typical starting point for most infrared shooters is 720nm (standard) or 590nm (Goldie) IR conversions. We have all seen the amazing color images that these two conversions can generate. As previously discussed, we always process not only in Faux Color, but for B&W also. The B&W images are usually more accepted among the arts community though.
But did you know that with each increase in the IR Nano Meter band (the frequency goes down as the number goes up) that the contrast levels go up in B&W as well? This increase in the NM band starts to generate the most stunning, contrasty, ethereal images that have to be seen to be believed! The higher you go in the NM range also increases the white “glow” around the leaves and grass and the blue sky takes on a deep black. This effect is named the “Wood Effect” after doctor Robert Wood who discovered it 1910. What happens is that the leaves get a bloom or glow of white around them that generate that wonderful ethereal feel in the image. Take a look at image 1 which was taken at 830nm. Do you see the dark black where the blue sky is? Look at the leaves on the trees and how they take on the pure bright whites! Now compare that to 720nm image above in Image 2. The most striking difference is the gray sky rather than black, plus the leaves are grayer rather than white.
I would like to suggest that if you shoot in IR or are interested in doing so then you should consider a deep contrast IR conversion beyond 800nm. There are a lot of benefits to be found in that spectrum. This new spectrum sees ONLY in B&W, which will force you to visualize your scene in B&W.
The benefits to a Deep B&W IR conversion are:
There are several ways to have a camera converted to deep B&W above 800nm.
With either the full or dual conversions you can shoot every of the following light spectrums:
* Requires Live View capable camera
Now, Normal Visible Color simply means that your camera can take normal color images as it did from the factory! This means that you have a multi purpose camera that can take anything.
The only issue is that if you have a Full Spectrum conversion you need to stack a B+W 486 reflective IR/UV blocking filter on your lens with a LDP CC1 absorption filter to get back to good normal color.
For the Dual Spectrum conversion you only need to put the B+W 486 reflective IR/UV filter on your lens and it is back to normal color!
Disadvantages to the Full or Dual Spectrum Camera Conversion:
I have several cameras converted to above 800nm and several full spectrum and a new dual spectrum converted Fuji X100s. The images that I am getting from the Fuji with a B+W 093 830nm filter are the sharpest and most stunning deep IR images that I have ever produced! But that doesn’t mean that you need to go out and purchase that one. Any camera with live view will work great with the 830nm spectrum. Keep in mind though, that the more modern your camera is the higher the usable ISO will be!
You can contact Mark at his web site at http://www.MarkHilliardAtelier-blog.com for information on his Color & IR workshops, which he teaches with Jamie Davidson, and for his IR Post Processing DVD Tutorials!
Well, in a wild turn of events I have picked up some new camera equipment… This is a really no surprise as it is a sickness or rather addiction! But onward and upward!
I do have to tell you that I am REALLY excited over acquiring these new systems though. And unfortunately, one thing has let to another and thus a long journey has also been started into the realm of film again!
But first let me highlight the “What”!

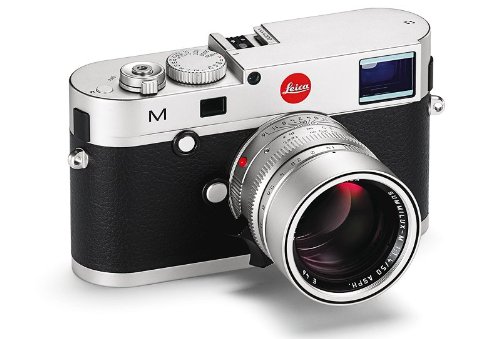

As you can see in the top image, the newest body is the new Leica M240 24 full frame 24 mega pixel body. It also has a true “live view” which allows use of all sorts of other lenses like the Leica R series that you would NOT normally be able to focus. This means everything from long telephotos to true macro (subject of the next post!). After a few months of use I can tell you that this is the BEST digital system that I have ever used! Along with it I also picked up several lenses.
First, the main lens is the Leica M 50mm f/1.4 Summalux ASPH lens in silver. This is a HEAVY lens. If attacked by a bear I could use it to beat him half to death. The lens itself has turned into my main lens that I use 60% of the time. It has a built in leans hood and takes 46mm filters. The Bokah that this lens can generate is amazing beyond description. It is extremely smooth and easy to use and generates images that are truly amazing!
The next lens is the Leica M mount 28mm f/2.8 Elmarit ASPH. This is a TINY light lens that takes 39mm filters. These smaller filters sized considerably cut the cost of purchasing top of the line B+W filters. Since the M240 camera is a full frame sensor the 28mm really is 28mm! The lens is sharp beyond words and quick to focus. I am really please with this lens and use it for landscapes and lightning photography when mounted on my Fuji X-T1 camera.
The example image for this lens below is a texture overlay. The main image was an Infrared image taken by placing a R72 (720nm) infrared filter on the lens giving a white IR image of a palm leaf, then doing a texture overlay of colored flowers.
The next lens is the Leica Macro-Elmar-M 90 mm f/4 and its macro adapter with split image view. This is a very unique lens in that it collapses for storage. By itself it is a great 90mm lens and has proven useful for mid range subjects as well as for Infrared work with the addition of a R72 IR filter. When you add its macro adapter (extension tube coupled to a viewfinder modifier) it will then give you macro capabilities down to a 1:3 image ratio! Below is an example of a macro image shot with this lens last week at Moore Farms in Lake City .
Now, I already had my two Voigtlander M mount lenses that I was using with the Fuji systems, but they are M mount!
First is the Voigtlander Heliar 75mm f/1.8 Lens. This is an amazing lens that is very fast at f/1.8. The focus is smooth and long and it works very well with M mount extension tubes for true macro work (1:1 image ratio). I do have 3 of the 10mm extension tubes for it as well as a Canon 500D closeup lens. For my really small stuff this is my goto lens. It is a little long but has a very nice clam on lens hood. While it is NOT a Leica lens it is very close in terms of quality and ease and the f/1.8 aperture gives lovely bokah!
Here then is an example of a 1:1 life-size macro shot with it!
The last lens that I am going to talk about here is the Voigtlander Ultra Wide-Heliar 12mm f/5.6 Aspherical M Mount lens. Another heavy all metal lens with remarkable focus and DOF. Since it is so wide you can almost have a DOF from right in front of the lens out to infinity! Plus 12mm is really 12mm on the camera! Given that the camera is both full frame and has a live view you can see the power of using this lens and the ease of composition and focus!
In the example image below please notice the extreme range of the depth of field!
As you can see, all of the system components are extremely high quality and easy to use giving stunning results. I like to create Long Exposure and Infrared images as well so I thought that I would share some of them with you below.
I am VERY particular in how I process my images, either color or IR it doesn’t make any difference! This comes from years of visualization, photography, a career at Eastman Kodak, endless hours of post processing and just plain being old and cranky! I look for specific compositional elements in each and every image I create then look to create a stepped series of varying contrast levels to draw the viewer into the image. This is important in my color work, but CRITICAL in my B&W images.
This post though, is specifically about B&W IR post processing. But before we actually get to that point I wish to share with you my workflow that I go through up to the point of processing it for B&W.
Assuming that our images have been edited for choice and artistic content and been processed from RAW to 16 bit TIFF…
Only when these steps are completed do I start my B&W conversion and processing. The reason for this is that the best B&W conversions are generated when we have gotten the best possible color adjustments done! The better the colors the better the B&W! This is true of both color camera or an IR camera.
As you can see from the B&W image above of the bone yard at Cape Romain here in South Carolina, the image is full of alternating contrast areas that draw the viewers eyes into the image from the bottom left corner up to the center. This was a choice made in post processing.
So remember, you will get a much better B&W image if you first post process the color version! This will give the software (Nik’s Silver EFX Pro) a greater latitude of colors and contrasts to work from rather than just converting the RAW version directly into B&W.
In Infrared photography, there are 3 main elements that we need to get an emotionally charged image:
If you can get all 3 you will get a much more powerful image, but as long as you can get at least 1 you will have more to work with to get a good image. If you find yourself in a location where none of the 3 desired elements can be found then look for repeating patterns! Look at the example below. This image is of old Rt. 66 through the west taken at the height of a world class snow storm a few years ago in 720nm IR. There is no water, clouds or plants to work with. But we have a vanishing perspective due to the repeating telephone poles plus great structure in the snow cover scrub! There is also just a hint of the sun behind the top of the first telephone pole which adds interest and change of contrast.
Now, as easy as all of this sounds, it really does take some planning and simple photoshop skills. Plus the more you practice it the better and faster you will get!
So lets take a look at our sample B&W converted per post processed B&W image below. To get to this point, you take your color image and open it in Niks Silver EFX software filter. You would then choose the recipe that you like the best from the left hand menu watching the effect on the preview image on the screen. When you find the version you like the best you would then adjust the contrast, structure and highlights/shadows to get your starting image, then accept it and drop it back into Photoshop!
This is a very nice image to be sure! But, it can be drastically improved with very little work. By selecting areas of alternating contrasts we can enhance the emotional impact of this image and draw the viewers eyes into the image giving it an almost 3 dimensional feel! Lets take a look at these areas!

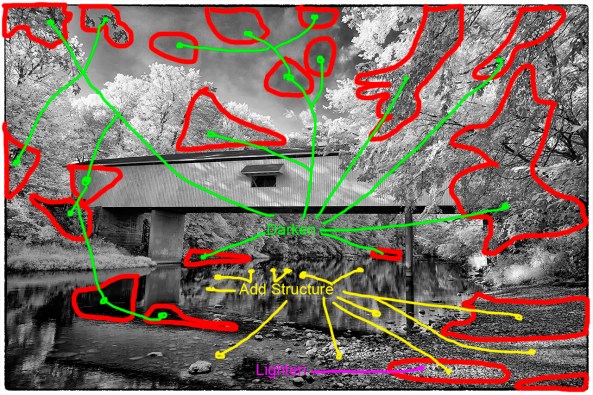

Take a close look at the image. Look for ways to give alternating areas of light and dark, low contrast and high contrast. Use these areas to create steps into your image. For the image above of the Adams Mill un processed this is how I approach it:
Looks like a puzzle doesn’t it! But is is really easy once you decide HOW you want to approach the image. We are going to use the Nik plugin filter called Viveza to accomplish all of these changes. Simply start on one edge of the image and work your way across. Nik gives you a very powerful selection and masking tool call selection points. These points pick out areas of similar color or shading.
Go back and forth, look at the differences between the 2 images. In the 2nd image, there is a tonal range of complete black to complete white. The un-edited version has a little contrast but lacks punch and it does NOT have a complete tonal range!
This looks very simple doesn’t it! Well it is!! It just requires that you pre visualize what you desire in your finished image then simply make it so.
I hope that you enjoyed this simple tutorial. If you would like an enhanced version with complete step by step instructions and screen captures please visit my BLOG at:
We have been having amazingly turbulent weather here in Pawleys Island for the last week or so. The sky has been moody and dark. Mornings filled with dense fog and the ocean surf rough… Perfect for long exposures and wild sunsets!
What better excuse then to take the Fuji X-E2 out and capture these wild and moody scenes? With my full kit of the Lee Seven 5 filters and B+W ND filters in hand I grabbed the X-E2 and the XF 55-200mm F3.5-4.8 Zoom Lens (which has kind of turned into my main carry around lens) and headed out to the beach.

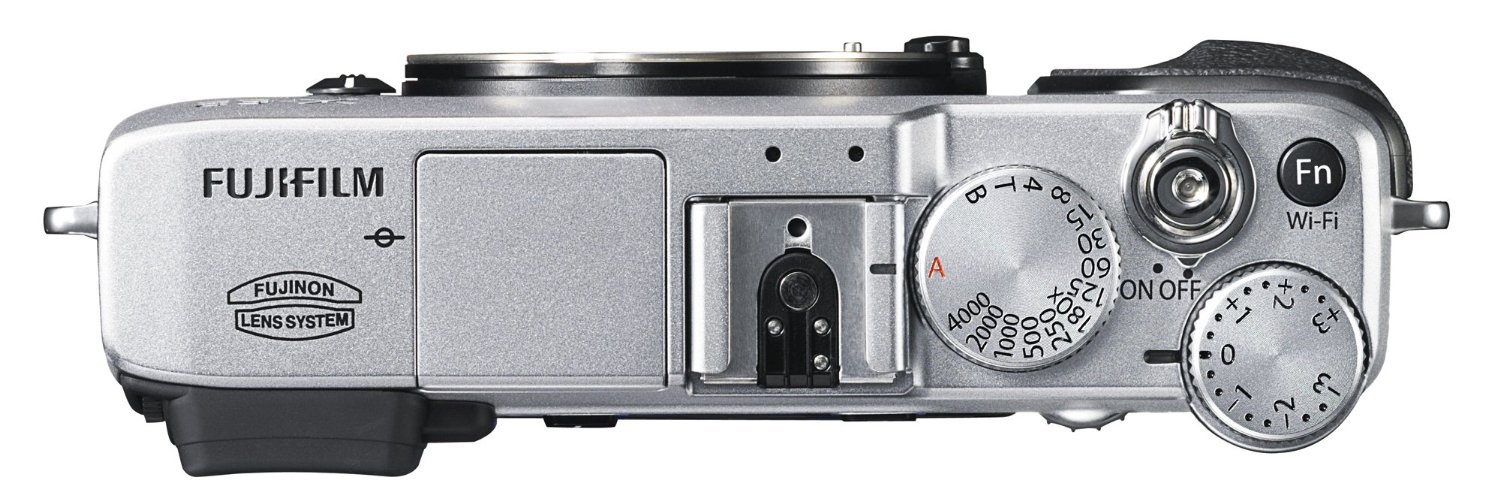

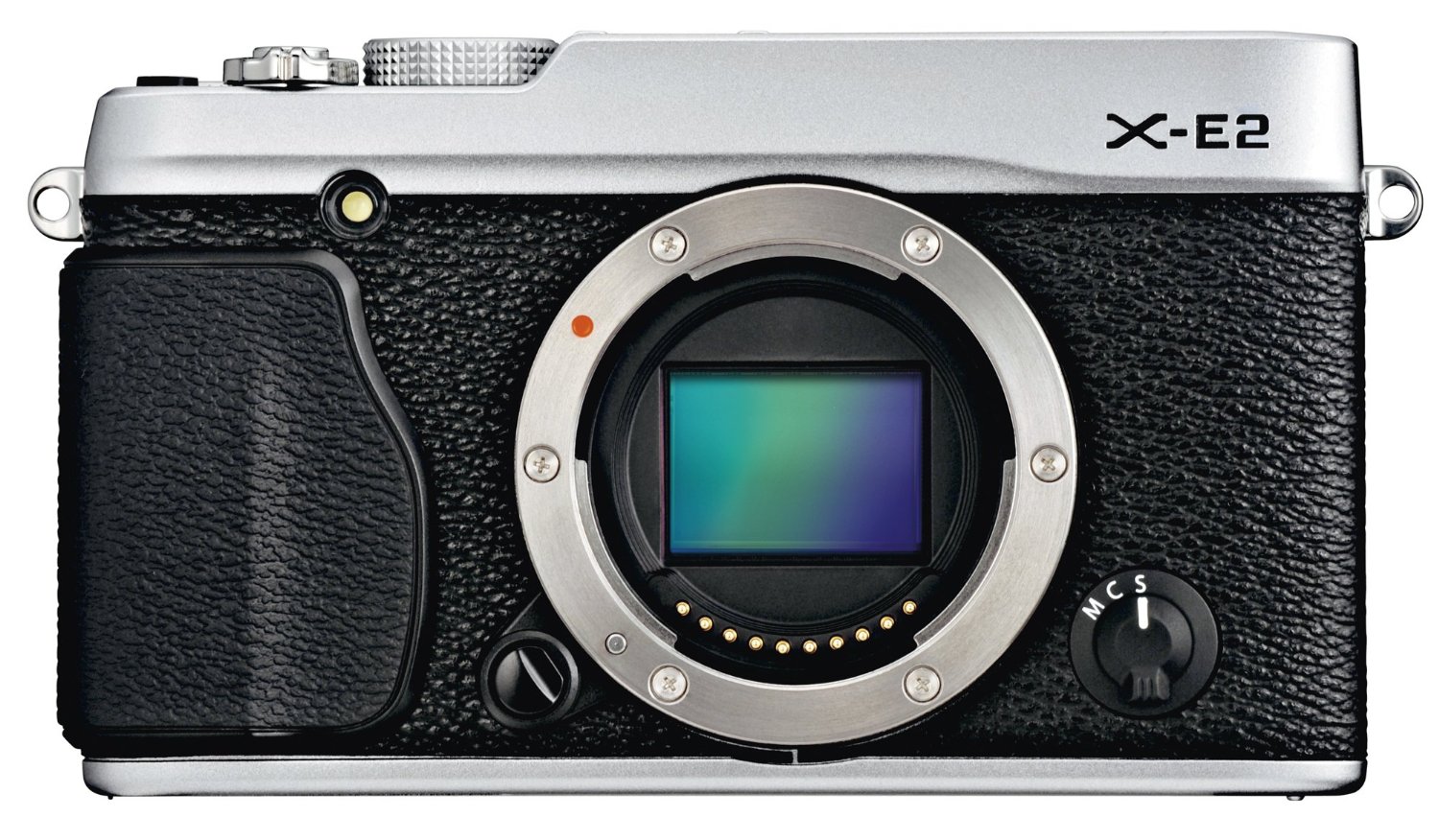

The X-E2 (in fact, the entire line of Fuji X cameras) is exceptionally adept at long exposure photography. It generates low noise exposures and has NEVER let me down. I usually shoot in the 2 to 4 minute range but once in a while will go up to 10 to 15 minutes depending upon the subject.
In todays post I am shooting between 30 seconds and 4 minutes and one of the sunset images was just a short exposure (1/13).
The setup for all of the long exposure water images was either a 6 or 10 stop B+W ND filter and the sunset had an added 3 stop soft graduated Lee filter (Seven 5 system). The sky was just too bright with the wild colors to give anything but a black foreground otherwise! I also used the Fuji RR-90 remote shutter release (but you can also use a mechanical release or a Canon RS60 E3 release).
One of the big benefits of the Fuji X system is the fact that when in the BULB mode Fuji gives you a count up timer on the LCD screen so that you can easily time your exposure. This doesn’t sound like much but when you are out in the cold and dark shooting it is a BIG DEAL! Try doing this with a Nikon 300 and you will understand!
Now, lets talk a little about your exposure metering.
Which ever way you choose you will be surprised how quickly you can get “on target” by taking just 1 exposure then adjusting! But remember. when we are spot metering either in camera or in an external meter whatever spot you are metering on will give an exposure for Zone 5 or 18% grey. It is up to you to adjust the exposure up or down to place it into the proper Zone! What I like to meter on is the sky just above the horizon then adjust it up about 1 stop (move from Zone 5 to Zone 6).
I ALWAYS have the Long Exposure Noise Reduction turned on in my cameras. This means that you will double your exposure time. After you take your image, the camera will close the shutter and take a 2nd one with the same shutter speed. This is called Dark Frame Noise Reduction and the camera will look for bright pixels in the 2nd shot and subtract them from the first. This is very worthwhile and will allow you to create much better output images but cut down the amount of time you have to stand there and shoot!
As I said earlier, the mornings have been very foggy so lets start off with several examples of this type of photography. Of course, you must remember to increase the exposure so that the fog is not a DARK GREY, these have been adjusted from Zone 5 to Zone 6.5 or 1 1/2 stops!
Ok, lets move on to the evening. The intent here was simple long exposures to smooth out the surf and remove the surfers (yes I hate surfers as they are always in your shot and don’t care!). For these type of images you really need to start at 30 seconds and move up. If the sky is within 3 stops of the foreground then you do not need to add a graduated ND on the sky.
There is something very soothing about well done long exposures of the ocean. They really are not difficult to do and the results are worth the investment in time and discomfort (did I mention that it is winter here and I was standing on the beach in the wind?).
As you can see, the Fuji X-E2 excels in all areas of photography. It has proven itself to be a serious tool to photographers who understand its capabilities and master it functionality!
I have to tell you that I am REALLY a Fuji fan. I have the following Fuji bodies:
I also have ALL of the lenses but 2!
I moved to Fuji after a long search for a small light weight camera system after loosing 80% use of both hands and arms. I went through ALL of the micro 4/3 systems (and even kept 2!). I sold $40,000 in Canon bodies and L glass and have NEVER looked back!
In the Fuji, not only have I found perfections but being a range finder styled system it is like going home to mom!
I have a X100s that I use for most of my walk around work, it is just so tiny and generates amazing images. So when Fuji announced the X-E2 with the same sensor and with even more upgrades I ordered one from Amazon. Much to my amazement it shipped a week later! I have had it in hand now for about 2 weeks and just yesterday took it out to a local fishing port for a bit of creative work. I love the upgrades and how fast this camera is. It even passes the X100s in ability. I originally purchased the X-E1 in order to take advantage of its electronic remote shutter release. It enables me to hook it up to devices like a lightning trigger and my water drop collision system. The X-E1 did a great job with these devices and I expect no less with the X-E2 but that is for another day.
Yesterday I took it out to shoot shrimp boats in North Carolina and have to tell you that the camera just blew me away. It is such a major upgrade over the X-E1 that I cannot believe that they came from the same company! The controls are CRISP, the knobs just snap from position to position with no play and they stay where you put them. The larger LCD is nice but the faster EVF is a sight to behold. I dressed the camera in a RRS L bracket with grip and put on a nice soft release. Physically except for new buttons and placement the camera is identical to the X-E1. One MAJOR improvement is the addition of 3 stops of EV adjustment instead of the normal 2 that Fuji has provided in the past.
All in all I am really happy with this upgrade. I will keep the X-E1 and convert it to 800nm IR in the near future. There is no sense in letting that viable and great camera go to waste!
Next I put the camera into the JPG mode and shot color & B&W images in camera. The results speak for them selves!
This posting was never meant to be a review, rather a statement of its impact upon me with sample images!
I have started getting feedback and comments on the new IR/Color Video Tutorial. As they arrive I will share them here in this post with you. I am very excited over these. So far there are about 100 shipped videos out there!
The cost is $29.95 plus shipping which will automatically be added when you order.
All prices are in USD
I would like to thank those who have taken the time to send feedback and comments! It means a lot to me and will help improve on the next Video Tutorial that I put together!
The majority of the video is screen capture taking you through the post processing workflow button by button, click by click. All of the major RAW converters have their own separate video and you will learn about all 3 which will enable you to make intelligent decisions on which one is for you then be able to run it!
This is an in-depth tutorial and will give you the knowledge and recipe to take your own images from one end of the process to the other without pulling your hair out in frustration!
The cost of the video for US customers is $29.95 plus $5.95 shipping which will be automatically added when you order.
All Prices are USD
