Category Faux Color Infrared Photography

Apr 13 2019

CLiR Infrared Post Processing Photoshop Panel, 1st New IR Software In Years!


The New CLiR Infrared Processing System and Photoshop panel!



CLiR Aerochrome Processed



Working with the new CLiR Infrared Post Processing Panel in PS using my standard test image of the Covered Bridge!

This was shot on a XPro1 converted by Kolari to 720nm

I have to tell you that the power of these editing tools are beyond amazing! They are easy for beginners and the advanced functions are awesome!

Will be teaching the CLiR process in all of my workshops with Jamie Konarski Davidson as well as in the NECCC Photography Conference in July!

These 3 images edited in CLiR took me about 15 min to complete all three, one in my normal fashion, one emulating Aerochrome (TOP) and another normal but textured! You folks are going to love using this software.

CLiR My Normal Processing


I have a 20% discount code hilliard20 that will give you a 20% discount or you can direct order with it applied at:


For the NECCC conference I will have a slightly larger discount code for my Infrared Sessions!

CLiR Normal Processing with Texture overlay


If you are interested in the new IR Chrome filter with my discount you can purchase it from Kolari at:
https://kolarivision.com/?ref=52
Had you heard of this new IR system?   It has been a LONG time since new IR editing software has come out to the market.  I am still exploring the capabilities of this package but I am super impressed.  It does not matter if you are new or experienced in post processing IR images you will quickly learn to navigate the panel.  This is possible due to the great video tutorials that come with the panel!

Let me know your thoughts on this when you have tried it or watched their online intro video!

Apr 7 2019

Presenting at the NECCC Photography Conference


I will be presenting at this years NECCC Photographic Conference  from July 12 to the 14 at the University of Massachusetts.  Please consider attending if you are in the area!

I have posted a short video on what the session will be covering that my dog and I made today (she says to watch it to the very end)!

Here is a link to NECCC: http://necccphotoconference.org/

Here is a link to Kolari :http://www.kolarivision.com

Here is a link to CLiR: https://f64elite.com/hilliard20



Apr 21 2016

Amazing New AR Coated IR Filters from KolariVision.com


Kolari Vision introduces a NEW Anti Reflective IR coating for their conversion filters!

Fuji X100s, 850nm Kolari AR conversion - Under Foley Pier

Fuji X100s, 850nm Kolari AR conversion – Under Foley Pier

I LOVE shooting IR and have a long history with it in both Film and Digital.   I have had over 25 conversions from ALL of the big conversion companies around the country!   But, once in a while I would get a camera that no mater how hard I tried, I will get a hot spot with it or the lenses I used.   You learn how to deal with this by selective use of the aperture but once in a while you would just not be able to get around the problem and loose the shot….

Fuji X100s, 850nm Kolari AR conversion - Shrimp Boat

Fuji X100s, 850nm Kolari AR conversion – Shrimp Boat

Well about 3 weeks ago Ilija from Kolari (http://www.kolarivision.com ) sent me a note telling me about a new coating process for his conversion filters.   I have a long history with Kolari, LDP and Lifepixel but I have never heard of this till now.  Ilija offered to do a free conversion with this newl IR AR coating for me in return for evaluating it in the real shooting world! So I told him that I would send the X100s off as a test camera and that I needed it back fast in order to allow others to play with the camera also!   Off it went on Tuesday.  Imagine my surprise when I got it back in hand the following Wednesday!

Here is what Kolari says about this new AR IR coating:

  • Uncoated glass has a reflection of around 4-5% at all wavelengths, and we found that this reflection off the sensor filter was bouncing off the glass and reflecting back from the lens housing and aperture blades to cause the hotspots.  We developed this anti-reflective coating that is centered around the IR wavelengths that cause hotspots, and reduced the 5% reflection down to <0.5% (see the attached graph for reflection % by wavelength scan, and the picture of the IR filters for the visual difference of IR reflection).
Unknown

  • The coating does not reduce visible light reflections as much, and does not reduce blue reflections at all. This gives the glass we use a blue shine, since that is the only range that is fully reflected still (see picture of black filters).
AR coating test on Visible Light

AR coating test on Visible Light

AR coating tests on BLUE light

AR coating tests on BLUE light

  • I am getting ready with a new website which I hope to launch in 1-2 weeks, so I have not put the coated version of the conversions online yet, but they will be offered on our Full spectrum, two spectrum, 590, 665, 720, 850, and Blue IR/NDVI conversions. There will be a $50 optional upgrade on all of our conversions at this point.



  • I plan on offering only the coated version eventually, but the batch runs are expensive and I cannot coat our full inventory at once. I’m not sure if you are aware, but we stock custom made custom thickness filters for all our camera/filter combinations so that each conversion gets a piece of glass that maintains the original optical distance (refractive index x physical thickness) as closely as possible, which changes for each filter material. Other companies use a few general size pieces of glass, glue them directly to each sensor, and calibrate the focus for an arbitrary lens, which reduces what they have in inventory. Our design choice means that we have around 200 unique pieces of glass in inventory for DSLR and mirrorless cameras, and another 200 for point and shoot models, so you can imagine the challenge in getting them all coated. – Ilija

Fuji X100s, 850nm Kolari AR conversion - Thru The Door

Fuji X100s, 850nm Kolari AR conversion – Thru The Door

So as you can see they are up and almost ready to start filling orders for these new filters.

Fuji X100s, 850nm Kolari AR conversion - McClellanville Fleet

Fuji X100s, 850nm Kolari AR conversion – McClellanville Fleet

I have to tell you that with my test conversion on the Fuji X100s to AR 850nm that ALL of my hot spot issues simply went away.  This camera has always had a tendency for IR hot spots.   I have converted, tried and sold so many IR systems in the past that I have lost count.  I could not, would not sell this one as it is one of my most prized IR systems.  To say that I am pleased with the results of the Kolari IR AR Coating is the understatement of the year!

Remember, if you decide to order from Kolari, give them my name for a $15 discount!



Jul 7 2014

Fuji X100s 830nm Infrared and Long Exposures


It just keeps getting better….



Pawleys Pier, 830nm 300 seconds, f/16, ISO 200

Pawleys Pier, 830nm 300 seconds, f/16, ISO 200, 8 stops of ND with the 10 stop B+W 110 ND filter

 Normally you do not see much in the way of Long Exposure  photography in the Infrared world.  The reason is that it is necessary to use Neutral Density filters (ND) to cut down the amount of light reaching the sensor to enable very long shutter speeds.  The infrared spectrum will reduce the the effective value of any ND filter that you attach to your lens from between 20% to 30%.  Have you ever taken a photograph of a person wearing a pair of sunglasses in infrared and noticed that they are totally clear?  This is the effect that I am talking about.   The general rule is that the cheaper filters suffer much greater loss in infrared and the variable ND filters do not work well at all (yes, even the expensive Singh Ray).

B+W 110 10 Stop ND

B+W 110 10 Stop ND

Should you desire to pursue this style of photography I strongly suggest that you purchase and use B+W ND filters which loose around 20%.  I am also told that Lee filters do not loose too much effect as well but I have not yet tested them even though I own them all.

The B+W ND filters display the ND values on the side of the ring, but the easiest way to understand them is to simply look at the 3 digit number.

  • 110 equals 10 stops
  • 106 equals 6 stops
  • 103 equals 3 stops
  • 102 equals 2 stops
  • 101 equals 1 stop
Fuji X100s

Fuji X100s

I am using the Fuji X100s for the images in this post.  It is a 16 mpix camera that is a rangefinder styled system.  I includes an internal, drop down 3 stop nd filter that actually gives about 2 stops of reduction when used in the infrared spectrum.  I had the camera recently converted via Kolari Vision, http://www.kolarivision.com to what they call the Dual Spectrum conversion.  This is where the internal UV/IR blocking filter is removed and a strong UV filter is put in its place.  This gives you the same capabilities as any Full Spectrum conversion except that it will not work with any IR or UV filter that combines multiple spectrums that include UV.  This means that the 047b in camera Faux Color or Super Blue filter and the UG1 UV/IR dual band filter will Not work.  All of the others work fine from 590nm up!

Plus you can convert the camera back to normal visible color with the addition of a filter on the lens to block UV and IR.  With the Full Spectrum filter you need to stack the B+W 486 reflective UV/IR blocking filter with the LDP http://maxmax.com  CC1 absorption filter.   With the Dual Spectrum conversion you need only add the B+W 486!

So, I have ALL of the normal IR filters sized for 49mm which is what the X100s uses including the B+W 486.  I am using the B+W 093 820nm IR filter for this camera almost 100% of the time though.

Another nice thing about the X100s is the fact that it has aperture priority mode with a shutter speed up to 30 seconds and a BULB MODE that goes up to 60 minutes!   Where the X100 really excels is the fact that is gives a count up timer in the viewfinder or on the back LCD panel for timing your bulb exposure!

The camera is so small and easy to handle that it is a pleasure to work with and as you can see, the images are stunningly sharp!

I will be posting more long exposure images here in the future and discussing the various post processing recipes with you.  Now, one last image.  Here is the same shot with only the 3 stop internal filter engaged in the X100s.  The shutter speed at ISO 200 and f/16 was 1/6 second.  Not nearly long enough to slow the water down or blur the cloud movement but it would likely work for slowing down the moving water in waterfalls!

Pawleys Pier, 830nm IR, 3 stop internal ND, 1 second, f/16, ISO 200

Pawleys Pier, 830nm IR, 3 stop internal ND, 1 second, f/16, ISO 200

If any of you all out there shooting in Infrared work in long exposures please drop me a line or comment and we can share data about the various ND failures and successes!

You can also consider signing up for one of my (along with  Jamie Davidson) Infrared/Color Workshops.  We take you to amazing locations in the South East Coastal area for world class photography and INTENSE post processing classroom training!  You will find posts here talking about each workshop as it approaches!

Jul 5 2014

Going to the Dark Side: 830nm Infrared and the Fuji X100s


830nm Infrared Conversion on the Fuji X100s



Oak Reflections, 830nm

Image 1:  Oak Reflections, 830nm



Infrared photography with digital camera systems have been around for several years now and a lot of photographers have embraced this different spectrum of photography.  Infrared is wildly popular in photography and fine art galleries now and my workshops are full of lots of talented photographers who desire to learn or expand their infrared skills.

Pawleys Marsh, 830nm X100s

Pawleys Marsh, 830nm X100s

The typical starting point for most infrared shooters is 720nm (standard) or 590nm (Goldie) IR conversions. We have all seen the amazing color images that these two conversions can generate. As previously discussed, we always process not only in Faux Color, but for B&W also. The B&W images are usually more accepted among the arts community though.

Pawleys Marsh, 720nm

Image 3:  Pawleys Marsh, 720nm



But did you know that with each increase in the IR Nano Meter band (the frequency goes down as the number goes up) that the contrast levels go up in B&W as well? This increase in the NM band starts to generate the most stunning, contrasty, ethereal images that have to be seen to be believed! The higher you go in the NM range also increases the white “glow” around the leaves and grass and the blue sky takes on a deep black. This effect is named the “Wood Effect” after doctor Robert Wood who discovered it 1910. What happens is that the leaves get a bloom or glow of white around them that generate that wonderful ethereal feel in the image. Take a look at image 1 which was taken at 830nm. Do you see the dark black where the blue sky is? Look at the leaves on the trees and how they take on the pure bright whites! Now compare that to 720nm image above in Image 2. The most striking difference is the gray sky rather than black, plus the leaves are grayer rather than white.

Shrimp Boat at 830nm

Image 3: Shrimp Boat at 830nm



I would like to suggest that if you shoot in IR or are interested in doing so then you should consider a deep contrast IR conversion beyond 800nm. There are a lot of benefits to be found in that spectrum. This new spectrum sees ONLY in B&W, which will force you to visualize your scene in B&W.



The benefits to a Deep B&W IR conversion are:

  • Extremely sharp images.
  • Wood Effect bloom on plant leaves.
  • Dark moody skies.
  • Only works in B&W
  • Post processing is easy and quick using Nik Viveza and Silver EFX for texturing and contrasts. Photoshop CC, Elements or Lightroom, they all work for Deep B&W IR!
  • White Balance is easy.



Mabry Mill, 830nm

Image 4:  Mabry Mill, 830nm

There are several ways to have a camera converted to deep B&W above 800nm.

  1. The easiest is to simply take ANY digital and have it converted by removing the internal UV/IR blocking filter and replacing it with a 800nm, 830nm or a 850nm internal filter. With this type of conversion you can use any digital camera type or style because only the sensor will see the infrared light and you will either see the scene via the optical path or via a live view from the sensor. Typically, this type of conversion should cost around $300 to $350 thru any of the normal conversion companies.
  2. If you are shooting a Full Spectrum or Dual Spectrum conversion then you can purchase and attach a B+W 093 830nm filter to your camera lens! This filter blocks ALL visible light so you MUST have a camera with a live view only to use this otherwise you will never be able to see thru the optical path to focus and compose. The Full Spectrum camera is one that has had the internal UV/IR blocking filter removed and replaced with clear glass and the Dual Spectrum conversion is where the internal UV/IR blocking filter is removed and replaced with a strong UV filter.
Rock Run Mill, 830nm

Image 5:  Rock Run Mill, 830nm



With either the full or dual conversions you can shoot every of the following light spectrums:

  • Ultra Violet                                               Full Spectrum *
  • UG1 UV & IR                                            Full Spectrum *
  • 047b In Camera Faux Color                  Full Spectrum *
  • 530nm Faux Color                                  Full & Dual Spectrum
  • 590nm Super Color                                Full & Dual Spectrum
  • 630nm Pinkie Faux Color                     Full & Dual Spectrum
  • 665nm Enhanced Color                        Full & Dual Spectrum
  • 720nm Standard                                    Full & Dual Spectrum *
  • 800nm B&W                                          Full & Dual Spectrum *
  • 830nm Deep B&W                                Full & Dual Spectrum *
  • Normal Visible Color                            Full & Dual Spectrum

* Requires Live View capable camera



Now, Normal Visible Color simply means that your camera can take normal color images as it did from the factory! This means that you have a multi purpose camera that can take anything.

The only issue is that if you have a Full Spectrum conversion you need to stack a B+W 486 reflective IR/UV blocking filter on your lens with a LDP CC1 absorption filter to get back to good normal color.

For the Dual Spectrum conversion you only need to put the B+W 486 reflective IR/UV filter on your lens and it is back to normal color!

Disadvantages to the Full or Dual Spectrum Camera Conversion:

  • More expensive to convert.
  • External filters for each of our lens sizes.
  • Color filters (530 – 665nm) are not expensive but the B+W 093, B+W 486 and the LDP CC1 filters are VERY expensive.
  • Your camera MUST have a live view mode to focus and compose.



Charlotte Marie, 830nm X100s

Image 6:  Charlotte Marie, 830nm X100s

 I have several cameras converted to above 800nm and several full spectrum and a new dual spectrum converted Fuji X100s. The images that I am getting from the Fuji with a B+W 093 830nm filter are the sharpest and most stunning deep IR images that I have ever produced! But that doesn’t mean that you need to go out and purchase that one. Any camera with live view will work great with the 830nm spectrum. Keep in mind though, that the more modern your camera is the higher the usable ISO will be!

You can contact Mark at his web site at http://www.MarkHilliardAtelier-blog.com for information on his Color & IR workshops, which he teaches with Jamie Davidson, and for his IR Post Processing DVD Tutorials!

Fuga City, 830nm, Georgetown, SC

Fuga City, 830nm, Georgetown, SC



May 3 2014

Leica M240 Digital..


Oh, No… Another Camera System…

Leica M240 24 mpx Digital

Leica M240 24 mpx Digital

Well, in a wild turn of events I have picked up some new camera equipment… This is a really no surprise as it is a sickness or rather addiction!   But onward and upward!

I do have to tell you that I am REALLY excited over acquiring these new systems though.   And unfortunately, one thing has let to another and thus a long journey has also been started into the realm of film again!

But first let me highlight the “What”!

As you can see in the top image, the newest body is the new Leica M240 24 full frame 24 mega pixel body.  It also has a true “live view” which allows use of all sorts of other lenses like the Leica R series that you would NOT normally be able to focus.  This means everything from long telephotos to true macro (subject of the next post!). After a few months of use I can tell you that this is the BEST digital system that I have ever used!  Along with it I also picked up several lenses.

Leica 50mm Summalux ASPH f/1.4

Leica 50mm Summalux ASPH f/1.4

First, the main lens is the Leica M 50mm f/1.4 Summalux ASPH lens in silver.  This is a HEAVY lens.  If attacked by a bear I could use it to beat him half to death.  The lens itself has turned into my main lens that I use 60% of the time. It has a built in leans hood and takes 46mm filters.  The Bokah that this lens can generate is amazing beyond description. It is extremely smooth and easy to use and generates images that are truly amazing!

Tulip at f/1.4, Leica 50mm Summalux ASPH

Tulip at f/1.4, Leica M240 w/ Leica 50mm Summalux ASPH



Leica 28mm Elmarit ASPH

Leica 28mm Elmarit ASPH

The next lens is the Leica M mount 28mm f/2.8 Elmarit ASPH.  This is a TINY light lens that takes 39mm filters.  These smaller filters sized considerably cut the cost of purchasing top of the line B+W filters.  Since the M240 camera is a full frame sensor the 28mm really is 28mm! The lens is sharp beyond words and quick to focus.  I am really please with this lens and use it for landscapes and lightning photography when mounted on my Fuji X-T1 camera.

The example image for this lens below is a texture overlay.  The main image was an Infrared image taken by placing a R72 (720nm) infrared filter on the lens giving a white IR image of a palm leaf, then doing a texture overlay of colored flowers.



M240-1916-Palm Overlay-2014 in both 720nm Infrared and Color

M240-1916-Palm Overlay-2014 in both 720nm Infrared and Color



Leica Macro-Elmar-M 90 mm f/4

Leica Macro-Elmar-M 90 mm f/4

The next lens is the Leica Macro-Elmar-M 90 mm f/4 and its macro adapter with split image view.  This is a very unique lens in that it collapses for storage.  By itself it is a great 90mm lens and has proven useful for mid range subjects as well as for Infrared work with the addition of a R72 IR filter.  When you add its macro adapter (extension tube coupled to a viewfinder modifier) it will then give you macro capabilities down to a 1:3 image ratio!  Below is an example of a macro image shot with this lens last week at Moore Farms in Lake City .

Leica Macro-Elmar-M 90 mm f/4

Leica Macro-Elmar-M 90 mm f/4

Now, I already had my two Voigtlander M mount lenses that I was using with the Fuji systems, but they are M mount!

Voigtlander 75mm f/1.8

Voigtlander 75mm f/1.8

First is the Voigtlander Heliar 75mm f/1.8 Lens.  This is an amazing lens that is very fast at f/1.8. The focus is smooth and long and it works very well with M mount extension tubes for true macro work (1:1 image ratio).  I do have 3 of the 10mm extension tubes for it as well as a Canon 500D closeup lens.  For my really small stuff this is my goto lens.  It is a little long but has a very nice clam on lens hood.  While it is NOT a Leica lens it is very close in terms of quality and ease and the f/1.8 aperture gives lovely bokah!

Here then is an example of a 1:1 life-size macro shot with it!

Green Dots...

Green Dots…

Voigtlander 12mm Ultra Wide Hellar

Voigtlander 12mm Ultra Wide Hellar

The last lens that I am going to talk about here is the Voigtlander Ultra Wide-Heliar 12mm f/5.6 Aspherical M Mount lens.  Another heavy all metal lens with remarkable focus and DOF.  Since it is so wide you can almost have a DOF from right in front of the lens out to infinity!  Plus 12mm is really 12mm on the camera!  Given that the camera is both full frame and has a live view you can see the power of using this lens and the ease of composition and focus!

In the example image below please notice the extreme range of the depth of field!

Stormy Seas, down low and dirty... Voigtlander 12mm

Stormy Seas, down low and dirty… Voigtlander 12mm



As you can see, all of the system components are extremely high quality and easy to use giving stunning results.  I like to create Long Exposure and Infrared images as well so I thought that I would share some of them with you below.

M240-BW 59s16ND PI Pier-0148-2014

Pier, Leica M240 60 second exposure

M240 w/ R72 IR Filter

M240 w/ R72 IR Filter

Leica M240 w/ 28mm Elmarit,

Leica M240 w/ 28mm Elmarit

6 Shot HDR, Leica M240

6 Shot HDR, Leica M240

Blue Hour in B&W, Leica M240, 60 second exposure

Blue Hour in B&W, Leica M240, 60 second exposure

M240-1109-60 s PI LE-2014

Low Tide, Leica M240, 45 second exposure



I hope that you enjoyed this post.  I will have several more shortly in the future highlighting more of this system as well as some new FILM work!!

Stay Tuned!



Nov 16 2013

Video Workshop Customer Comments & Feedback!


Customer Comments on the Color & Infrared Post Processing From Beginning To End Video Workshop

IR Post Processing in Color and B&W

IR Post Processing in Color and B&W

I have started getting feedback and comments on the new IR/Color Video Tutorial.  As they arrive I will share them here in this post with you.  I am very excited over these.  So far there are about 100 shipped videos out there!

TO ORDER THE DVD SET:

US  Orders CLICK    HERE

The cost is $29.95 plus shipping which will automatically be added when you order.

___________________________________________

INTERNATIONAL ORDERS:

Pay via Paypal using the payee address:

ellen@thelensworkgallery.com

International Charges

  • England: DVD SET $29.95 SHIPPING $25.00
  • France: DVD SET $29.95 SHIPPING $25.00
  • Hong Kong: DVD SET $29.95 SHIPPING $25.00
  • Canada: DVD SET $29.95 SHIPPING $22.00

All prices are in USD

___________________________________________

________________________________________________________

I attempted IR several years ago and was totally frustrated when it came to post processing.  Despite enrolling in an online course and spending hundreds of dollars on IR books, it was a hit and miss proposition in getting any decent images. Everyone said the same  thing – “swap your red & blue channels in Photoshop”.  Sorry, that doesn’t work all of the time.
Everything changed after taking Mark’s IR workshop.  Now it’s even easier to learn IR though this wonderful DVD set.  Get your White Balance right in the beginning, watch your red channel in your histogram, then follow Mark’s IR post processing methods.  He makes it that simple.
 Mark is truly a master!

________________________________________________________

Mark, I demand my money back on the IR & Color Post Processing Video tutorial ! How dare you sell DVD of that quality for $30 when it is easily worth 3 times that amount!  Mark – this was the best training DVD I ever saw.  You covered everything perfectly.  I watched it twice yesterday and intend to watch it again today.  You covered everything perfectly. You are truly a master!  Thanks

________________________________________________________

The DVD arrived today, thank you. The cover, case, packaging all looks great: very professional.  Will delve into it while traveling next week.

________________________________________________________

I really like your suggested folder structure, of leaving the original RAW files untouched, then having a separate Develop folder, for work in progress images, and another Archival folder for final, processed images. I’ve spent the past 5 years processing my original RAW files. Goodness know what damage I’ve done. Your system is much smarter. Thank you!

________________________________________________________

I have Ingestamatic working reasonably reliably now and am coming to appreciate its utility in naming files and organizing sub-folders. It’s certainly smarter than any other uploading programs I’ve used.

________________________________________________________

I love my videos!

________________________________________________________

I would like to thank those who have taken the time to send feedback and comments!  It means a lot to me and will help improve on the next Video Tutorial that I put together!

Please keep them coming!

Nov 12 2013

UPDATED: IR & COLOR POST PROCESSING VIDEO TUTORIAL!! INTERNATIONAL SHIPPING


UPDATED: Color & Infrared Post Processing From Beginning To End INTERNATIONAL SHIPPING!

2 – 1/2 hour video series on two DVDs by

Master Photographer Mark Hilliard

DVD OUTSIDE LABEL

DVD OUTSIDE LABEL

  1. This covers image ingestion using Ingestimatic for both Mac & Windows
  2. Raw conversion using Adobe ACR – Capture 1 Pro and Capture 1 Express
  3. RAW Library Setup
  4. Backup Strategies
  5. Intelligent IR channel swap using the Khromagraphy PS Plugin Action
  6. Post Processing Color, Infrared and B&W using the Nik filter set in Photoshop.
  7. Ideas on creating intense high impact images.

The majority of the video is screen capture taking you through the post processing workflow button by button, click by click.  All of the major RAW converters have their own separate video and you will learn about all 3 which will enable you to make intelligent decisions on which one is for you then be able to run it!

This is an in-depth tutorial and will give you the knowledge and recipe to take your own images from one end of the process to the other without pulling your hair out in frustration!

TO ORDER THE DVD SET:

US  Orders CLICK    HERE

The cost of the video for US customers is $29.95 plus $5.95 shipping which will be automatically added when you order.

___________________________________________

INTERNATIONAL ORDERS:

Pay via Paypal using the payee address:

ellen@thelensworkgallery.com

International Charges

  • England: DVD SET $29.95 SHIPPING $25.00
  • France: DVD SET $29.95 SHIPPING $25.00
  • Hong Kong: DVD SET $29.95 SHIPPING $25.00
  • Canada: DVD SET $29.95 SHIPPING $22.00

All Prices are USD

___________________________________________



If you would like to read a little feedback from my students please click   HERE  and   HERE.

Video Course Inside

Video Course Inside

Jun 14 2013

Fuji 55-200 mm on a 720nm IR converted X Pro 1


Finally, a LONG X Lens for the Fuji Family!

Pawleys Marsh, Fuji X Pro 1 720nm IR conversion w/ the new 55-200mm lens.

Pawleys Marsh, Fuji X Pro 1 720nm IR conversion w/ the new 55-200mm lens.

Fuji X 55-200mm

Fuji X 55-200mm

Yes, the new Fuji 55-200mm lens arrived for my fuji camera systems!  I am currently shooting with a color X-E1, a color X Pro 1 and a IR converted (720nm) X Pro 1.   I know how well the 55-200 works on the color bodies but what I really needed to know how did it work with the IR system!  Would it give hot spots as so many of the Fuji lenses do?  This post is the report of my findings.  The final verdict is that it works very well and as long as you do not go higher than f/16 there are no hot spots to worry about at any zoom range! To me this is a really big deal.

So far only the 14mm and 35mm Fuji lenses are usable in infrared. So the addition of another lens really helps.

I am going to give you some examples of how this lens actually does at both the wide and long ends of the zoom range wide open and closed down so that you can get a feel of the usable Infrared range that you can use.  Next week I will do a posting using the lens for color work only.

Pawleys Marsh, Fuji X Pro 1 720nm IR conversion w/ the new 55-200mm lens.

Pawleys Marsh, Fuji X Pro 1 720nm IR conversion w/ the new 55-200mm lens.

OK, let’s take a look at the good and bad of the 55-200 in IR, the Wide end:

55-200mm @ 55mm, f/23.5 No hot spot

55-200mm @ 55mm, f/23.5 No hot spot

55-200mm @ 55mm, f/11 Small hot spot

55-200mm @ 55mm, f/11 Small hot spot

55-200mm @ 55mm, f/22 Bad hot spot

55-200mm @ 55mm, f/22 Bad hot spot

As you can see as you get to f/11 we start to develop a small hot spot, but nothing that cannot be fixed.  Above f/11 the lens becomes unusable at the wide end.



Now, let’s take a look at the long end of the zoom range:



55-200mm @ 200mm, f/11 Bad hot spot, NO HOT SPOT

55-200mm @ 200mm, f/11 Bad hot spot, NO HOT SPOT

55-200mm @ 200mm, f/4.8 Bad hot spot, NO HOT SPOT

55-200mm @ 200mm, f/4.8 Bad hot spot, NO HOT SPOT

55-200mm @ 200mm, f/22 Bad hot spot, SMALL HOT SPOT

55-200mm @ 200mm, f/22 Bad hot spot, SMALL HOT SPOT

The difference at the long end of the zoom is amazing and is usable over the entire range of the aperture!  This is great news for us IR shooters.

Pawleys Island Marsh, 200mm B&W Post Processing

Pawleys Island Marsh, 200mm B&W Post Processing



There is starting to be a large number of IR photographers out there who are using converted Fuji X Pro 1 camera systems.  There are currently 2 conversion companies out there who can do the conversion.  I HIGHLY recommend the X Pro 1 as an Infrared platform and with the addition of the 55-200mm lens to our shooting arsenal we are way ahead of the game!





May 20 2013

Moody Images in Infrared & Color! Fuji X Pro 1 and X-E1


Grabbing your viewers by the throat and not letting go…

A dark and stormy night

A dark and stormy night, Fuji X Pro 1 w/ 14mm fuji lens at 720nm Infrared.

Images that are dark and moody tend to grab our attention.  It is as though there is something hidden and dark that demands our attention.  We stare at them and analyze the image for a deeper hidden meaning.  This creates emotional impact that allows our viewers to share what we felt as we created the images!

Look for dark, stormy skies, moody clouds, dark trees or water.  Work in Infrared and you will find that you have a much better chance to capture these kinds of images more often than when working in color.  It is still possible to do so in color but you have to work harder at it!

Paradise Island Light, Nassau

Paradise Island Light, Nassau



As you can see in the image above, it is moody and draws the viewer into the scene, but it does not have that “dark and stormy” look and feel!  As I stated before, it is much easier to capture these types of image when working in Infrared!

A dark and stormy night

A dark and stormy night

Work in both Faux Color and B&W.  You never really know what you are going to get unless you take the time to post process both ways.  You should even look seriously at the properly white balanced raw image right out of the camera!  Sometime you can get a really stunning image there.

Lady Katheran

Lady Katheran, 720nm Infrared, Fuji X Pro 1 with Fuji 14mm lens.

Here is the same image processed in B&W.

Lady Katheran

Lady Katheran



The workflow to getting great images in post processing is to ALWAYS process in the 3 main ways:

  • RAW:  Check how the images looks right out of the camera.  In 720nm and 590nm you can get some stunning images with beautiful bronze skies!
  • Faux Color:  If your camera captures any color data at all (720nm and lower) then you should ALWAYS take the time to process in this mode.
  • B&W: You just done know what you are going to get unless you try!



Try adding a lens vignette to your images to darken the corners.  This will give more mood!

Here are some examples of RAW and B&W post processing!

McClellanville Shrimper

McClellanville Shrimper, RAW right out of the camera!



McClellanville Shrimper

McClellanville Shrimper, B&W



As you can see both versions give stunning results.  The most important thing for you to remember is that to get the best results from all of your images it is necessary to take the time to post process in all three modes.  Do not short change yourself by cutting corners.  Take the time to give each image your best try!



You will be rewarded for you work!



Apr 1 2013

Fuji X Pro 1 – 720nm Infrared Faux Color and B&W Post Processing


A Simple Tutorial on Infrared Post Processing…

Murrells Inlet Marsh, X Pro 1 720nm IR Faux Color

Murrells Inlet Marsh, X Pro 1 720nm IR Faux Color

The Fuji X Pro 1 has turned out to be one of the best Infrared camera systems that I have ever used… period!  The only good Fuji lenses for Infrared have proved to be the 35mm f/1.4, the 18mm f/2 and the new 14mm.  The Viogtlander 75mm f/1.8 has also proved to be a STUNNING lens also!  So, the camera has proven its infrared capability, now it is time to discuss in detail the recipe for post processing!  It is all quite simple but there are a few requirements that you must understand in order to follow my workflow with understanding.

Needed:

  • Photoshop CS5 or CS6
  • Nik Filters, Viveza, Define Silver EFX Pro plugins for Photoshop, NOT LIGHTROOM.  (You can now purchase the entire library of Nik filters for $149)
  • Kromography False Color Action which can be downloaded here from the right menu bar under the box menu.  You can simply  click on it to download to your computer then drag it to photoshop to install.
  • A converted Infrared camera system capable of generating enough color data to make Faux Color images.  This means 720nm, 665nm, 630nm and 590nm conversions.
  • The ability and desire to experiment!

As you move your RAW (shoot only RAW for IR because of the ability to shift the white balance easily) onto your computer you should automatically tell yourself that you are going to process each selected image in Faux color and B&W.  Sometimes you will notice that the un processed image looks great also (wonderful bronze tones) and decide to do a version like this as well!

Lets talk about the RAW conversion process a little bit.  Photoshops ACR built in RAW converter will NOT apply the white balance correctly and your images will appear deep red.  For this reason I use Capture One version 7 from Phase One.  It is simply the BEST RAW converter that I have ever used.  You can download a trial version and decide for yourself if what I am telling you is true!

My Initial Editing Steps:

  1. Move images from my camera to my computer with an intelligent download tool that renames them with a meaningful name and create an intelligent directory tree for my RAW Library.  For this I have tested dozens of tools and found that Ingestimatic is the best and lowest cost one out there! You can find them here.
  2. Visually edit the RAW files by deleting the images that are simply no good.  Do not clutter up your computer with these useless files.
  3. Batch process my RAW conversion choices and adjust the exposure, contrast and angles.  Capture One will allow this and place the converted image files into a storage directory for later editing.
  4. Within Photoshop, open  each converted image one at a time for post processing
  5. Run Nik Define 2.0 in its default mode on the image for noise reduction, Save.
  6. Run Nik Viveza and without using any selection points increase the structure around 10% and the contrast about 5%, Save.
  7. Having installed the channel swap action that you downloaded here, run it on your image.  The last thing it will do is to open a Hue/Saturation window with the Master channel selected.  Simply select the CYAN channel  and vary the HUE a little bit to bring the sky to a normal blue rather than a blue/green.  Then select the RED channel and adjust the saturation up to a value you like, and repeat with the YELLOW and MAGENTA channels.  When you are happy with the results click on DONE to move on.  REMEMBER:  This is to only get the colors of the FAUX COLOR IR image into the ball park!  The real adjustment will happen next.
  8. Run Nik Viveza again.  Here is where you will use your control points to slightly adjust the colors and contrasts of various image elements to bring out a stunning, etherial work of art!  LOOK closely at your image, decide what you wish to adjust (Hue, saturation, contrasts and de-saturation). MORE ON THIS LATER!
  9. Run Nik Define one more time.
  10. Flatten the image, crop to taste, correct any imperfections (healing tool and content aware fill).
  11. Save the image with a meaningful name in a planned and thought out master image library.
  12. With the finished Faux Color image still open in Photoshop, now run Nik Silver EFX Pro to do your B&W conversion.  There are several built in recipes in this filter that can be used as a starting point.  My favorites are:
  • High Structure Harsh
  • High Structure Smooth
  • Full Dynamic Range Harsh
  • Full Dynamic Range Smooth
  • Fine Art Process
  • Wet Rocks (once in a while)

Save your image again with a NEW file name that reflects the difference in your master image library tree!

Murrells Inlet Salt Marsh, X Pro 1 720nm IR

Murrells Inlet Salt Marsh, X Pro 1 720nm IR

Remember:  Process ALL IMAGES as both Faux Color and B&W.  You really do not know what you are going to get till you do so.

All of this really is VERY SIMPLE and once you have done it a few times it will become second nature to you.  Soon you will be a post processing Infrared God or Goddess!  Congratulations

No, let’s take a look at the image below.  Notice the areas that I have circled as places where I desire to change the colors, contrasts and saturations (both plus and minus). Also consider that this is a 720nm converted camera and as such has a very limited color range (light pinks and warm tones and blues).

Annotated Faux Color, X Pro 1 720nm IR

Annotated Faux Color, X Pro 1 720nm IR

It is in this area and others like them (similar color values that are the same) that we are going to place control points on and change these values!  If you notice that the areas around them also change a little you can place what we call anchor points which are simply control points with no adjustments to bring those areas back to where you wanted them!

You will find this ENTIRE process from the initial loading into photoshop to finish will just take 4 or 5 minutes or less as you become more practiced!

Here are a few more images for you to consider that were taken on the 720nm Fuji X Pro 1 camera system:

Stormy Seas Faux Color, X Pro 1 720nm IR

Stormy Seas Faux Color, X Pro 1 720nm IR

Stormy Seas B&W, X Pro 1 720nm IR

Stormy Seas B&W, X Pro 1 720nm IR

Sometimes Faux Color images simply do not work, then you still have the great B&W ones to work with!

SC School Bus Boat, X Pro 1 720nm IR

SC School Bus Boat, X Pro 1 720nm IR

SC School Bus Boat, X Pro 1 720nm IR

SC School Bus Boat, X Pro 1 720nm IR

Was this information helpful?  Please let me know one way or the other!

Mar 27 2013

Fuji X Pro 1 720nm IR Conversion


Here it is…

Fuji X Pro 1, Brookgreen Gardens, 720nm B&W processed. Fuji X 35mm lens.

Fuji X Pro 1, Brookgreen Gardens, 720nm B&W processed. Fuji X 35mm lens.

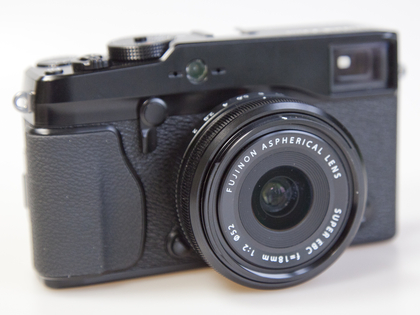

frontnolensWell, it arrived!  After months of consideration after I got my X-E1 I finally decided to send off the X Pro 1 for  Infrared conversion.  It went to Dan at LDP (maxmax.com) and the cost was $500.00.  YIKES!  yes I said $500.00!  Dan explains that the X Pro 1 is the most difficult conversion that he does!  It required him 1.5 days to do the conversion and lots unsoldering/soldering to get to the sensor.  Still, better than sitting on the shelf or an attempted sale on Ebay, plus  I really like the camera and the hybrid viewfinder is just perfect for IR.

I had to decide between 720nm and 850nm so decided to go for the 720 in order to have a little color ( I really like the bronze tones right out of the camera at 720nm).  The total time for shipping – conversion – shipping was 8 days, door to door.  Very fast!

Importantly, the Fuji X Pro 1 camera White Balances perfectly. For these tests I white balanced on a green shrub in front of my gallery.  The process to do so on the camera is simple and fast!

The scope of THIS post is to talk about the conversion itself and to give you some sample images testing each of my normal Fuji and Voigtlander lens set that I use.

  • Voigtlander Heliar 75mm f/1.8 Lens
  • Voigtlander Ultra Wide-Heliar 12mm f/5.6
  • Fujifilm XF 35mm F1.4 Lens
  • Fujifilm XF 18-55mm F2.8-4.0 Lens Zoom Lens
  • Fujifilm XF 18mm F2.0 Lens
  • Fujifilm XF 60mm F2.4 Macro Lens

My first image out of the camera was with the Fujifilm XF 35mm F1.4 Lens.  It is stunningly sharp with great contrasts and tones without any processing at all! This is simply a perfect IR image right out of the camera.

Fuji X Pro 1, Brookgreen Gardens, 720nm RAW un-processed. Fuji X 35mm lens.

Fuji X Pro 1, Brookgreen Gardens, 720nm RAW un-processed. Fuji X 35mm lens.

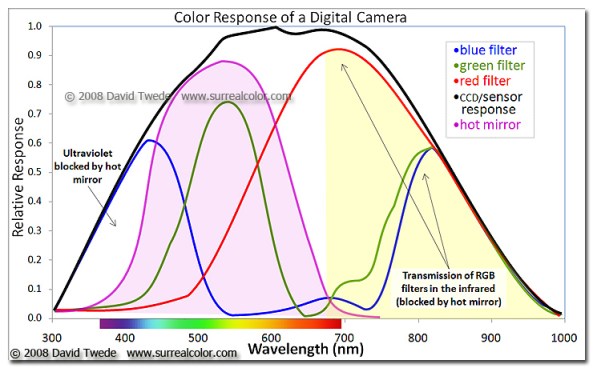

OK, the original hot mirror can tell us a lot about the capability of the Fuji body to take IR with no conversion.  The strength of the internal filter from the X Pro 1 is quite strong!  It is actually 2 filters sandwiched together.  They are very much like the B+W 486 IR blocking filter and the LDP CC1 IR blocking filter back to back.  The 486 is a pink/gold  filter that extends a little further into the visible light spectrum before falling off and allows a little less IR to pass through.  The CC1 filter is wider at the UV end.  The two filters together will pass light to the sensor from about  300nm to 700nm.  You can see this in the image below. This is the same filter arrangement (hot mirror) that we normally see in the Canon DSLR line and on the Panasonic Micro 4/3 camera line.

X Pro 1 Hot Mirror showing both Wide bandpass side (gold tint) and the Lower UV side (Aqua)

X Pro 1 Hot Mirror showing both Wide bandpass side (gold tint) and the Lower UV side (Aqua)

X Pro 1 Hot Mirror showing the Wider bandpass side (gold tint)

X Pro 1 Hot Mirror showing the Wider bandpass side (gold tint)

X Pro 1 Hot Mirror showing the Lower UV side (Aqua) similar to the CC1 filter from LDP

X Pro 1 Hot Mirror showing the Lower UV side (Aqua) similar to the CC1 filter from LDP

If you were to look at the 486 and CC1 filters they are the same general colors and pass band to what we actually see here!  So , what does this all mean to you?  If you decide (and convince Dan) to have a full spectrum conversion done on your X Pro 1, you can convert it back to a normal color camera by stacking both of these filters (B+W486 and the LDP CC1) on the end of your lens.  The full spectrum Infrared conversion is one where the hot mirror (IR blocking filter) is removed from in front of the sensor and replaced with a piece of clear glass.  Then, the camera is programmed to the specific UV or IR band with the addition of the appropriate filter on the end of the lens.

Normally, the hot mirror can bee seen as the colored layer of glass under the lens as shown here where you can now see the 720nm filter installed.

Inside the X Pro 1 showing the 720nm filter.

Inside the X Pro 1 showing the 720nm filter.

Lenses that Work/Don’t Work with the X Pro 1 720nm IR conversion…

Lens Hot Spots

As you may know (or guessed), not all lenses work well in the Infrared spectrum.  This is due to many things, but most commonly, the coatings on the lens elements and the coatings on the internal lens barrel and how they reflect IR light energy.  The common failure then is in the form of HOT SPOTS in the center of the image captured by the camera.  These are always dead center in the middle of the image and present as large round white areas.  Sometimes, they can be overcome by using a wider aperture, but not always…

Lets talk about the lenses that I tested that work (or in 1 case mostly work)…

Fujifilm XF 35mm F1.4 Len:

Fuji X 35mm Lens

Fuji X 35mm Lens

WOW, what can I say?  This lens works perfectly in the 720nm spectrum at all apertures!  The camera auto focuses perfectly and fast, the images are sharp and there are no hot spots at any aperture!  Lets take a look.  This first image is raw out of the camera.  I have done not post processing for B&W or Faux Color but there is enough color in the 720nm spectrum to have some interesting Faux Color results.  These types of images will be covered in another post next week and we will spend a lot of time and effort teaching and going through each step in the recipe used to create them in Photoshop CS6 and the Nik filter set.

Fuji X Pro 1, Brookgreen Gardens, 720nm RAW un-processed. Fuji X 35mm lens.

Fuji X Pro 1, Brookgreen Gardens, 720nm RAW un-processed. Fuji X 35mm lens f/8

Next, is the same image post processed using CS6 and Nik’s Silver EFX Pro for B&W…

Fuji X Pro 1, Brookgreen Gardens, 720nm B&W processed. Fuji X 35mm lens.

Fuji X Pro 1, Brookgreen Gardens, 720nm B&W processed. Fuji X 35mm lens f/8

Voigtlander Heliar 75mm f/1.8 Lens:

vt7518bThis lens from Voigtlander is one of the sharpest, easy to use lenses that I own.  The fit and finish on this lens is something to behold.  The lens has an included clamp on lens hood that works very well.  The focusing is so smooth that it is scary… It is a PERFECT match for the Fuji X system (X Pro 1 and the X-E1) and works just as well here in Infrared!  I was very happy to discover this in my tests at 720nm!  There are no hot spots at any aperture.  It takes Take a look:

Voigtlander Heliar 75mm f/1.8 Lens at f/11. Raw

Voigtlander Heliar 75mm f/1.8 Lens at f/11. Raw (notice the nice bronze coloring)

Voigtlander Heliar 75mm f/1.8 Lens, f/8 Faux Color Post Processing

Voigtlander Heliar 75mm f/1.8 Lens, f/8 Faux Color Post Processing

Voigtlander Heliar 75mm f/1.8 Lens, f/8 B&W Post Processing

Voigtlander Heliar 75mm f/1.8 Lens, f/8 B&W Post Processing

Fujifilm XF 18mm F2.0 Lens:

Fuji X 18mm lens.

Fuji X 18mm lens.

This lens works well as long as you do not go beyond f/8.  Past that it generates very discinct hot spot in the center of the image.  While this can be overcome in post processing  with Nik’s Viveza, it is still slightly disappointing…  Still, when used at f/8 or wider the lens generates pleasing sharp images that make it worthwhile to carry in your camera bag!  Here are the RAW test samples for you to consider.

Fujifilm XF 18mm F2.0 Lens at f/2

Fujifilm XF 18mm F2.0 Lens at f/2

Fujifilm XF 18mm F2.0 Lens at f/4

Fujifilm XF 18mm F2.0 Lens at f/4

Fujifilm XF 18mm F2.0 Lens at f/5.6

Fujifilm XF 18mm F2.0 Lens at f/5.6

Fujifilm XF 18mm F2.0 Lens at f/8

Fujifilm XF 18mm F2.0 Lens at f/8

Fujifilm XF 18mm F2.0 Lens at f/11

Fujifilm XF 18mm F2.0 Lens at f/11

Voigtlander Ultra Wide-Heliar 12mm f/5.6

Voitlander 12mm

Voitlander 12mm

Another great lens from Voigtlander.  This one has a built in lens hood and while it will take screw in filters they need to be wide angle versions.  It also has that super smooth focusing feel but since it is so ultra wide at 12mm you can focus it pretty much at infinity and it will always be in focus.  I love this lens on the X Pro 1 and X-E1.  For 720nm Infrared, it works great until you hit f/22 then it gives a faint hot spot.  This is just fine with me as I rarely go beyond f/11 or f/16.

Take a look at the samples:

Voitlander

Voigtlander Ultra Wide-Heliar 12mm f/5.6 at f/8 RAW

Voigtlander Ultra Wide-Heliar 12mm f/5.6 at f/22 RAW with hot spot

Voigtlander Ultra Wide-Heliar 12mm f/5.6 at f/22 RAW with hot spot

Fujifilm XF 18-55mm F2.8-4.0 Lens Zoom Lens:

Fuji 18-55

Fuji 18-55

This lens is such a disappointment to me…  It is without a doubt my favorite walk around Fuji lens on the X-E1 camera. I hardly ever take it off.   Sharp and clear with great contrast.  That being said it is all but USELESS for Infrared!  There is a major hot spot problem at ALL focal lengths at ANY aperture past f/4.  At f/4 it did take nice images but as you understand, useless for landscapes.   Bummer…..  I am beyond disappointed over this one.

Fujifilm XF 60mm F2.4 Macro Lens:

Fuji 60mm

Fuji 60mm

I am going to initially tell you to simply forget this lens for Infrared.  It has a seriously bad hot spot at all apertures.  I will also share with you that I might actually have a bad copy of it.  It gives a terrible hot spot on my X-E1 when shooting in color as well, especially when using a flash.  I think that I am going to send it back to Fuji for repair and see what they think.  Depending upon that I might re-evaluate it for Infrared later on!

Ok this is all for the initial post.

The next post will focus on post procseeing and what can be acheived artistically with this new Infrared Fuji X Pro 1!

Please let me know what you think!

Aug 23 2012

Fuji X Pro 1 and Advanced HDR Photography with NIK, Photomatix & Merge


Or, Look Mom at  what I made!

A brief overview of the  4 major HDR tools…

The Glade Creek Mill, Fuji X Pro 1 w/ 60mm lens, 10 stop ND and Nik HDR EFX Pro 2 with 3 source files

I just got back from a major workshop that Jamie Davidison and I led to the New River Gorge in West Virginia where to took our students on a hectic 4 day workshop/excursion.  We explored waterfalls, grist mills, trains and vistas while studying Infrared and Color post processing back in the classroom each night till about midnight.  This was EXHAUSTING to say the least but never the less, a great workshop full of great photographers who gave as much as they took!  My days started every morning at 5am and ended about 1am.  I am still recovering!

The Glade Creek Mill, Fuji X Pro 1 with the VC 12mm lens

While the main focus was shooting in Infrared and its associated post processing, I needed to provide loaner IR camera systems to those who did not yet own one, so even though I own three IR systems I was forced to shoot color!  The sky each day was free of clouds and very bright, so if I wished to photograph in color I was forced most of the time to shoot HDR images in order to overcome the dynamic range of the day!  A lot of the time I was able to successfully capture an image with The X Pro 1 in a single shot like the one shown here on the right of the Glade Creek Mill.  But the norm was indeed HDR. The X Pro 1 camera has an unfair advantage over most other camera systems, it has a wider dynamic range and can capture more image data!

Notice that the mill did have some running water which forced me to use very long exposures in the range of 10 to 5 seconds in order to slow the water down.  While there was not a lot of water flow there was enough to make the images very nice.  I used the 60mm lens on the camera along with a 10 stop ND filter in order to slow it down!

OK so let’s get to it!  From this point on, we are going to be working with the same three source files.  I will take you through the post processing for the following HDR tools:

  • Nik HDR EFX Pro
  • Nik HDR EFX Pro 2 (new)
  • Merge To HDR Pro (Photoshop CS6)
  • Fotomatix Pro 4.2.3

I also will be using Nik’s Color EFX Pro 4 and Viveza 2 for post processing (fine tuning) after the HDR conversions are finished!

Overview:

OK, what is HDR?  HDR stands for High Dynamic Range.  Think of it this way… You are out taking pictures during the brightest part of the day.  You can get a good image of the foreground subject, but the sky is totally blown out, you know pure white.  The total range of the light from black to white in your image exceeds what your camera is capable of recording, but our eyes can still see and understand the complete range.  So, in the world of photography, we have developed the ability to take several photographs, say three to six, each one with a different exposure from way too dark to really blown out.  With these pictures in hand you can now run one of several software programs available that will combine the best of each of these differently exposed image into one that can display the entire range of of the image from black to white!

Now this requires a image with more data than you can store in a 8 bit JPG image, and even more than your 16 bit RAW, TIFF or PSD image!  Now we move into the world of 32 bit images that can hold and display  a far greater range of black to white data.  Now, 32 bit images are all but useless to us in the real world so the HDR software will compress it down to 16 bits by removing select bits of brightness data without really negatively affecting the view of the image and making it possible to view and print the image!   Pretty neat technology don’t you think?

What I normally do when shooting HDR is to take a test image and evaluate the histogram.  I will look to see what areas are out range, or totally black or totally white.  Usually, the blacks will be fine but the whites will be blown out.  I will then retake the same image with a negative EV dialed in and re evaluate the image again looking to see if the blown out white areas of the image are now in the proper range.  This gives me an idea of just how wide the range of the image needs to be.  If the blown out areas take two or three stops of adjustment to bring them back into range then I will then  decide upon how many HDR images are needed to be taken to get the total range covered in 1/2 stop increments.  You will need to set your camera on a tripod and have it locked down to assure that you get the same exact composition in each shot.  You can either use the auto bracket mode on your camera to generate your shots or do it manually.   Weather or not you change the ISO or shutter speed is dependent upon the scene or your artistic intent.  Some cameras will bracket at most three shots, some 5 and some even 7 or more!  You can usually choose to bracket with Aperture, Shutter Speed or ISO.  It is important to keep the Aperture constant as to not change the depth of field.

For these shots, as long as I kept the shutter speed longer than 3 seconds I would not have any issues with keeping sharply defined slow moving water to generate the HDR.  So I chose a 3 stop bracket using the Shutter Speed, leaving the Aperture and ISO steady.

Here are the 3 component images that make up the final HDR image:

  • In the first, 3495, the trees and mill look good, the water is overexposed about a stop and has lost detail and the rocks are a little under exposed.
  • The second, 3496, the rocks are perfect but the water is very over exposed. There is some detail in the black area under the top of the falls.
  • The last, 3497, the water is perfect but everything else is just to dark.
  • The water was always the key to this shot, getting it so that it was not blown out is the reason to use HDR.  These three images generated by the camera without any processing other than raw conversion and bracketed .7 ev apart with -1.3 ev being one of them, -.6 ev and lastly –2 ev.  If you decide to try this, keep in mind that the closer together the exposures are, say 1/2ev the more data you will have to generate your final image.  You can also add more data with more images. Every HDR you setup and shoot will be different and you must evaluate how many shots to take at what exposure.
  • The very dark black under hang below the top of the waterfall was another consideration when deciding the exposure values of the component images.  I needed a brighter image to bring out some detail here as well.

3495, -1.3 ev, f/8 8 seconds, I chose this value to get the correct exposure on the trees

3495 Histogram, -1.3 EV

________________________________________________

3496, -.6 ev, f/8, 13 seconds. I chose this value to get the rocks and mill exposure correct knowing that the water would be blown out

3496, -.6 ev

________________________________________________

3497, -2 ev, f/8, 5 seconds,  I chose this exposure for the correct falling water exposure

3497, -2 EV

________________________________________________

These three images are the only ones that I will use to explore the various HDR processing software.

Final considerations on component images that make up the HDR image:

  • You MUST shoot on a tripod to control camera movement (prevent ghosting) and to lock the composition.
  • Use a remote shutter release.
  • Wind will cause plant and tree movement which will cause a ghosting effect (bad).
  • Keep the aperture constant to force the depth of field the same between shots.
  • ISO bracketing is ok as long as you keep the jumps in ISO below the level where noise is introduced by your camera.
  • Exposures closer together will allow you to generate better HDR’s as long as the subject matter doesn’t move.
  • More component images mean more data to  build a better HDR image.
  • Take notes in the field as you shoot so that you can remember what your intentions were at that point in time!  This will help you when you build the HDR.

Some notes on the software:

  • HDR conversions require image editing software that can process in 32 bits.  This means that unless you purchase HDR stand alone software like Photomatrix Pro you MUST use Photoshop CS5 or CS6. Elements and Lightroom simply will not work.
  • I do not like over cooked HDR images.  I process them to a natural look and feel, close to what I can see with my eyes!
  • CS5 & CS6 both include an internal HDR conversion filter called Merge to HDR Pro for free.
  • The NIK HDR software, HDR EFX Pro and HDR EFX Pro 2 require a 64 bit operating system and the appropriate 64 bit CS5 or 6
  • Photomatix Pro is a stand alone filter that does NOT run inside of Photoshop and will allow you to save a 16 bit HDR converted image that can be opened in Elements.
  • All of the conversion software will cost between $100 and $200.
  • I am not going to take you step by step through each of the HDR conversion packages.  This is HIGHLY SUBJECTIVE and no two photographers will get to the end results via the same path!  There a quite a few good books out there on this!

Photoshop CS6 Merge To HDR Pro

This HDR program comes built into Photoshop CS6.  It is quite powerful and gives you a lot of options.  I found it very easy to use and it gives very nice results.  You will find it under the FILE > Automate menu and it  will ask you to locate and open your component images or add images already open!

Once your images have been chosen, it will open them and drop you into a full screen dialog where you can make any image adjustments.  Once done the software will drop the finished image into Photoshop where you can then do your final tuning with Nik’s Color EFX Pro 4.  I like to use the Tonal Contrast filter due to the ability to adjust color contrast in the Highlights, Midtones and Shadows separately from each other.  This one tool will really bring out the full potential of your images.

Here is my version of the three component images processed in Photoshop’s Merge To HDR Pro:

X-Pro1-3495 3496 3497 -Glade Creek Mill -2012 -M to HDR Pro

Here is my version of the three component images processed in Nik’s HDR EFX Pro:

OK, onto Nik Softwares HDR EFX Pro.  This is the first version that Nik offered earlier this spring (2012)  It has a great interface and does a pretty good job, but requires a little more fine tuning after the HDR conversion is finished.  The tuning process was again done using Color EFX Pro 4 and Viveza 2.  This is a plugin filter for the Photoshop family and requires that you run a 64 bit operating system in Windows or OSX.  It will NOT run on Elements and Lightroom.

I found that the images to be a little flat and lifeless until I applied the Color EFX Pro 4 in the after process tuning steps, then the images started looking pretty good.

X-Pro1-3495 3496 3497 -Glade Creek Mill -2012_NIK HDR EFX Pro

Here is my version of the three component images processed in Nik’s HDR EFX Pro 2:

OK, now, this is a MAJOR upgrade to Nik’s HDR software.  This one revision corrected all of my complaints about flat and lifeless images!  There is VERY LITTLE fine tuning needed at all.  I think that Nik’s HDR EFX Pro 2 is my favorite conversion tool out there.  But I will let the images speak for themselves!

X-Pro1-3495 3496 3497 -Glade Creek Mill-2012 NIK HDR Pro 2

Here is my version of the three component images processed in Photomatix Pro ver : 4.2.3

Photomatix is likely the most popular HDR conversion package on the market.  It cost around $150 and does NOT require CS5 or CS6 to run.  It is a standalone system and when it finishes it will directly save a 16 bit version of your HDR image on your computer that you can then open for further editing.  It has many recipes and adjustments and you can do great work with it. I highly recommend it even if you are already running a 64 bit operating system and CS6. You will not be sorry!

X-Pro1-3495 3496 3497 -Glade Creek Mill -2012 -Photomatix Pro HDR

As you can see, the 4 converted HDR images are not at all the same.  That would be difficult if not impossible to achieve.  Each software package has its own adjustments and none of them are exact.  I like Nik’s HDR EFX Pro 2 and Photomatix 4.2.3 the best.  They are all easy to use and as long as you properly evaluate the scene that you are trying to photograph and properly choose the exposure values of the component images you will get really nice HDR shots!

What do you think?  Please let me know!

May 20 2012

Detailed Fuji X Pro 1 Infrared Tutorial: Part 1, Equipment & Shooting!


Creating Emotional IR Images From Your Heart

Using the Fuji X Pro 1 for Infrared

Infrared photography means so many things to me… I have a popular Infrared Educational Blog at http://infraredatelier.wordpress.com/ where I have shared all of my secrets surrounding Infrared photography for several years, I have a book in work on Infrared photography, but MOST IMPORTANTLY, I have practiced the art of creating emotionally charged Infrared images for longer than I can remember, even as long as 45 years ago with film.  Here, today, I will disscuss with you the technical details of using your Fuji X Pro 1 camera system to create these emotionally powerful images as well.

X Pro 1 Faux Color IR Image with only the channel swap

Understand this, you can create Infrared images several different ways:

  1. Film:  Rolli makes a great 720nm IR film in many different formats that with the addition of a 720nm filter on your lens will create great IR images at 100 ISO, and with no filter great B&W images at 400 ISO!

  2. Hoya R72

    Standard Digital COLOR Camera:  With the addition of a 720nm or 850nm IR filter on your camera lens your camera can capture Infrared images.  There is a tradeoff to this way though because each camera manufacturer places some sort of UV/IR blocking filter over the image sensor that allows only visible light to pass through.  Some of these filters are weaker than others and these cameras make for a system that will do well in Color and OK in Infrared with reasonable IR exposure times around a second or two.  Others have a strong filter allowing only a small amount of IR energy to pass.  These require VERY LONG exposure time in order to overcome this filter.  The Fuji X Pro 1 is one of the cameras with a weaker filter! This is exciting because it enables you to easily create IR images with an unmodified camera system!

  3. Converted Infrared Camera:  This type of system is the most popular by far.  There are 2 types:
    • Full Spectrum conversion: The internal UV/IR blocking filter is removed and replaced with a clear glass filter. You can then program the camera with an external IR filter in any range from UV to Color to Infrared!  This is the most adaptable IR system but costly because IR filters for your different lens sizes are expensive!
    • Dedicated Infrared Conversion:  This type has the internal UV/IR blocking filter removed and replaced with a specific IR pass filter and will create IR images in that band only.

What your camera sees!

So with regard for the Fuji X Pro 1 system we are going to discuss option #2, the standard color camera with an external IR filter attached to its lens.  But you ask: “What filter can I use?”. Well since we are not modifying the internal UV/IR blocking filter you must understand that the camera will pass normal visible colors as well as IR if the external filter allows it.  This is both good and bad!  If you were to install a 590nm IR filter on your lens the camera, it would see everything from 590nm up to 1000nm.  But because the internal UV/IR blocking filter allows much more visible light than IR through, it will poison the exposure metering system.  It is going to see the vast majority of the light as color (red) and expose for that rather than the IR portion.  So attempting to do this will cause very unreliable exposure and great frustration on the part of the photographer.

What we need is to attach an IR filter that blocks ALL of the visible light and only passes IR to the sensor!  So it is best to choose a 720nm IR pass filter to your lens like the Hoya R72 or a 800nm B&W IR only filter like the B+W 093.  The higher you go in nm the longer the exposure time will be…

Now, knowing that we are going to use the 720nm filter which will only pass IR energy from 720nm and up while blocking ALL of the visible light our metering system will now function as it should!

Considerations of problems that must be overcome within the X Pro 1 to get good IR images

  • Even though the Fuji X Pro 1 has a weak UV/IR blocking filter there is still one there.  Exposure time at a normal low noise ISO of 800 and below will still require an exposure time too long to hand hold and still get sharp images.  Most of mine were at 1/30s and longer.
  • Yes, the X Pro 1 works well at high ISO settings, but in IR the camera will still create noise in the dark areas of the image.

  • Fuji X Pro 1 with a custom WB right out of the camera. This is as close as you can get but will still generate a great image.

    White Balance is IMPORTANT when shooting in IR!  The X Pro 1 will NOT reliably do a custom white balance with the 720nm IR filter installed.  But it does have a manual Kelvin White Balance option, so when shooting IR you need to go to this sub menu in the WB settings and set it to 2500K.  I have talked to others doing this and have heard that they also take away green as well in the menu.  I personally think that this is unnecessary and by leaving the green neutral you will get more pleasing Faux Color images.  A properly white balanced image taken on your camera has s slight reddish cast, the sky should be bronze and the green leaves should have a monochromatic feel with a bluish cast. (more on this later) An improperly white balanced camera image will be pure dark red.  While you can still use this image in post processing the lack of a good white balance will throw off your exposure system. Read your camera manual on white balance and understand it!

  • Longer shutter speeds need a tripod to get sharp images!
  • Remote shutter cable to cut down on camera shake!
  • The Hoya R72 720nm IR filter will generate good Faux Color infrared images some of the time, but good B&W images all of the time.  Keep this in mind while shooting and plan to always explore both options in post processing!
  • Faux Color IR images require a channel swap in post processing.  ONLY the Photoshop family (CS through CS6) has this function built in!  Photoshop Elements has an optional plugin called Elements Plus that you can purchase to do this.  Lightroom and Aperture DO NOT have this function!

Ok, enough of this for now. Lets talk images…

 The Hoya R72 IR filter is almost black.  You can see very little through it but don’t worry, the camera can see through it just fine!  You can find these filters on Amazon for about $58.00 in 52mm.  There are a lot of other filter companies out there that make these, some good some not so good… I trust the Hoya!

Mount the filter on your lens, set the ISO to around 1000 and put the camera on a tripod.  Make sure that you have properly set the WB either as a custom on or as a Kelvin entry.  If you choose custom, the camera will require a lot of light to due this properly.  Use green grass to generate the custom white balance.

I like to use the optical viewfinder rather then the LCD or EVF for shooting in IR.  Choose and frame your subject carefully.  Hmm, a word about composition…

There are three items that can make IR images really powerful and full of emotional impact:

  • Sky with clouds!
  • Water reflections!
  • Green Leaves!

The more of these items you can get in your images the better they will be!  Here is an example…

Clouds, Water and Leaves! What more could you ask for? While not done on a X Pro 1, this image could just have well been so!

 As you can see, the sky, reflections and leaves create an emotionally packed, etherial image that draws your viewer into it!  Keep these three compositional elements in mind as you go forth and create your images!

Exposure Issues…

OK, last part of this post!  There are a few small exposure issues that you need to be aware of while doing IR work.  They are:

  • Red Channel over exposure: The RED channel will aways expose a stop or more higher than the blue and green.  After you have taken the image and see the preview on the LCD panel look at the histogram.  It only displays the combination monochrome histogram and if it is close to being overexposed you will get better results by dialing in -1ev exposure compensation and re-take the image.  This is due to the red channel being more sensitive to infrared and causing the overexposure.  You can really see this during the RAW conversion or in photoshop during post processing by looking at the RGB histogram there.
  • Hot Spots:  Some people have reported hot spots in the center of their images when using the 18mm lens.  I have NOT personally  seen any evidence of this with my system as of yet.  Hot spots are areas in the center of each picture that is usually a stop brighter.  They are caused by light bouncing back and forth between the sensor and the lens elements.  These are lens specific and very little can be done while taking the picture to stop or reduce them.  BUT, the aperture can have a drastic effect on them!  If you see these then try adjusting the aperture and review the results, you just might be surprised!  You MUST ALWAYS use a lens hood when shooting in IR.  This will also help stop hot spots by stopping light from striking the objective lens at extreme angles then bouncing around inside the lens between elements.  If you do notice the hot spot you can remove it in post processing very easily by using Nik Filters Viveza.  You use the selection point by placing it in the center of the spot and then reduce the brightness!

OK, this is enough for today.  The next post will be a detailed Post Processing tutorial that will take you through both Faux Color and B&W processing.  I even have a photoshop action that you can download to semi automate the channel swap and cut down your post processing time!

May 7 2012

Updated Grist Mill & Covered Bridge Gallery…


Major Image Gallery Update

I have just updated the images in my Grist Mill & Covered Bridge gallery in the menu on the top of the page under galleries!  I added about 25 new mills and bridges plus provided name and state data under each image!  I hope that you enjoy them as much as I did in creating them!

There is something especially pleasing about mills and bridges that can transport me back to a different time and age!  I will literally  travel hundreds of miles out of my way to visit them!  In 2011 I spent 3 weeks visiting 19 states on the eastern seaboard doing just so, plus this year in May, I spent several days exploring the mills and bridges of south central Georgia!

You can visit the updated gallery by clicking on the drop down under Galleries in the top menu or if visiting from off site click on the link below:

https://markhilliardatelier.wordpress.com/gallery/color-infrared-grist-mills/

Apr 28 2012

Tybee Island, GA, Hidden Paradise!


Once here it is difficult to leave!

Tybee Island Beach in front of our rental!

Every year I try to make it down to Tybee Island, GA for a visit.  It is one of the hidden treasures of the Southeast coast!  There are two lighthouses there, shrimpers, beaches, birds and many more photographic subjects!  Last year, my wife Ellen made arrangements for a family vacation there with a rental right on the beach.  There were 9 of us there in all and we had a great time!  For me the exciting parts of the week were the photographic excursions out and about.  I am always excited to visit the same places many times as they will always present themselves in a different fashion on each visit!  Below is a small selection of the many things to experience while visiting…

The sand on the beaches there is a fine off white sugar sand and the kids loved to play in it.  There were ALWAYS large ships lined up  to leave and enter the river going up to the port!  Every morning there were shrimp boats going back and forth just off of the beach fishing!

The Tybee Island Lighthouse is a MUST SEE!  It is one of the better looking lighthouses on the coast and always makes a great photographic subject!

Tybee Island Lighthouse in 590nm Infrared.

Cockspur Lighthouse , the 2nd local light house is up the river a mile or so from the Tybee Island Lighthouse.  You can visit it by heading north off of Tybee Island and stopping just before the first bridge and taking the small dirt road off to the right to the marina.  You will then have access with a longer lens to photograph it.  I have done this many times but for this trip we took a Dauphin boat trip out into the river and went around the lighthouse several times.

The Cockspur Lighthouse in Tybee Island.

One of the more interesting things about Tybee Island is the fact that during the summer there are usually daily thunderstorms the come thru the area and this makes for a good opportunity to grab some high speed lightning shots!

High speed daylight lightning capture from the deck of our rental!

Tybee Island is worth taking the time to visit anytime of the year.  Go for a day or a week, you will not be disappointed!

My grandson Jordan pondering the lighthouse keeper's hat as he gets ready to climb the lighthouse stairs!

Apr 24 2012

Galleries Are Here!


The Gallery pages are coming online!

Sunrise on Folley Beach, Light painting on the driftwood with a white LED light! Very LONG Exposure...



On the top menu of the blog you will find several pages listed across the top.  The one labeled Galleries is actually a series of drop down menus which will let you select several organized image galleries containing my favorite work from over the years.  So far, I have 4 galleries populated but will be expanding over this month to around 15.  Please stop by for a visit and come back often to see the changes there!

I hope that you enjoy viewing them as much as I enjoyed creating them!  They cover about 15 years of my work since living in the Low Country of South Carolina and cover about 19 different states and 6 different countries! I even have some high speed water drop photography thrown in as good measure.

Oct 29 2011

The Great South Carolina To Missouri Grist Mill Trip, Day 1


16 Mills in 4 Days!

A beautiful mill full of photographic possibility!

Murrays Mill, NC

I needed to visit my parents who live in St. Louis as they have moved into an assisted retirement home and were selling their house!  They wanted me to take some furniture back south to my kids so that they would have something to remember them by and assist a little with the house in general.  The entire process was pretty painfull and stressfull except for the 2 days of travel at each end of the trip!  For those 4 days I was in heaven!

Bost Mill, NC

I have 173 grist mills programmed into my GPS in the truck that covers every state from Florida north to Boston then west to Missouri down to Texas!  I had no specific stoops planned except for the Glade Creek Mill in West Virginia (which I have been wanting to visit for years) SO… I pointed the GPS to Glade Creek and then went to my Favorites section on the GPS which told me how close I was at any time to specific mills which I could then simply touch and direct the GPS to take me to as a VIA Point!  Using this process I managed to visit 16 mills and could have made 20 or so but it was simply too much to do and still have time to sleep!

Linneys Mill, NC

I spent a lot of time in North Carolina as there are just so many mills there to visit.  Some are totally useless as photographic subjects but still could be saved.  I skipped those that were in such condition along my route. I also would stop at a pretty barn as well but my priority were mills!

Several of the mills along the way were actually working mills that ground corn in order to make a living!  This style of mill is not nearly as pretty as the older 1800’s version but can still be very interesting!  The Linneys Mill in North Carolina is one such mill and very much worth the effort to find and photograph!  It sits along a very pretty stream that has been damed and if viewed from the back is a worthy photographic subject!

Linneys Double Metal Wheel!

Mitchell Mill, NC

Aside from the occasional commercial mill and tons of old mills there are quite a few of old mills that have been converted to private homes.  I especially like to visit these as long as the owners try to keep the exterior the same as designed!  The Mitchell Mill in North Carolina is one such mill and the owners have even kept the mill workings operational!  They were not home when I visited and I really did try to talk to them but alas I was only able to make friends with their three dogs before shooting the mill!  Perhaps the next time I go thru I will stop and attempt to visit them again…

Glade Creek Mill, WV, B&W

OK, it is time to visit the Glade Creek Mill in Babcock State Park in West Virginia!  As I said before, this one mill has been on the TOP of my wish list for several years and the point of my chosen route to St. Louis.  I really didn’t know if morning or evening would be better for shooting here so I kept my options open and planned to stay at a local hotel in case I needed a morning shot!  I needn’t have worried though as I actually arrived at 6 pm and the light was perfect, the fall leaves stunning and there was serious water flowing along the creek and over the various water falls!  There were about 50 photographers there and I had to wait for the locations I wished to shoot from.  I shot both in Color and Infrared but really Color was the priority due to the Fall colors.  I used a Canon 7D body with the 24-70 L f/2.8 lens and a Singh Ray 8 stop Vari-ND filter to slow the exposure way down and allow for soft creamy water motion.  Of course I shot on a heavy tripod using a remote shutter release and mirror lockup!

I processed all of my Color shots for B&W as well.  I also kept HDR in my mind as I setup and shot several sequences for later processing using the new Nik HDR Pro software!

Here are a selection of my favorite images of the Glade Creek Mill:

Glade Creek Mill, Single Shot, 30 second exposure!

Glade Creek Mill, Landscape, High Lighting The Waterfall

Next, a 3 shot HDR image using Nik’s HDR Pro Software:

Glade Creek Mill, 3 Shot HDR, Nik HDR Pro

Glade Creek Mill, 7 Shot HDR, Photo Matrix Pro Software

As you can see, the two different HDR versions give drastically different results.  I like both but can NOT decide which is best! Perhaps you can help with this?

Glade Creek Mill was a dream come true for me and while there are several more world class mill shots coming in the next 3 postings, it was the highlight of my trip.  It was worth the extra miles I drove to include it in my trip and the evening proved the best time to photograph it. I did make several discoveries while at Glade Creek, the most important is that I needed very GOOD ankle high boots in order to safely climb below the water falls and negotiate the rocks!   I did not get a local hotel but chose instead to drive much further on for the night before I stopped.

My next post will be a few mills that I saw on day two!

Stay tuned!

Oct 13 2011

Updated Grist Mill GPS File Available


The NEW GPX File Is Here!



Mabry Mill, 630nm IR

I just added about 15 Grist Mill GPS database entries into the Grist Mill GPX file that you can download in the DOWNLOADS menu on the right hand menu!  I added Ohio and Kentucky! Please feel free to download this file and then using your GPS software you can download it again into your car’s GPS!

If you have any additions to this file please send them along!

Thanks!

Feb 24 2011

A Few Infrared Images


A Few Of My Favorites…

Infrared Photography has had a life changing effect on my photography.  It has caused my creative juices to be re-charged!  I cannot get enough of it and to that end I find that I take hundreds of Infrared images to each single color image!  I find Infrared Photography to be emotionally charged in a way that takes my breath away!  I hope that you agree!



On a recent trip to Greece I visited the Temple Of Poseidon where the sky and storms work to my advantage to produce this moody image!

Temple Of Poseidon, Faux Color Infrared

The Temple Of Poseidon, B&W Infrared

An image from Brookgreen Gardens.  Sometimes the unprocessed image straight out of the camera can be be very stunning and full of emotional impact!

Brookgreen Gardens Reflection, Unprocessed Infrared

A garden gate in Brookgreen Gardens, Faux Color Processed!

Brookgreen Gardens Gate, Faux Color Infrared

Shrimp Boats in Georgetown, SC, Faux Color Infrared.  I like the Yellows and Pinks in this one!

Carson Elizabeth In Georgetown, SC, Faux Color Infrared

This B&W  image of the wheel house and bell of a shrimper is one of my favorite Infrared images of all time!

The Wheel House Bell, B&W Infrared

I am very passionate about my Infrared Photography and tend to take 100 Infrared images to each color image! I have several WEB sites dedicated to Infrared Photography but my best one is listed below!

For a more detailed discussion of my infrared work please visit my Infrared BLOG
