Aug 28 2018

The Accidental Photograph!

Sometimes even the best of us get surprised!

The Carson Elizabeth

Fuji GF670

Now, here is one image that I REALLY like! This is a 6×7 negative from my Fuji GF670, a folding rangefinder camera with a really bright rangefinder and a fixed 80mm Voigtlander lens shot on Rollei IR400 film and processed yesterday in Xtol stock and wet mount scanned today…

Sounds normal right? Well this was a VERY OLD roll of film, and has been sitting in my shop for over a year marked “Stand Develop” ( a special developing process where you use Rodinal 1:100 in the tank for an hour with no agitation that works on all B&W films of different ISO values) because I forgot what ISO I shot it at! I actually got tired of seeing it in my to do can in the fridge and yesterday threw it onto a 2 film reel with a roll of Ilford FP4+ film and set up my Filmomat for the FP4! The FP4+ turned out as expected, but the IR400 was a complete surprise.

Carson Elizabeth, Shrimper in Georgetown, SC on 120 film

There was only one good image from the IR400 but OMG was it ever good! Just looking at it gives me the hot sweats!! As I looked at the processed roll of IR400 I realize that I had changed ISO mid roll and that is why I marked it stand. The other images on the IR400 were not worthy of scanning but this single image still made it a big win for me!

Oh, for the curious, my FIlmomat is a computerized film developing machine that is the tabletop sized and will do 35mm, 120, 4×5 and 5×7 films. For the 120 it will do 2 rolls at a time. Here is a video that shows it in action…

Data: GF670 with 80mm lens and Rollei IR400 with no filter processed as FP4+ yesterday and wet mount scanned today.

Goodness, I had forgotten how difficult the film is to handle with its very thin film base!

For those of you who are interested in the fine art of FILM PHOTOGRAPHY AND SELF PROCESSING, join me on my new G+ page HERE and learn and share!

Aug 6 2017

Testing the New Kolari Vision AR 720nm Screw On Filter

720nm Medium Format Film Photography with Rollei IR400 Film

Tomotley Plantation in 720nm Infrared with Rollei IR400 film and the Kolari Vision 720nm Filter

Infrared FILM photography has always been on the difficult side, but not because of lack for film because there are several films on the market. Rather it is due to the poor quality of the available 720nm filters on the market.

Kolari 720nm FIlter

Recently Kolari Vision www.kolarivision.com has come out with a new series of infrared filters with their AR (anti reflection) that stop or greatly reduce hot spots in the center of your film or digital sensor. These hot spots are due to the various coatings, paint and other reflective coatings on the glass elements and coatings on inside of your lenses causing the light to bounce back and forth several times then hit the film dead center causing the hot spot.

The main filter on the market has been the Hoya R72 filter which works but gives a low contrast washed out image. Along come the new Kolari filter and now I am getting more contrast and even images with greatly reduced hot spots. AMAZING!

So lets take a look at the image above. This is the Tomotley Plantation about 20 min west of Beaufort, SC and was taken with the Rollei IR400 film rated at 720nm. Without a IR filter the ISO is 400 and the emulsion generates a very good likeness of Kodak TriX 400 film. If you add the 720nm filter the ISO drops down to 12 or 6 but you get the amazing whites on the grass and leaves. You even get the Wood Effect where the green items BLOOM out with an etherial soft white energy on the image!

Few things beat a beautiful sunrise photographed in color when you want to create a dramatic image. The same scene photographed in infrared may be disappointing unless there’s some IR reflective subject matter (we’re talking about deciduous trees here) to add interest. That’s because of the “Wood Effect,” which is the bright, white reproduction of the chlorophyll layer of deciduous plants. The effect is named after infrared photography pioneer Robert W. Wood (1868-1955) and not after the material wood which does not strongly reflect infrared.

Normally the Wood Effect is difficult to achieve at 720nm and is better seen at 800nm and and above. I have been very happy with this new filter from Kolari in combination with the Rollei IR400 film because I am constantly getting the effect plus deep contrasty images. It simply works as expected which is way more than I can say for others on the market!

Technical Data:

Fuji GF 670 Medium Format (120) folding Rangefinder with a Voigtlander 85mm Color Scopar lens.
Kolari 720nm AR filter
ISO at 12 and 6, both are close to perfect because they are only 1 stop apart.
Aperture: f/32
Tripod mounted

Development:

Ilford Perceptol Stock mixture 1:0, 20c, 14 min with 5 seconds of agitation every min.
Water Rinse
Stop Bath
Ilford Quick Fix for 5 min with 5 seconds of agitation every min.
Water Rinse
Clearing Wash
Water rinse for 10 min
Distilled Water rinse with 3 drops of wetting solution
Dried overnight in filtered Mistral Drying Cabinet.
Wet mount scanned on a Epson 850 pro at 6400dpi.

If you are considering working in 720nm whether in film or digital I highly recommend this new filter from Kolari!

Jul 8 2017

Finding Myself In The Old Ways…

It seems that I am addicted to film…

Miss Lue & A Hungry Egret

I still shoot with digital (A7RII) and love the look and capability of it, but FILM is what I go to every time I go out shooting… It is Terrible and exciting at the same time! It is so bad that I am looking for another freezer to store my excess film stock!

This is (again) Stormy Seas in Georgetown, SC

This is (again) Stormy Seas in Georgetown, SC (perhaps the most photographed boat in the Low Country). I have hundreds of images of it but I am pulled to photograph her in B&W film each and every time I am in Georgetown. There is something about her lines and textures that inspire me to document her life, and I have for years. Yes I will visit ANY shrimp boat (or grist mill for that matter) and each and every time I visit I see something different and unique… Yep addicted!

DATA:

The image was taken about 5 days ago on a 6×9 Fuji GW 690 II using medium format Fuji Acros 100 film and a red filter, developed in Perceptol 1:1 and Wet Mount scanned on a Epson 850 pro. The 6×9 format will give me 8 images per roll and I will usually scan 2 or 3 per roll, but I am very critical and selective because the wet scan process takes about 3/4 hour per scan!

The top image is near Stormy Seas in Georgetown, about 2 blocks away at another commercial dock and seafood house. I have shot this a hundred times on both digital and film, but never have I captured such a pleasing image as this. It is to me a more enriching image full of mood, contrasts and tells a story. I pleases me to no end the tell the story on an old FILM camera of an old boat and failing lifestyle just as the shrimp boat is in the background and the Egret in the foreground telling a different yet the same story!

There is also the consideration that is tied to the process of working in film. It is slower and much more deliberate, a truer work of love in that you control every single step of the process…

Film choice (Kodak Tmax 100, Tmax 400, Fuji Acros 100 or Rollei IR400)
Camera and lens choice (Medium or Large Format)
Considering the composition and lines.
Getting the exposure dead on (how many of you do that in digital?)
Adjusting for contrast and detail in shadows or highlights.
Film development and processing for highlights or shadows (another complete immersion of self discovery)
Drying (yep at lest 24 hours in a dust free drying cabinet)
Choosing the best image for exposure, sharpness, composition, contrasts, lines, dust & hair and so on..)
Wet scanning (at least a 1/2 to 3/4 hour project per shot)
Cleaning up on the computer by removing dust and hair and adding a bit of contrast)

All in all, the top image took about a week to complete from end to end! I simply love the process, being immersed in it and becoming one in the creative process. Yes it is slow but when I am done it is a total representation of MY PERSONAL VISION!

Film is making a HUGE come back in the world of photography! So much so that you will be shocked when you visit Ebay and look at the prices of old film cameras and systems! All of the major film makers in the world are increasing their production of films and even Kodak is bringing back discontinued film products! New film companies like New55, Impossible Project, and FILM FERRANIA have opened up and are making emulsions!

Developing has never been easier, there are many mail order labs out there but you can process your own film in your kitchen with very little effort and investment! You will need:

Dark Tent or changing bag to move your film to a daylight tank.
Daylight tank (I reccomend a Stainless Steel tank with steel developing reels by Hewes)
Distilled Water
Developer ( I recommend Perceptol by Ilford)
Stop Bath
Fixer
Wash
Water Rinse
Distilled water rinse with wetting agent
Clips to dry your film in your bathroom shower
A flat bed scanner like Epson 500, 600, 700, 800 or 850)

Total you are looking at about $120 for everything accept the scanner! There are great videos on Youtube that will take you thru every step in the process!

Tybee Island Light, Kodak Tmax 100 FIlm on a Fuji GW 690 II camera.

The image above of the Tybee Island Lighthouse was taken last month on Kodak Tmax 100 rated at 50 ISO on the 6×9 format medium format Fuji System. It was hot and the area full of tourists, even up on the top of the lighthouse itself! Still the act of creating this image was both fun and fulfilling and I walked away with exactly what I envisioned as I stood there looking at the scene!

I especially love shooting with Medium Format cameras. They are easier to travel with and the negatives are large enough to give amazing prints. I do have 3 4×5 large format cameras also that are great fun to you but as you can imagine, they are difficult to travel with. Once in a great while I will shoot with a 35mm camera, usually smaller rangefinder that were sold in the 60’s and 70’s!

Medium Format:

Fuji GF 670 (this is my travel camera in 6×7 format with a 85mm lens that folds up into a thin light camera)
Fuji GW 690II (this is a 6×9 format camera with a 90mm lens and a bit larger and better built than the GF camera)
Fuji GW 690 III (a newer version of the 690II)

Large Format:

Shen Hao 4×5 Cherry Field Camera with 5 lenses and film adapters for also using 120 film.
Polaroid 900 converted to 4×5 with a 150mm Fujinon lens. Think of 4×5 travel camera!
Polaroid 110B converted to 4×5 with a 90mm Schneider Angulon lens, again travel!

So, while film does indeed require much more effort over digital, the results simply cannot be compared. These medium format negatives have a native resolution to create a 71×53 inch print without upsizing it at all! The amount of detail is simply stunning and more importantly (at least t me) is the fact that the process become a Zen like activity in creation!

I hope that you enjoyed this post but more importantly to me at least that you considered my words on the creative process and taking complete control of it!

Dec 12 2016

B&W Camera Systems: Functionality/Creative Power/Affordability/Film/Digital ??

**Getting your BEST B&W image!**

Outer Banks Pier, Monochrom Camera System

I wish to share some images and thoughts from the Leica M Monochrom B&W ONLY camera system. I know that it is NOT FILM and a very expensive camera system, but it comes as close as you can get in a wonderfully usable B&W only system!

Most people will take a color image then convert it to B&W in post processing but it will never be the same as actually shooting in B&W with a digital or film system! Yes you can get close but you loose the amazing gradations and tonality that is part and parcel to world class B&W images.

Dugger Creek Falls, Linville, NC M Monochrom

Duggers Creek Falls, Linville, NC M Monochrom

The Pier on the top, is in the Outer Banks and is a 4 min exposure using a Leica Elmerit 28mm lens and the creek below is is in the New River Gorge in West Virginia. It is Dunloupe Creek and a 8 second exposure using the AMAZING 50mm Summilux lens. As you can see, the graduations and clarity are simply amazing. The water takes on a distinct Platinum tonality!

Why am I showing you these? Well at the end of the post I will give you a link for 2 videos where a Fuji X100T and a Leica M are compared for street photography and for a discussion on the Leica M B&W. The videos are quite entertaining and shows why sometimes a more expensive camera can be worth the money…

Sometimes!

Dunloupe Creek, New River Gorge WV, M Monochrome

It can be very hard balancing the desire between camera systems and affordability, but sometimes, with SPECIAL cameras the money takes a back seat. I own 3 Leica camera systems, and 1 of them I could have done without (Leica M240), another is an amazing film system (Leica M7) and then there is the M Monochrom. The Monochrom is scary amazing with crazy good B&W output to even consider shooting color then converting. I have NEVER considered the money spent on it to be wasted! In fact, I am considering selling/trading the M 240 but will keep the Monochrom and M7 film body along with most of my Leica and Voigtlander glass.

Glade Creek Grist Mill, Babcock State Park, WV, M Monochrome

For me shooting in B&W is a soul centering event. I take it very seriously and slow. When you consider how working in Monochrome strips away the confusion of color leaving the soul of the image then you can understand why I am looking for the very best way to capture the best possible image.

Shooting in color then converting to B&W works but is a compromise and will only give you a compromise image.
Shooting in film generates a purest form of B&W image and by far is the best way to do it but requires extensive time for setup, capture, development, wet scanning then printing! One roll of 120 film in the 6×7 format will generate 10 images. Processing takes about 45 min then it has to go into a film dryer overnight. Lastly, comes wet mount scanning which can take 1/2 hour per exposure. Now, I do not scan every image, I choose the very best images from the roll (usually 3 or 4) and only scan those. All in all there is about 8 hours of work involved with that single roll! It is a slow process to be sure but very fulfilling and leaves me with a great sense of inner peace.
Now, along came the M Monochrom camera from Leica, a full frame 19 mega pixel sensor with NO COLOR FILTERS over the image wells. This means that there is no anti-aliasing filter, and no brayer array. So effectively you get a 19 x 3 megapixel image (no brayer layer means every pixel well generate a true monochrome data value different from its neighbors!) which is crisp and has film like gradations that are difficult to differentiate from a film negative!

Roanoke Marsh Light, Outer Banks, M Monochrom

Aside from doing all of this in film (which I still work in all of the time) the M Monochrome (or its sisters) is the ONLY GAME IN TOWN! Hence, the cost of the system takes on new meaning since it is such a specialized digital system!

Sometimes I will put the film away and take out the Monochrom system. It is not quite the same as film in the overall process but it certainly is when the finished products are compared!

This is something to consider…

Here are the video links:

Dec 11 2016

One Perfect Image…

Sometimes we just have to stand there taking it all in!

Hoodoos in Bryce National Park at the Sunset Point Overlook. Olympus XA with Kodak Tmax 100 film. This is MY defining image for my entire trip!

Ahh, have you ever had one of those defining moments in life where you KNOW that you are witnessing something truly special that touches your soul? Well that is exactly what this was for me. We had been on the road for almost 11 days on a trip from Rapid City thru Wyoming and Utah. Our last stop of the trip was supposed to be in Zion National Park but we had to cancel due to terrible rain and flooding in the park. We extended our time in Arches which was really nice but it was not until I stood here in Bryce National Park at the Sunset point looking down into the canyon that I realized that I had made a mistake… I should have added onto the time there. We only had ONE day to explore Bryce and it was very nice there with many great vistas and rock formations, but this image at the Sunset Point was the defining moment for the entire trip for me.

Hood Valley, Bryce Canyon, Sunset overview, Sony A7rii

Understand, that I am NOT talking about either of the photographs captured and shown above, but rather the moment for me personally standing there taking it all in, becoming one with the scene, no camera, no thoughts of photography only the experience and impact of witnessing the greatness of the scene. I stood there for a good half hour drinking it all in and I will remember the emotional impact upon me for the rest of my life. Yes… it was that powerful.

There is some serious food for thought in this last statement. In these days of rapid fire digital photography don’t you think that we can quickly loose sight of what it is that we are trying to create in our art? Shooting in film slows you down which aids in the creative process. This is not to say that we cannot do this with our digital systems because we can and I do, but rather most of us who practice this art tend to “hurry, capture and move on to the next thing!”

Olympus XA 135mm

It was almost as if it was an afterthought that I actually took my Sony A7rii with me up the trail to the overlook and took a few images which were actually quite nice in color, but after the sensory overload of the scene I could only think of one thing, B&W and FILM. Yes, I could convert the color image above to B&W in post processing and do quite a good job of it but NOTHING can compare to what I can create with film! So, it was a bit of a walk back down to the car where my wife and 7 year old grandson were resting because of the long drive to get here, but down I went with only one task, to trade the digital for a TINY B&W film camera, the Olympus XA. The XA is the worlds smallest 35mm rangefinder camera. It has an amazingly sharp lens with easy focus, but the key is the fact that it is pants pocket (not those bulky cargo pockets but regular ones), it is light and handy.

I took so much camera equipment on this trip that the only space I had for a film system required that it be tiny. Against all of my experience I threw in this tiny camera along with just 5 rolls of Kodak Tmax 100 film and off we flew. I am so glad that I did now but having said this it is only fair to share that this was a colossal mistake. I should have made room for a medium format (120 6×7) camera and taken out a lens or two for the Sony. I have learned my lesson and will never repeat this mistake. Don’t get me wrong, the XA captured an amazingly detailed and sharp image. I love how it turned out. The Kodak Tmax 100 film along with the Perceptol developer generated a image (yes small) with tiny grain and great sharpness. Am I happy with the result? You bet! Would I have been happier with a larger 120 negative, OMG YES!! Can I have a do over please? Yes, I know, not to much of there ever being a chance for that.

So lets sum this up a bit shall we?

SLOW DOWN, take the time to really look at your subject! If you do this your chances of creating a world class image will greatly improve.
Look closely at what is in front of you, take the time to feel its emotional impact upon you and only then bring out the camera and with your skill and insight to the scene make the camera (nothing more than a tool) capture what you saw!
Think in both color and B&W. Remember though that B&W removes the clutter and confusion of normal color work. In my opinion, B&W allows you to capture the soul of the scene! So yes, take color but also take B&W, you might be surprised at how well you can do.
If you are working in digital only, during post processing work color first completely, save the image THEN process for B&W generating all of the mood that you possibly can!

Ok, this post is done. Get out there, shoot and create, but slow down and think about what and WHY you are doing it!

Nov 22 2016

Going Home to Mama…. Returning to Film!

The joys of returning to our photographic roots…

Murrells Inlet Fleet, Polaroid Type 55 4×5 film, Wet Mount Scan

Have any of you considered film photography?

There is something about working with film that is very calming which can center one’s soul allowing you to really connect with your art. For me it was like going home to Mama. The feeling of working with your hands as part of creating your art will make it more involved and enable you to to really influence the hidden nuances in your work. It will add a bit more complexity to your workflow but trust me it is worth the effort. The single largest change is forcing you to slow down in your creative process, it forces you to really consider every part of your workflow. It really is not any more difficult than digital photography, but it is a bit more involved.

Polaroid 900, Tmax 100 4x5 @ 64, Perceptol

Polaroid 900 with a Fujinon 150mm lens, Tmax 100 4×5 @ 64, Perceptol 1:1 developing

Take a really close look at the details in this image, click on it and look at it in the full screen mode. Look at the GEARING on the edge of the wheel. The detail there will take your breath away!

Film Cameras

Olympus XA 135mm

I have way too many film cameras to list them all, some really small like the Olympus XA which is the worlds smallest 35mm rangefinder and a joy to use.

I also have an Olympus RC 35 camera that is another fixed lens rangefinder. It is simple and fun to use and can be found for very little money. I have mine rebuild and given a bright blue suite that suites it quite well!

My Custom Olympus 35 RC

My Leica M7 Film Body

My last 35mm camera system is a Leica M7 system. It has interchangeable lenses and is one of the best built camera systems that I have. Couple it with the world class Leica lenses and you have an unbeatable 35mm system.

Confusion, Petri 7S 35mm, Eastman XX flim

Fuji GF670

Moving up to Medium Format 120 film systems I have three. I have the Voigtlander Bessa IIIw system that is 6×7 format and the Fuji GF670 camera (also sold under the name of Bessa III) with a longer 85mm lens (left & right). The 670 is my medium format travel camera of choice. Not only is it a functional camera with a built in meter but it is attractive and it always will draw a crowd when I get it out to use! Another nice point to the GF670 is that it folds down on itself to a thin easy to store camera in your bag!

Mamaya RZ Pro II system

And lastly the Mamaya RZ Pro II SLR ( Right) with interchangeable lenses and a world class metering system. This camera is large and heavy but easy to use and a very powerful camera system! I have a f/4 65mm and f/4 180mm lens for it. I also have both the waist level finder and a metering prism with spot and matrix! Like I said, heavy and big, but I use it for ultra long exposures on the coast with the Fuji Acros 100 film which has almost NO RECIPROCITY failure up to 140 seconds then only 1/2 stop after that! The film base is a little on the thin side but still my film of choice for long exposures.

Stormy Seas, Fuji GF670, Tmax 100, Perceptol 1:1, Wet Mount Scan

Polaroid 110 with 90mm lens converted to 4×5!

My 900 converted to 4x5 by Alpenhause Kamera Werke

Polaroid 900with 150mm Fujinon lens converted to 4×5

Moving up to 4×5 Large Format cameras, I have three. first I have a Shen Hao cherry field camera. Functional as it is beautiful. I rarely take it out, rather I am using a Polaroid 900 converted to 4×5 with a Fujinon 150mm lens and a Polaroid 110B camera converted to 4×5 with a Schneider Super Angulon 90mm lens. It is a beauty and very wide!

Yes, as you may have noticed, some of these cameras are quite large. This is due to the negative size. Let me give you some idea as to why digital cameras can never come close to the resolution of film.

Focus Test - Epson Wet Adapter Across 100 Perceptol 1:2 Springmaid Pi

Montreat Cascades, 4×5 Tmax 100 developed in Perceptol and wet mount scanned.

Lets start with medium format:

Medium Format 6×7 format makes an image 2 1/4 inches tall and much wider. Scanned at native resolution of 6400 dpi on an Epson 850 Pro scanner gives me a file resolution of 16452 x 19668 dpi or a print size at 300 dpi of 4.5 feet by 5.3 feet! This is huge.
Large Format of 4″ x 5 ” scanned at 6400 dpi (native) gives a file size of 29107 x 36070 dpi or a print size of 8 feet x 10 feet! There is not a digital camera system in the world that can come more than a small fraction of this!

Film

Film has turned wildly popular again in the past several years and many of the big film manufacturers have started increasing their film production lines again. This is especially true in the medium format lines (120) and 4×5 large format films! Film can be found in single rolls or in bulk almost everywhere again. The big box companies like B&H, Adorama and many others carry almost every type and format that you could ever want!

Processing in B&W has never been easier at home with eco friendly chemistry with no darkroom needed. Only an initial outlay of around $150 will get you started. Cameras can be found anywhere for next to nothing! You will need:

Dark Bag, a cloth bag that it light proof with arm sleeves that enable you to put your film, developing tank, reel an lid inside with your arms to move the film into a light tight developing tank!
Developing Tank, I recommend a stainless steel version.
Film Reels, I like the Hewes stainless steel ones.
Developer, comes either in a powder or a Liquid. I like Perceptol and/or Rodinal R09.
Fixer, to remove un-used silver
Liquid wetting agent to prevent drops to dry on your negative.
Clips to hang you film up to dry!

You can scan your film into your computer with a good Epson scanner like the 700, 750, 800 or 850. You can also buy an adapter for your camera allowing you to scan by photograph!

While I work in both color and B&W, digital and film I find time after time I pick up a film system and load it up with a good B&W film. The process of developing your film can really help you connect to your work as well.

I like several films, here they are in order of favor:

Kodak Tmax 100 in 35, 120 and 4×5, very small grain, good dynamic range easy to process
Fuji Acros 100 in 35, 120 and 4×5, very small grain, good dynamic range NO RECIPROCITY FAILURE, easy to process
Rollei IR400 in 35, 120 and 4×5, Infrared or normal B&W, good dynamic range, easy to process
Rollei Retro 80S in 35 and 120, amazing clarity and sharpness, good dynamic range easy to process
Eastman XX in 35, motion picture film used in B&W movies of the 50’s, smooth gradient transitions.

As an example here is the top image from last week of the fishing fleet taken on 20 year out of date Polaroid Type 55 monochrome instant film. The camera is also a Polaroid 900 that my daughter sent me years ago from a garage sale that I had converted to 4×5 with a Fujinon 150mm lens. A MOST beautiful camera in a bright new blue suite that is just fun to use. It is both rangefinder and ground glass focusing that forces you to slow down and really consider each and every image you capture!

The Type 55 film, even outdated, works flawlessly and generates amazing images where the edge markings add to the artistic impact of your subject

Pelican Dock - Type 55 4x5 Film, Wet Scan

Pelican Dock – Type 55 4×5 Film, Wet Scan

So what do you think? Are you tempted to try this out? It is easy. For starters, you can look at the continuing education departments at a local college or hight school. Most offer B&W film photography with darkroom work. This will teach you enough to allow you to determine if you would like to further investigate this wonderful medium!

You can also contact me and request info on one of my film workshops held in Pawleys Island SC. I would love to have you and share this amazing link to our past!

Please let me know what you think of this post!

Apr 25 2016

Out And About With Film….

Wandering the shrimp fleets of Georgetown with my Voigtlander Bessa III 120 film camera….

Voigtlander Bessa IIIw 120mm camera system

Yep, early this morning I grabbed the bag with my wide angle 120mm camera system and headed out to Georgetown where I was going to spend a bit of time with the shrimp fleets and some film…. I chose the Voigtlander Bessa IIIw system. It has a 55mm lens on it which at 6x6mm equates to around 35mm and at 6x7mm to 30mm. This is pretty wide and allowed me to capture several very wide angle shots of various shrimp boats around the water front.

One of the other things that I do when shooting film is to keep a accurate written record of the exposure data for each and every frame. This assists in keeping my process the same once I get the proper exposure, contrast and desired grain for each of the film types I use.

I enjoy this camera system very much. It has a lot going for it specifically its 6x7mm negative size which makes for some pretty big scanned files when all is said and done. I also like the fact that it is a rangefinder which pretty much defines my youth and what I had learned to use when very young! It is not too heavy, has a leaf shutter which is totally silent and goes up the 1/500 second for exposures. This could be a little faster but I can work with it. A 120 roll of B&W film gives me 10 exposures at 6×7 which is the format I like the most.

Rodinal One Shot

I normally use stand film processing with Rodinal at 1:100 ratio with water, a water bath then the 1 hour processing and normal fixing and a wash, but for these rolls I am going to use Ilford Perceptol ultra fine grain developer in hope of a sharper image with greater contrast. So, we will see next week how this new combination works for my finished film!

Stand processing is not dependent upon chemistry temperature, ISO or even Film type! You put the film in its can, give it a 5 min water wash, then pour the developer in, gently agitating for 1 min then letting it sit for another 60 min!, Water Stop, since and done! But there are trade offs with Stand processing, namely Bromide Drag which is shown as the slightly darker vertical streaks in the image below. These come from the developer chemistry being exhausted.

Voigtlander Bessa IIIw with Rollei IR400 120

Jordan and his film camera

So with the Perceptual chemistry (6 min develop time) I will not see Bromide Drag and it is supposed to give sharper smaller grain and higher contrast. So instead of a 1 hour develop time we are looking at 6 min now, sharper negatives with higher contrast! We will see….

I will hold of processing these images till the first weekend in May so that my 7 year old grand son come come with me to the studio and process his own 35mm film at the same time! Yes, I am teaching him how to photograph and process film! You gotta start them young so that they catch the film bug!

Cooking the film!

Come on back in a few weeks to see the results of todays outing!

Dec 10 2015

How to Adjust White Balance In Lightroom

Another good post from my friend, colleague and student, Rhonda Griscti. Her post this time is on understanding White Balance. A good read to be sure!

My Leica Travels

Why should you care about White Balance? Because a proper white balance is how we get the colors in our images to be as accurate as possible. Why would you need to get the color right in your shots? You might have noticed when examining shots after taking them that at times images can come out with an orange, blue, yellow etc look to them – despite the fact that when you were taking them the scene looked quite normal. The reason for this is that images different sources of light have a different ‘color’ (or temperature) to them. Fluorescent lighting adds a bluish cast to photos whereas tungsten (incandescent/bulbs) lights add a yellowish tinge to photos.

We don’t generally notice this difference in temperature because our eyes adjust automatically for it. So unless the temperature of the light is very extreme a white sheet of paper will generally look…

View original post 305 more words

Nov 6 2015

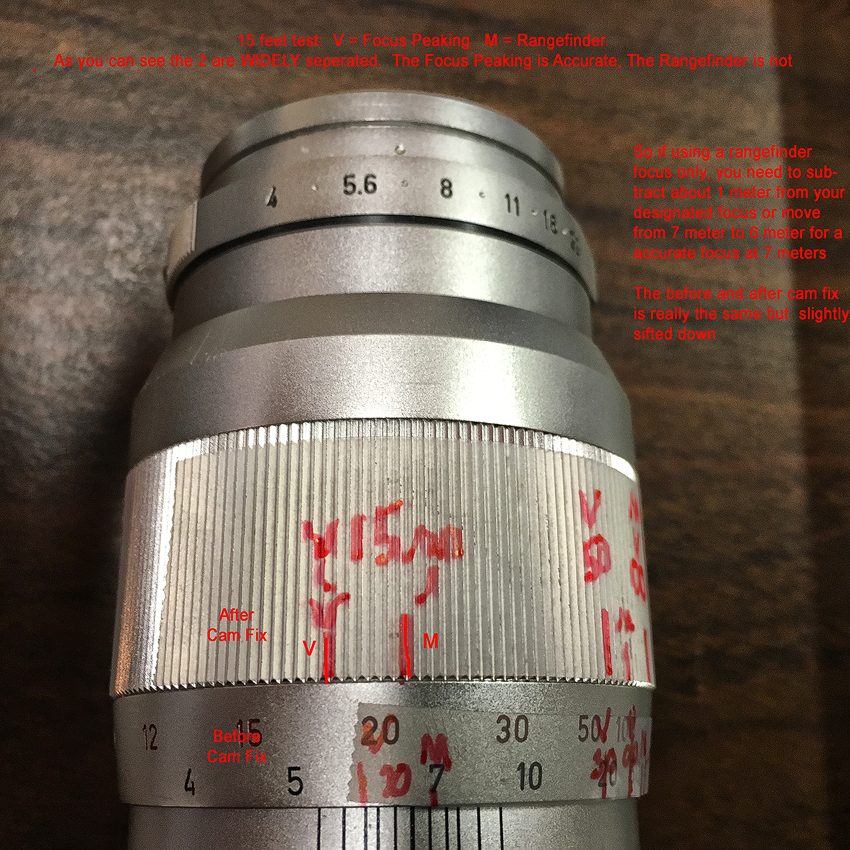

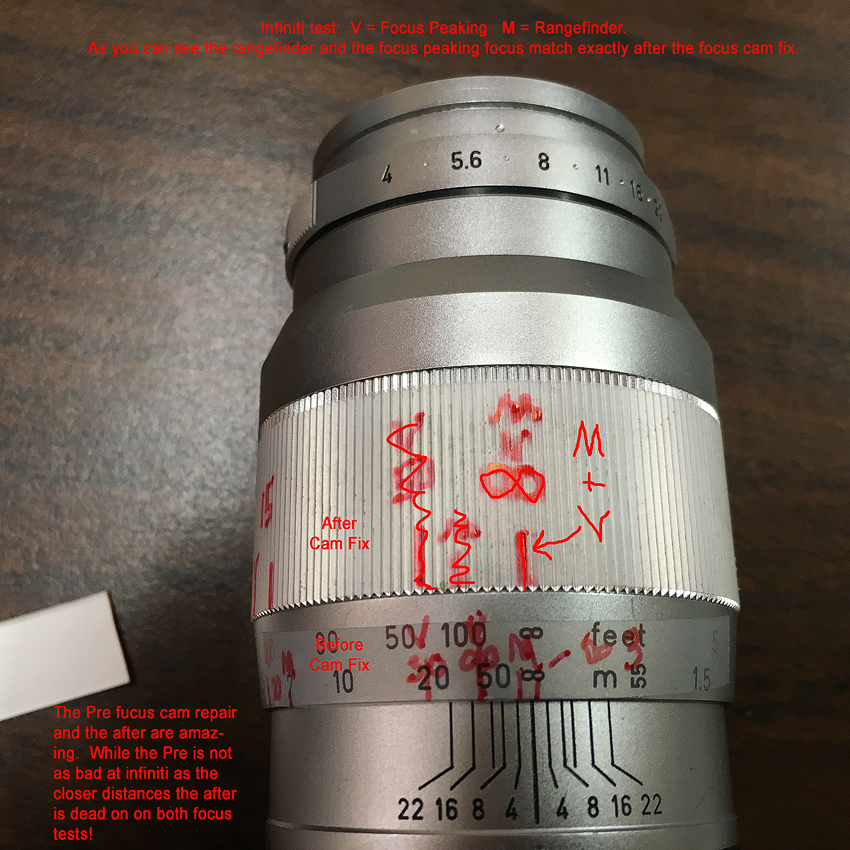

Overcoming the Back Focus issues of the Leica 135mm M mount lens…

Yes, HOW could such a high quality Leica Lens be so problematic….

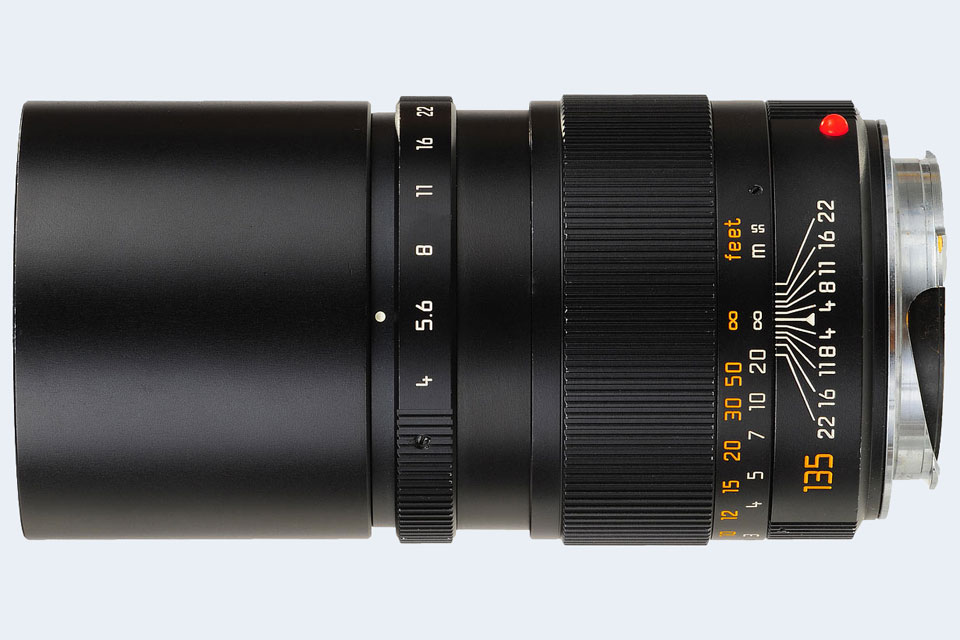

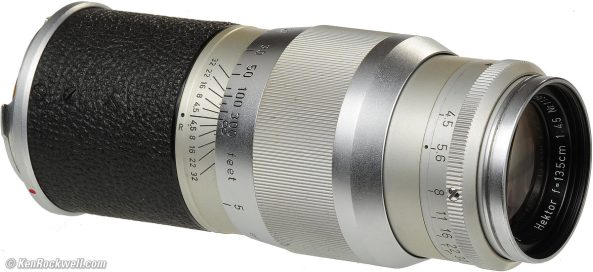

Leica 135mm

In todays world of modern digital camera systems, the Leica M 240 really stands out above the others. One of the reason for this is the duality of an electronic viewfinder with a robust peaking focus system coupled with a real range finder focus as well! This makes this camera IDEAL for mounting any lens that can be manually focused with reasonable expectations of good focus!

But what happens if you have some of the older Leica systems like the M9, Monochrom, M8 or a film body like the M7? Should we not be able to expect the same focus quality of the M 240 using the built in rangefinder?

Well for ALL of my Leica and Voigtlander glass this has been a truism until I met the famously hard to focus 135mm lens. Now understand that this lens has been through 5 (FIVE!!) versions and each and every one has had the same bad press on their inability to sharply focus! If you ask Leica about them you are told to set your aperture to f/11, focus and shoot hoping that the DOF will overcome the shortcomings of the focus cam system inside of the lens!

Now, I badly desired a longer reach lens with a M mount but was convinced that I could not overcome the focus issues with these lenses. So one of my students from the Arcanum (a online photograph school) had one of the 135s and sent it to me to experiment with. It was one of the older models, looked kind of funky but had a tripod mount on the lens! Reviews of ALL the 135s said that this model was the best one for the money!

So with the lens on camera (M 240) I set out to test the rangefinder focus vs. Electronic focus with peaking…

Suffice it to say that the lens BACK FOCUSES so badly that unless you are shooting at f/11 or f/16 you have very little chance of a sharp image! I focused the lens using the range finder then again with the electronic peaking system and discovered the following failure:

7 meter subject. The lens needed to be adjusted to 6 meters to be in focus!
50 meter subject. The lens needed to adjusted to 20 meters to be in focus!
Infinity subject. The lens needed to be adjusted between Infiniti and 50 meters!

The adjustments were the difference between the rangefinder focus and the peaking focus!

Well….

If you were to turn over and look into the mounting flange on it you will notice that there is a focus cam that moves up and down as you focus the lens. This is NOT adjustable! But… I had an idea!

Enter High Tac Copper Tape…

High tack copper tape

Tape Application Leica 135mm

What if…

What if I were to tape one or two layers of this really sticky copper tape onto the end of the focus cam? Could I at least get the infiniti focus point dialed in?

YES! It can be done!

So, I ordered a very thin roll (1/2 inch) from Amazon, cleaned the cam and cut 1 thin sliver of the tape and applied it to the end of the cam and redid my focus tests!

After cleaning the cam with Alcohol I applied the tape, smoothing it down with a wooden dowel and allow it to sit for an hour giving the adhesive a chance to cure.

Mounting the lens again onto my M 240 I re-ran my range finder and electronic peaking focus tests on the same subjects and distances! I carefully (on a piece of tape attached to the lens marked the two focus marks for each test on the lens so that I could visualize both the size of the focus error as well as where it was on the overall focus scale.

Here are my results with only ONE layer of copper tape. I knew that my target was to get my infinity focus dead on and that the closer distance focus points would still be off but hopefully by smaller amounts.

Test data is marked on the lens showing both RF focus/Electronic Peaking focus points. The peaking points are dead on and hopefully we could bring the two closer together!

If you look at these points you will see the non cam taped focus dat on the bottom and the corrected cam data on the top. The V stands for Electronic Peaking and the M for Range Finder focus.

7 Meter Focus Tests…

7 Meter Focus Test Leica 135mm

So for the non corrected cam we see a subject at 7 meters as focused with the rangefinder, but with the Peaking focus it is moved down to 6 meters to be sharp! This is a 1 meter difference and unless you are shooting with a small aperture you will get a very soft focus! When we do the test after the cam change the difference between the range finder and peaking is actually a bit wider. This was expected…

Now, The 50 meter tests…

100 foot focus test on Leica 135mm

As you can see on the uncorrected cam side focusing at 50 meters on the rangefinder we needed to adjust down to 20 meters… That is WAY OUT OF RANGE! Yet at f/11 we can get it into focus!

With the corrected cam the difference between the range finder focus and the peaking focus gets closer together at about 30 meters which is a 10 meter reduction of focus error! Better and better!

Infinity Focus Test

Infiniti Focus tests on the Leica 135mm

Ahh, the pre cam measurement using the rangefinder sets the lens to the infinity as expected but the peaking focus sets it down about 1/3 of the way towards 50 meters. Way off to be sure but small than before.

BUT…

The corrected cam BOTH THE RANGEFINDER AND THE PEAKING focus match at infinity!! We are now dead on on the far end of the lens!

What this means is that knowing the differences between the rangefinder and peaking that we can adjust the 135mm lend down about 1/3 of the way between the major distance measurements to get much closer to being dead on. As long as we shoot at a reasonable aperture (f/8) we can be reasonably assured of a sharp focus!

I have found that these measurements are the same with the current Leica 135mm as well!

So there you have it. The online posts of issues with these lenses have been endless over the years. They are known as very difficult lenses to get a sharp focus with and now we know why and more importantly how to overcome it!

I hope that you enjoyed this discussion on what could be a very nice and powerful lens to have in your bag!

Mar 16 2015

The Purity Of B&W

Going Home To Momma…

Don’t you have the feeling sometimes of not reaching that creative high so that when you return home you are almost like an empty husk?

Well me too, and sometimes I really need to stretch my artistic legs. Going out with a Color Camera will just not get the job done and leaves me feeling empty. Working in Film is a lot better and scratches an itch that I just cannot reach otherwise… But when I am really feeling creatively down and mentally cramped I usually turn to my Leica M Monochrom system.

Duggars Creek Falls, Boone, NC. Leica M Monochrome

Working directly in B&W is a soul expanding exercise that will re-inflate my creative side quickly and effectively. I am the type of photographer who can actually think and see in B&W. Actually generating those images in the field with a capable B&W rangefinder system really is like going home to Momma. It leaves me with that ohhhh feeling, or is it OHHHHH… Yep, that is the feeling that I am talking about!

First, I LOVE shooting with a rangefinder camera system. ALL of my cameras are rangefinders except for one little Fuji XT1 that sits in my camera bag rarely used unless I take it out for lightning shots. I just love the feeling of using a rangefinder! I am not kidding about the feeling of going home to momma! They take me back to my early days of photography when a rangefinder was all that I had and used. They were and still are a nitch camera system. You generally will not find someone out shooting birds in flight images with one, but that is OK with me because after 50 years of shooting, I am soooo TIRED OF BIRDS (well except for hummingbirds but I can do those just fine with a rangefinder).

Outer Banks Fishing Pier, 250 second Exposure Leica M Monochrom

So what makes me smile about the M Monochrom? The ease of use, the CRISP release of the shutter, the incredible functionality of the camera and its wide dynamic range! I love the way it feels in my hands and responds to my control! I even love the sound of it. It is almost sensual in nature! Now, couple that with the amazing images that a pure B&W 18 mega pixel sensor with NO Brayer filter and no anti-aliasing filter can create you will be left breathless with the results.

So for this simple and short post about achieving emotional nirvana, I will keep it to just 2 images that make me feel good. Now that I am creatively re-inspired I can go out again with my color camera (rangefinder of course) and while looking at my scenes in B&W create color images again!

Thank you for stopping by for a visit to the blog…

Mar 6 2015

Gold Toning Van Dyke Brown Prints

“Oak Reflections in Infrared” Gold Toned Van Dyke Brown Prints on Lana Aquarelle 140lb HP paper

Who knew Gold would be so cool?

After experimenting quite a bit with washing my un coated Lana paper with a 2.5% wash of Citric acid and distilled water and discovering that ALL of my paper issues fell away that the Dmax of my paper/print would so radically improve! Though I do have to admit that pre washing the paper adds 2 entire days to my workflow and is a LOT of work. I recently ordered some Fumed Alumina powder from Bostick & Sullivan as an alternative to acid washing. B&S says of Fumed Lumina:

A small quantity of fumed Alumina is rolled on to a piece of paper with a dry high density foam paint roller. It spreads evenly on to the paper leaving a velvety surface to the touch. The paper can then be coated with a platinum/palladium solution, dried, exposed and developed in the standard method. It is suspected that the Alumina can be used for other hand coated photographic processes like cyanotype, van dyke, Kallitype, and similar processes. It has already been tested with great success with albumen prints. The coating acts as a sizing enhancer and appears to protect the emulsion from alkali buffers. Contrast increases but appears largely to be due to enhancement of the blacks.

Anderson Mill, Gold Toned Van Dyke Brown Prints on Lana Aquarelle 140lb HP paper

So, this then is the great experiment of March! I will report back on the measured effect as it applies to my process in the next post!

Now, onto the reason for this posting, Gold Toning of Van Dyke Brown prints! Now that I am getting consistent prints from my acid washed Lana Aquarelle 140lb HP and Stonehenge papers I wanted to explore increasing the Dmax further by Gold toning. Rather than mixing my own gold toning solution (basically I am very lazy) I decided to purchase Bostick & Sullivans Gold Toning liquid solution. This is simply 2 bottles of a chemicals, solution A is 2% Ammonium Thiocyanate and solution B is .2% Gold Chloride. You mix 50ml each of A and B with enough distilled water to make 500ml of working gold toner. Easy peasy, no powders to measure and mix. B&S says that you can replenish the solution by adding 5ml of the Gold Chloride for each 8×10 print you tone. I do this in the toning bath but when finished I am thinking that I need to throw it away and treat it more like a 1 shot toner. Since the cost of the Gold Toning kit is so reasonable from B&S ($45) and will make such a large amount of working toning bath 10 bottles of 500ml working bath I am inclined to do so.

Magnolia Blossom, Gold Toned Van Dyke Brown Prints on Lana Aquarelle 140lb HP paper

The reason for this is simple. It has to do with the processing sequence:

Expose your coated paper.
1st water bath with 2000ml of distilled water and 1 tsp of Citric Acid for 2 min to remove excess sensitizer (yellow Stain) from the paper and to help prevent emulsion wash off.
Gold toning bath, watching for toning in the mid tones and highlights to indicate finish.
2nd water bath with 2000ml of distilled water and 1tsp of Citric Acid.
Fix.
Rinse in tap water for 30 min.

Stormy Seas on the dock, Gold Toned Van Dyke Brown Prints on Lana Aquarelle 140lb HP paper

The issue for me with replenishment of the gold toner solution is that even the TINIEST amount of citric acid will destroy the toning solution. So this means that between step 1 and 2 I have to insert:

1b. Plain tap water bath for 1 min to remove Citric Acid.

Since the Citric Acid will destroy the gold toner and that there is very little chance for me to remove most of it prior to toning then there is the very likely chance that it will be ruined even with a plain water bath prior to toning!

The acid problem with the gold toner is the only real issue to its use. I really do not want to have to put the print into my print washer for 5 min to clear all of the acid so a 1 shot toning bath for about 3 images seem a good trade off to me. Time will tell!

I hope that you have been paying attention to the images spaced through out the post. All of them have gone thru the gold going process and with the exception to the last one I did not add any more Good Chloride to the bath. Because of this you can notice that with the exception of the 1st and last print each print after the 1st look more brown as we progress down the line! With the last one I added 25ml of the gold to bring the bath back up to strength and you can see the difference. You can tell that it is run down by how long it takes for the toning process to complete to the point where you like the results. I have been told by friends online that I could have taken the toning process a bit further. The thing about gold toning is that the gold replaces all of the silver in the print which shifts the print colors from dark brown to a very platinum looking black. You can even get a bluish tint in the dark tones of your print!

I think that the toning process is VERY worth while and highly recommend that you give it a try.

The next post should be on using the Fumed Alumina as an agent to overcome a non-acidic paper coating as well as increasing the prints Dmax!

Feb 10 2015

Van Dyke Brown Paper Experiments…

Fixing Paper Problems For Van Dyke Brown Printing

Van Dyke Brown, Dinghys, Rising Stonehenge Paper

VDB, Revere Platinum Paper & Spots

In my recent printing of the 1840 Van Dyke Brown prints, I have experienced a lot of dark spots on my prints. I ordered several types of papers to try to see if it was a paper problem… I have been using Revere Platinum paper which is easy to coat (provided you use Tween 20 in the emulsion) and gives great tonality but seems to ALWAYS have dark spots all through the print!

Look closely at the image to the right. You will notice dark spots (look above the light) that go completely through the paper! This has been driving me nuts and nothing that I did to try and fix the issue ever helped.

I ordered several new papers plus tried several others that I had on hand:

Arches Platine (on hand) I have issues coating this paper even with Tween added to the mixture. It tends to sit on the surface with no absorption into the fibers which causes it to wash off instantly in in the first water bath in long stringy tendrils of emulsion. Very little is left on the paper so it has a light chalky appearance. This paper just does not work for me in Van Dyke Brown. I keep hearing online about how much other Van Dyke Brown printers like this paper but I just do not see it…
Cot 320 (on hand) This paper is a little better than the Arches paper in that it holds the emulsion a little better but is still washes off the surface in the 1st water bath! It is usable for Van Dyke Brown printing though… It has been recently suggested to me that I soak this paper in a 10% citric acid bath, wash it and dry it in order to get better surface adhesion and a higher Dmax. I will try this in a week or two.
Heavy Kozo 90 gsm (on hand) Bostick & Sullivan states that this paper will work great with Van Dyke Brown. The paper is made from 50% kozo and 50% abaca. Kozo is the inner bark of mulberry tree seedlings, producing a naturally white paper fiber which is very strong and long lasting. The paper looks very promising and fun to work with especially the ultra thin version that I chose to NOT work with due to it being extremely thin and the requirement of special tools to handle it. I have seen videos of artists using it which is why I decided to purchase a few sheets to experiment with. But I have not had time to work with it yet. So look for a post specific to this wonderous paper in the future!
Revere Platinum (on hand). This paper coats wonderfully with the addition of Tween and the emulsion does NOT wash off in the first water bath! It gives wonderful deep tones and color. The only (MAJOR ISSUE) problem with it is that it gets white and brown spots all over the paper that goes completely through the paper from front to back. These spots can totally ruin the print… I have tried everything that I can think of to fix this issue as I really like the paper but I am at a total loss.
Rising Stonehenge (new) This paper coats great with Tween and does not wash off. There are no spots and the adjustment curve matches the one for Revere! It is a thinner paper and seems easy to damage during coating. It takes less emulsion to coat the same size as the other papers. I did find that the emulsion migrates from the coated areas to the white around the edges. I have no idea as to why but I think that if I lower the number of drops that I use for coating that it might take care of the problem. It generates a fantastic deep brown warm tone across the image and I love the final prints on it. This paper is readily available on Amazon as well as many other locations.
Lana Aquarelle (new) All that I can say about this paper is WOW! It coats and prints the Van Dyke Brown images with amazing density and tone. It coats easily with Tween and is a heavy paper with not spotting or migration issues. This is going to be my main paper as long as I can get it. So far the only place that I have found it is at Bostic & Sullivan. The curves for the Revere paper work perfectly with the Lana!

Lana Aquarelle Paper Notes

Lets first talk about the Lana Aquarelle paper. This paper is simply amazing! It coats very well with both the brush and a glass rod as long as you add a little Tween at 25%

For a 8×12 print:

Using a glass coating rod for a 8×12 print it takes 36 drops of VDB and 2 drops of Tween 25%.
Using a Synthetic Sable brush it takes 72 doors of VDB and 2 drops of Tween 25%.

Once coated, I let it AIR DRY for 30 min then expose in a 12 bulb UV box in a vacuum frame for 2 to 4 min depending on the paper and negative. Usually the base exposure time is 3 min.

Van Dyke Brown, Berry Mill, Lana Aquarelle Paper brush coated

As I said the results from this paper is a nice warm print with great density in the black areas and the edges.

I coated four pieces of paper yesterday, two with a glass coating rod and two with a synthetic Sable brush. Both methods worked very well and gave nice even coatings. The image above was a applied with the Sable brush and the one below was coated with a glass rod.

Van Dyke Brown, Lana Aquarelle Paper Glass coated

Notice in the image above if the lone dinghy that there are NO spots at all. The paper was clean on the front and back and gave a nice density in the dark areas! This paper is very heavy and after coating it will want to curl a little but will flatten in about 5 min. Let it dry for the full 30 min in the air and do not use a hair drier.

Rising Stonehenge Paper

For a 8×12 print:

Using a glass coating rod for a 8×12 print it takes 26 drops of VDB and 2 drops of Tween 25%.
Using a Synthetic Sable brush it takes 65 doors of VDB and 2 drops of Tween 25%.

Rising Stonehenge Paper is another good paper for the Van Dyke Brown process. It is a MUCH lighter weight paper than the Lana paper but it really does not cost any less! You can find it on Amazon which means free shipping. The shipping charges from B&S are going to kill me, with the average cost for paper being around $20 per order! This is what makes Amazon so great, but they just don’t carry all of the papers that I like to keep on hand…

Van Dyke Brown, The Old Truck, Rising Stonehenge Paper

So far, my work with Rising Stonehenge has been very good. It coats evenly and the emulsion soaks into the paper fibers nicely. The print is very dense and nice dark areas. The paper is quite thin and I discovered that the surface is easily damaged during coating. Since the surface requires much less VDB emulsion I will reduce it the next time I coat (I used 36 drops of VDB and 2 drops of Tween for this test coating) and the surface damage will likely go away due to the glass rod not going across the paper surface more than 4 times ( for 36 drops the coating rod required 8 trips across the paper surface) thus reducing working the papers surface too much and causing damage.

One small problem with the paper that I discovered was that the emulsion has a tendency to migrate from the coated areas to the uncoated areas giving a grey shadow around the image. If you look closely you can see actual small spots of it surrounding the coating. This is really no big deal but I am unsure as to why this is happening.

I will continue to use this paper because it generates VERY WARM BROWN in the print and I just love the look of it!

Now, it has been suggested that I soak or pre coat the paper with an acid bath of 10% citric acid for a 1 or 2 min, then wash the paper and allow it to dry before coating. I am told that this will vastly increase the papers Dmax! I am going to test this next time I print!

The image at the top of this post was also printed on Rising Stonehenge paper!

Bergger Cot 320 Paper

The Cot 320 paper is a very nice, smooth paper. I love the look and feel of it. BUT, for Van Dyke Brown it has a problem in that it will not readily absorb the VDB emulsion into the paper fibers. Even with Tween added to the emulsion, it is not enough. What happens is that in the first water bath after exposure the majority of the emulsion washes off in thick tendrils of brown goo. Unlike the Arches paper, enough is left on the paper to still make for a good (not great) image.

Van Dyke Brown, Das Boots, Cot 320 Paper

There is enough promise from this paper that I am going to experiment further with this paper by washing the paper with an acidic solution of citric acid and distilled water, brushing it on and letting it soak in for a few seconds then washing the paper again with distilled water. Once it dries and I will flatten it in a low temp heat press and coat the VDB on it. I think that this will break down the surface coatings enough for it to accept the emulsion better and increase the papers Dmax.

Van Dyke Brown, Stormy Sky, Cot 320 Paper

I will report on this more in the future.

OK that is all for this post. I am not going to report on the Arches and Revere papers as I have discussed them in the previous two posts.

I hope that you got something out of the info here! Let me know…

Jan 25 2015

Continued Work In Van Dyke Brown Alternative Print Process!

Perfection in Brown…

Glade Creek Mill, Van Dyke Brown, Revere Platinum Paper exposed for 5 Min

Oak Reflections in Infrared, Van Dyke Brown, Revere Platinum Paper, 3 Min Exposure

After another 2 weeks working on the negative density, I have finally gotten to the point of good negatives, not great yet but I will get there. I have to master the use of UV blocking color in the negative for them to be perfect and that is a project for the future. To date though I have reached perfection using normal B&W negatives.

My CORRECTED Digital Negative for the Van Dyke Process

Here is the corrected negative that I used in the image of the Oak trees above. It is much dense and has been corrected for the mid tones as printed in the Van Dyke Brown Process! It has much greater contrast and required only a 3 min exposure in my UV unit.

One thing that you have to remember when making your UV exposures is to place the ink side of your negative down on the paper surface. If you reverse this the picture will be backwards, but more importantly, the UV light will burn the ink surface and ruin both the negative and the print.

B&W Negative for Van Dyke Brown Print exposure calculated for 3 Min.

Compare it to the negative on the right. This negative was used in the previous post here where the image printed much darker and with less mid tone data. Take a close look at the difference between the two negatives, the first has much brighter areas for increased black contrast and more detail in the trees. The difference is amazing and was easily achieved by the process discussed below…

Here is a small copy of the print generated by the 2nd negative from the previous post. Notice how much darker it is and that there is no detail in the mid tones of the image! It only took me a short while to create the Gradient Map from the process that I learned in Peter Mrhar’s book below.

Van Dyke Brown Print, Over Exposed by 2 stops due to the uncorrected negative

Easy Digital Negatives is another remarkable book by Peter Mrhar

Easy Digital Negatives is another remarkable book by Peter Mrhar that I use in the creation of my negatives. It enables you to easily create Gradient Maps to adjust the mid tone values of your negative tailored to the alternative process that you are printing with! I highly recommend this text over all of the others!

There are several good books on Digital Negatives out there but As I said the is the easiest that I have read and used plus the results of using a Gradient Map over a Custom Curve. I suggest that you purchase several texts and try them in your workflow to see what works best for you!

I hope that you enjoyed this short post on the Van Dyke Brown Process. You can look for more about it in the future!

Jan 19 2015

One Image, One Paragraph…

My favorite image from my visit to Georgetown today…

Stormy Seas… Calm Dock…

I had to sit in the Georgetown gallery today. On my way there I stopped at Stormy Seas, my favorite shrimp boat in the area. I had the Leica M Monochrom with me and the Tri-Elmar 16-18-21 mm lens on it as well as the FRANKEN-VIEWER which enables me to compose the image with ultra-wide lenses on the Monochrom. Did I mention that the Leica M Monochrome is a B&W ONLY camera system? The sky had this amazing gradient across it going from dark gray to bright silvery light on the horizon and the water that you could slide across… Oh My, the water was so perfectly smooth and mirror-like that I stood there stunned with camera in hand just hypnotized at the magic and taking it all in. But alas, I only had a minute to spare so I took 3 differently composed images at -1ev, f/11 and 1/1500s. This is the result: a simple, well balanced image, so full of tonality that it is dripping from the bottom all over my feet….

Enjoy while I clean my shoes…

Jan 19 2015

Van Dyke Brown Printing, 1842

A new (read OLD) way of printing!

8×12″ Van Dyke Brown Print

Alternative Printing from History!

Van Dyke Brown is an early photographic printing process. The process was so named due to the similarity of the print color to that of a brown oil paint named for Flemish painter Anthony van Dyck.

The Vandyke brown print is based on the first iron-silver process, the argentotype, invented in 1842 by the English astronomer, Sir John Herschel. Both processes utilize the action of light on ferric salts and their chemistry is very similar. The Vandyke process gets its name from its similarity in color to the deep brown pigment used by the Flemish painter Van Dyck. Vandyke brown prints are very simple and economical to make, with the sensitizer consisting of three readily available chemicals. Clearing is carried out in water and fixing is done in a weak solution of hypo.

Van Dyke Brown Step Wedge Calibration Chart for 3 Min Exposure

As you can see, this is a very early way of printing developed a long time before our current Silver Salt paper process. The images are a deep brown instead of the normal black and white that we are used to seeing. They are somewhat easy to create provided that you have done your homework and created the proper calibration images to create a calibration Gradient Map or Curve to apply to your negatives which adjust them for loss of mid tones in the printing process.

This is strictly a CONTACT PRINTING technique that requires a true negative that is placed on top of paper that YOU as the artist coat yourself with the Van Dyke Brown emulsion that you mix from simple chemistry! The coating process is done with a special brush that requires a very light touch or a glass coating rod that you use to push a line of liquid emulsion across the paper.

B&W Negative for Van Dyke Brown Print exposure calculated for 3 Min with the calibration applied.

The liquid emulsion is measured by the number of drops from a glass eye dropper into a small glass then with a drop of two of a wetting agent like Tween 20 to help the coating process. The paper/emulsion is allowed to dry then the negative which was created using my Epson 7900 printing on transparency material is placed on top of the coated paper. This sandwich is then placed in a printing box filled with 12 Fluorescent Black Light tubes which then expose the paper with UV light. The exposure for the current paper I am using (Revere Platinum) has been calibrated to 3 or 4 min based upon the test chart above.

Van Dyke Brown Print, Over Exposed by 2 stops.

Van Dyke Brown Print, Over Exposed by 1.5 stops.

This process is a POP process in which the image after being exposed can be seen on the paper once removed from the UV box. It is orange and yellow in color. It is placed in 2 consecutive distilled water baths that remove the yellow and darken the orange. Then it is placed in the fixer solution (Sodium thiosulfate) for 2 min. When the image is placed in the fix, it IMMEDIATELY changes from orange to a very dark brown and white picture. Finally the print is placed in a live water wash for 30 min then dried!

This is a simple process that creates beautiful images that will leave you breathless as you view them! I am going to further develop and learn the process over the next month or two before I start on mastering the Platinum/Palladium printing process as well!

Look forward to many more posts on the processes as I master them!

Jan 6 2015

More Leica M Monochrome Magic!

Creating World Class B&W Images With Leica Monochrome

Bodie Island Light, M Monochrome

In my continuing love affair with the Leica M Monochrome camera system I have learned more each day towards creating amazing etherial B&W art… Keep in mind that I have been shooting B&W film (35mm, 6×7 and 4×5) for several decades and know and understand the process very well. But using the Monochrome is such an easy progression that it seams as though the camera is leading me down this path on its own. Yes there is some small post processing to be done using Nik Filters Silver EFX and once in a while I will add some Viveza as well, but for the most part it is almost perfect out of the camera as long as you get the exposure correct in the shooting!

Leica Tri-Elmar 16 – 18 – 21 mm Lens

In the image below of the shrimper Stormy Seas, I used the Leica Tri-Elmar set in 16mm. There is no image distortion from such a wide angle and it is sharp with good depth of field. When using this lens on the Monochrome you are forced to use the frankenstein viewfinder that you purchase with the lens but that is a small price to pay for such a useful lens. I also have a Voigtlander Hellar 12mm lens in the camera bag and it works very well on the Monochrome and uses an external 12mm viewfinder, but it does distort the image slightly due it its wideness but you can correct for that in Photoshop. The thing about the Tri-Elmar is that it replaced 3 separate lenses that were stolen with one small lens!

Stormy Seas Shrimper, M Monochrome with Tri-Elmar at 16mm

Using a fast lens like the 50mm Summilux ASPH for the image below of the Roanoke River Lighthouse allows you to hand hold on dark or stormy days and still get crisp images that jump out at you! For this image I also had a yellow filter attached to bring out the structure of the clouds. This is one of the HUGE pluses of the Monochrome in that it reacts to the standard B&W filters the same way as film does!

Roanoke River Lighthouse, M Monochrom

But as always my main use for the camera is long exposures which is where my true love lives! Being able to take ocean shots and smooth out the waves is exciting beyond words and the Monochrome does a great job of it with its 4 min bulb limit. Look at the image below of the (another version) Roanoke Marshes Light House. I was there when the light was on and each time it circled it created another slightly offset star effect. It allows me to create images full of wonder and depth!

Roanoke Marshes Lighthouse with operating Light, 16 second exposure, M Monochrome

The implied stillness of the water with the graduated reflections create an image full of mood and depth. This is one of my favorite images of this Light House and the fact that during the 16 second exposure the light revolved around 3 times to generate 3 slightly offset star patterns just add more mood to it. This particular shot was done with a B+W 103 3 stop ND filter to allow the longer shutter speed at f/8 for sharpness with the 50mm Summilux ASPH lens!

Now let me share a detail shot of a fishing boat just up the island from the Light House. It is simple yet tells a complex story of the boat and job.

Fishing Float, M Monochrome

I love the textures of the image and the sharpness. The texture on the surface of the individual floats are great and perhaps would have been better served by a closer shot. It was taken with the Macro Elmar 90mm lens (a great lens to invest in) and was done on the tripod!

Mushroom, Macro, M Monochrome with Macro Elmar 90mm plus macro adapter

Really Right Stuff TF-01 and Ball Head

Continuing with the 90mm Macro Elmar I give you a closeup image taken just as I left the Outer Banks. This mushroom is only about 2 inches tall and I had to lay down under a log to get it. Yes a tripod was used but it was the Really Right Stuff table pod which is an amazing tool to have in your kit for just this sort of work Look at the textures on the bottom and stalk of the mushroom. This 90mm lens is the only 90 that I will ever buy for my Leica cameras!

Really Right Stuff TF-01

I hope that you enjoyed this last dedicated post on the Leica M Monochrome camera. I will have many more images to share from it in the future but I think that you are likely getting tired of dedicated posts!

Thanks for taking the time to view these!!

Jan 3 2015

Leica M Monochrome Magic….

A new camera come homes to live!

Leica M Monochrome

About a month ago, my truck was broken into and a camera bag was stolen with several Leica lenses, cameras and accessories. After the insurance was paid, I purchased the amazing Leica M Monochrome and the Tri-Elmar 16 – 18 – 21 mm lens to replace 3 missing lenses and 1 camera.

The M Monochrome is truly an amazing camera and the images are beyond stunning! I have found that I actually enjoy using it more that the M 240. So far, I have used it for ultra long exposures in the Outer Banks, family pictures of my grand children during Christmas and on a just completed trip to Boone, NC for the New Year. I am NOT going to do a review here rather I will just show the capabilities of this camera system while photographing my favorite subject matter!

Duggars Creek Falls, Linville, NC 32 second exposure, 6 stops of ND

Leica Macro-Elmar-M 90mm f/4

The water fall image above was taken on 1 Jan 2015 at Duggars Creek Falls in the parking lot of the Linville Falls visitor center where I sat on a bridge centered over the stream (I cannot get down to the water level due to a recent operation which limited me to just basic views). Notice the sharpness of the image and the tonality of the rocks drawing the viewer into the scene. There was very little post processing on this image which shows the real power of the Monochrome! For this shot I used the Leica Macro-Elmar-M 90mm f/4 lens which is an amazingly tiny yet sharp lens! This image simply takes my breath away with it sharpness, tonality and the way it draws the viewer into the image. This is one of my planned images for a Platinum/Palladium print in a few weeks!

This camera is going to be the cornerstone of a old (new for me) printing process where I will be making LARGE contact negatives on an Epson 7900 printer to use in the making of chemical based Platinum/Palladium metallic prints exposed with a high intensity UV lamp set and chemically developed. All of the images are B&W so the high resolution images generated with the Monochrome will work perfectly with this printing process.

When used with a high quality ND filter set from B+W the most amazing Long Exposures are possible and this camera simply delivers!

The set of ND filters that I keep in my kit for in sizes for each of my Leica lenses from B+W are:

103 – 3 stop ND
106 – 6 stop ND
110 – 10 stop ND

Outer Banks Fishing Pier, 250 second Exposure

Here is an example taken on the Outer Banks of North Carolina prior to sunrise with 6 stops of ND filter and a 250 second exposure! I used the 50mm Summilux ASPH lens for this image. Look at the tones and graduations of the grays. Simply amazing…

Roanoke Marshes Light, 8 second exposure

Another example is this image of the Roanoke Marshes Lighthouse taken about a month ago at sunrise. The detail in the clouds and water prove the ultra wide dynamic range that this camera is capable of!

Jordan, my grandson on his new Christmas drum set taken with the Monochrome and the Leica SF 58

Leica SF 58 Flash

For people, I have been coupling the M Monochrome with the Leica SF 58 flash which is simply a pleasure to use and is fully integrated with the M electronics! The camera and flash are so well functionally balanced that it will blow your mind when you pick them up to shoot! Audio indications from the flash for performance and a dual flash head that allows a straight on light plus a bounced light!

As you can see from the image of Jordan, it is exceptionally well balanced and the tonality is perfect yet there is no overt indication of flash in use!

I have used a Sekonic DR750 spot meter along with special software and target to measure the dynamic range of this camera when shooting in RAW (DNG) and get 11 to 13 stops dependent upon the ISO setting being used. Who says that paying big dollars for a camera system doesn’t guarantee big performance!

The system simply amazes me…..

If you have any comments or questions on this post please send me some feedback and I will answer to the best of my ability!

Outer Banks Fishing Pier, 250 second exposure. Note the moving clouds!

Jul 5 2014

Going to the Dark Side: 830nm Infrared and the Fuji X100s

830nm Infrared Conversion on the Fuji X100s

Image 1: Oak Reflections, 830nm

Infrared photography with digital camera systems have been around for several years now and a lot of photographers have embraced this different spectrum of photography. Infrared is wildly popular in photography and fine art galleries now and my workshops are full of lots of talented photographers who desire to learn or expand their infrared skills.

Pawleys Marsh, 830nm X100s

The typical starting point for most infrared shooters is 720nm (standard) or 590nm (Goldie) IR conversions. We have all seen the amazing color images that these two conversions can generate. As previously discussed, we always process not only in Faux Color, but for B&W also. The B&W images are usually more accepted among the arts community though.

Image 3: Pawleys Marsh, 720nm

But did you know that with each increase in the IR Nano Meter band (the frequency goes down as the number goes up) that the contrast levels go up in B&W as well? This increase in the NM band starts to generate the most stunning, contrasty, ethereal images that have to be seen to be believed! The higher you go in the NM range also increases the white “glow” around the leaves and grass and the blue sky takes on a deep black. This effect is named the “Wood Effect” after doctor Robert Wood who discovered it 1910. What happens is that the leaves get a bloom or glow of white around them that generate that wonderful ethereal feel in the image. Take a look at image 1 which was taken at 830nm. Do you see the dark black where the blue sky is? Look at the leaves on the trees and how they take on the pure bright whites! Now compare that to 720nm image above in Image 2. The most striking difference is the gray sky rather than black, plus the leaves are grayer rather than white.

Image 3: Shrimp Boat at 830nm

I would like to suggest that if you shoot in IR or are interested in doing so then you should consider a deep contrast IR conversion beyond 800nm. There are a lot of benefits to be found in that spectrum. This new spectrum sees ONLY in B&W, which will force you to visualize your scene in B&W.

The benefits to a Deep B&W IR conversion are:

Extremely sharp images.
Wood Effect bloom on plant leaves.
Dark moody skies.
Only works in B&W
Post processing is easy and quick using Nik Viveza and Silver EFX for texturing and contrasts. Photoshop CC, Elements or Lightroom, they all work for Deep B&W IR!
White Balance is easy.

Image 4: Mabry Mill, 830nm

There are several ways to have a camera converted to deep B&W above 800nm.

The easiest is to simply take ANY digital and have it converted by removing the internal UV/IR blocking filter and replacing it with a 800nm, 830nm or a 850nm internal filter. With this type of conversion you can use any digital camera type or style because only the sensor will see the infrared light and you will either see the scene via the optical path or via a live view from the sensor. Typically, this type of conversion should cost around $300 to $350 thru any of the normal conversion companies.
If you are shooting a Full Spectrum or Dual Spectrum conversion then you can purchase and attach a B+W 093 830nm filter to your camera lens! This filter blocks ALL visible light so you MUST have a camera with a live view only to use this otherwise you will never be able to see thru the optical path to focus and compose. The Full Spectrum camera is one that has had the internal UV/IR blocking filter removed and replaced with clear glass and the Dual Spectrum conversion is where the internal UV/IR blocking filter is removed and replaced with a strong UV filter.

Image 5: Rock Run Mill, 830nm

With either the full or dual conversions you can shoot every of the following light spectrums:

Ultra Violet Full Spectrum *
UG1 UV & IR Full Spectrum *
047b In Camera Faux Color Full Spectrum *
530nm Faux Color Full & Dual Spectrum
590nm Super Color Full & Dual Spectrum
630nm Pinkie Faux Color Full & Dual Spectrum
665nm Enhanced Color Full & Dual Spectrum
720nm Standard Full & Dual Spectrum *
800nm B&W Full & Dual Spectrum *
830nm Deep B&W Full & Dual Spectrum *
Normal Visible Color Full & Dual Spectrum

* Requires Live View capable camera

Now, Normal Visible Color simply means that your camera can take normal color images as it did from the factory! This means that you have a multi purpose camera that can take anything.

The only issue is that if you have a Full Spectrum conversion you need to stack a B+W 486 reflective IR/UV blocking filter on your lens with a LDP CC1 absorption filter to get back to good normal color.

For the Dual Spectrum conversion you only need to put the B+W 486 reflective IR/UV filter on your lens and it is back to normal color!

Disadvantages to the Full or Dual Spectrum Camera Conversion:

More expensive to convert.
External filters for each of our lens sizes.
Color filters (530 – 665nm) are not expensive but the B+W 093, B+W 486 and the LDP CC1 filters are VERY expensive.
Your camera MUST have a live view mode to focus and compose.

Image 6: Charlotte Marie, 830nm X100s

I have several cameras converted to above 800nm and several full spectrum and a new dual spectrum converted Fuji X100s. The images that I am getting from the Fuji with a B+W 093 830nm filter are the sharpest and most stunning deep IR images that I have ever produced! But that doesn’t mean that you need to go out and purchase that one. Any camera with live view will work great with the 830nm spectrum. Keep in mind though, that the more modern your camera is the higher the usable ISO will be!

You can contact Mark at his web site at http://www.MarkHilliardAtelier-blog.com for information on his Color & IR workshops, which he teaches with Jamie Davidson, and for his IR Post Processing DVD Tutorials!

Fuga City, 830nm, Georgetown, SC

May 3 2014

Going Home to Momma with the Leica M7…. Film Photography Returns!

Ahhh… It Feels So Good!

Spring in the South… Rollei IR400 Film – Leica M7 50mm Lux – Rodinal 1-50

Oh my, I do NOT know where it came from but I got the BUG again for more film photography! I have a cabinet here in the Gallery just full of old film cameras plus a Leica M7 film body that works with ALL OF MY M MOUNT LENSES! (see the last post HERE for more info on the lenses). I decided to purchase a new stock of several films:

Kodak Tri-X 400, Ohh
Eastman Double X 200, Ahh
Rollei IR400 400, WOW!
Kodak Tmax, Ho hum…
Ilford HP5+ 400

Rodinal One Shot

I picked up some stainless 2 roll developing tanks with a bunch of Hewes (don’t skimp on your reels, buy the best!) Stainless Steel 35mm Reels. For developing I like Rodinal One Shot due to its ease of use and a life span of around 40 years. I simply mix it one tank at a time usually at a 1:50 ratio with water using a small syringe. It allows a very wide latitude of contrast and iso control. I have used several other developers but I keep coming back to Rodinal!

Now, I am playing with several cameras. As I said my main and BEST camera is my Leica M7. But here is a current list of those cameras I am using:

Leica M7 with Leica & Voigtlander Lenses
Petri 7s, 1962
Olympus XA
Olympus 35 RC
Shen Hao 4×5 Field Camera (about 12 years old)

1962 Custom Petri 7s Film Body

The Petri 7S has been in my hands since 1962 and still shoots great ( I did send it off to have the light seals replaced and a new leather covering ). The Petri has no batteries but rather a solar cell around the lens that drives a needle exposure meter that you simply place into its center notch for a good image!

All of the cameras in my list above have proven reliable but with the Petri you get a link to the past, specifically MY past as this was my 2nd camera I owed when I was young!

The Olympus 35 RC is an amazing small rangefinder with very nice controls. It is smaller then the Petri 7s and actually has better control functionality. It does require a battery to run its metering system though which is a step down from the Petri 7S in my opinion. The nice thing other than the size is the fact that EVERYTHING is displayed inside of the viewfinder. Unlike a refurbished Petri 7S which can be found for around $100 used on Ebay, the Olympus 35 RC camera refurbished is demanding around $250! This is a big difference in price and tells you a lot about its quality and demand! I was lucky to find one from a collectors inventory that he sent off to be totally refurbished and re-skinned for much less than $200.00! For you film shooters out there on a budget this is the camera that I recommend if you find yourself desiring a rangefinder.

My Custom Olympus 35 RC

The Olympus XA was a 35mm rangefinder camera built by Olympus of Japan. It was one of the smallest rangefinder cameras ever made, together with the Contax T.

Olympus-XA

It was designed by Yoshihisa Maitani who had joined Olympus Optical Co Ltd in 1956. He was the chief camera designer and managing director of Olympus Optical Co Ltd., having developed a number of legendary cameras during his career. These included the Pen series, the OM series, the XA series, the IS series and the [mju:] series of cameras.

The original model, the XA, was sold from 1979 to 1985. The original XA features true rangefinder focusing, a fast 35mm f/2.8 lens, and aperture prioritymetering. The lens was protected by a sliding dust cover.

This is the smallest 35mm rangefinder ever made. It will fit in the palm of my hand and will make a great system to have with me everywhere I go!

The Leica M7 uses batteries and sports a center weighted spot meter measured either off the film or off the shutter. I find that it meters very reliable. It is the top of the heap when it comes to 35mm film cameras. There are a lot of high end rangefinder cameras on the market but the Leica is the top. I really excels in the area of long exposures with either a count down timer in the viewfinder for images metered and controlled in the aperture priority mode or a count up timer for exposures done in the bulb mode. In bulb, it will count up to 16 min then stops counting for battery conservation, but will continue exposing until you release the remote shutter release. It will use NO battery power after the 16 min count up timer turns off until you release the shutter then it requires a pulse of electricity to close the shutter. NO other rangefinder can say this unless you use a pure mechanical camera like a Leica M2 which has no metering system at all.

The Leica M7 is surprisingly heavy but easy to handle. I keep reading about other high end rangefinder bodies out there but when you do the comparison of features I always come back to the M7.

My Leica M7 Film Body

All of my cameras are fun to use and reliable. With the Leica M7 you get the world class glass but with the Petri 7S you get a link to the past, specifically MY past as this was my 2nd camera I owed when I was young! The Olympus 35 RC is an advanced rangefinder from the 1970 era and is slick and fun to shoot. You will see examples from these cameras towards the end of this post!

______________________________________________________

I usually develop my negatives on Sundays. I have a film drying cabinet that I use to dry the film without dust spots overnight. I then will scan the negatives on Monday or Tuesday using a Nikon 4000 ED film scanner at 4000 dpi into the DNG format for editing and cleaning later in the week. I usually shoot 2 or 3 rolls a week.

Rollei IR400 Film

My favorite film is Rollei IR400. This is available at the big camera stores like Digitaltruth, Freestyle and B&H. What makes this film so special is the fact that is very much like Kodak Tri-X 400 as shot. It has a VERY THIN film base which really makes scanning easy. BUT the most amazing thing about this film is that it is sensitive to INFRARED! If you place a Hoya R72 IR filter on the camera lens the film will record 720nm IR images! There is an ISO hit due to the filter being so dark down to 12 ISO but it is worth it being able to shoot in both normal B&W and IR B&W!

Next I like the Kodak Tri-X 400 film. It gives great contrasts and has a very wide latitude in development. It is well known and tested and for ultra long exposures.

Eastman Double X 5222

Then comes Eastman Double X Cinema film. This is a GREAT B&W film that gives a very smooth gradation and lovely warm tonality with slightly increased contrasts. This is motion picture film so unless you are going to buy a 400 foot reel you will need to purchase it from the store at Film Photography Project. They will sell it in either 24 exposure rolls or a 100 foot bulk loader roll. It develops nicely in Rodinal at 1:60 for ISO 200 but there are ratios for 100 up to 800 ISO! This film is very much worth experimenting with.

I need to say a few words about the folks at Film Photography Project. They offer an amazing wide selection of films and old cameras! This includes Polaroid cameras and film also! Their Podcast is amazing and I find that it is so good that I now have it running all day while I am working at my gallery in Pawleys Island. Good Stuff, check them out here: Film Photography Project.

Whatever film you decide to use you will be pleased with the results. Processing is easy to do with a VERY small investment. You will need:

Film Camera
Film
Chemestry: Developer, Stop (you can use water), Fixer and water bath with a Wetting Agent. $40 to get started

Film drying hanger clips $3 for a bag of 2
Film tank, either stainless steel or a Peterson. Peterson tank and reel is about $40
Film tank reels (if stainless do not skimp on these). Hewes Steel are about $25 each
Dark changing bag to move the film from the canister to the developing tank. $40
You will also need some way to scan your film into a digital image or pay someone to do it for you.

That is it. It normally takes me about an hour to develop 2 rolls. I will let them dry for several hours then cut them into strips of 6 and put them into plastic storage sheets.

For scanning, as I said above, I use a Nikon 4000ED film scanner. As you can guess from the name it will scan at 4000 dpi and has a lot of adapters for different types of film scan feeders. It has slide auto feeders, single slide feeders, a 6 position film rail for troublesome film and an automatic roll feeder to scan entire rolls automatically. If you couple this with VIEWSCAN software you have an amazing scanning system that rivals those that pro labs use!

Nikon 4000 ED system

Ok, lets take a look at the results of 3 types of film in 2 cameras!

Pawleys Pier M7 Elmarit 28 Rollei IR400 film in Rodinal at 1:50 240 second exposure

1962 Petri 7S, Eastman Double X film in Rodinal at 1:60

Eastman Double X Film – 1962 Petri 7S – Rodinal 1-50

1962 Petri 7S, Eastman Double X film in Rodinal at 1:60

Rollei IR400 Film – Leica M7 50mm Lux – Rodinal 1-50

Rollei IR400 Film – M7 28mm Elmarit – Rodinal 1-50

Rollei IR400 Film – M7 50mm Lux – Rodinal 1-50 240 second exposure

Rollei IR400 Film with R72 IR Filter – M7 50mm Lux – Rodinal 1-50

Rollei IR400 Film – M7 50mm Lux – Rodinal 1-50

I hope that you enjoyed this post and its associated images. I have been using film since I was 9 years old. At 13 I had my first darkroom at home. I worked in film in my own darkroom until I was 18 when that period of my life can to an end. 42 years later I re-engaged film photography again and cannot help but ask “Why did I wait so long?” I have been shooting digital since my career at Eastman Kodak when you could ONLY get B&W digital camera systems! I have spent fortunes on digital and have loved every moment of it. Film will NOT take any of that away, I still have digital and continue to use it. But I have to be honest and admit that working in film again fills me with a sense of peace that I have not experiences in a very long time….

Please let me know what you think of this post!

May 3 2014

Leica M240 Digital..

Oh, No… Another Camera System…

Leica M240 24 mpx Digital

Well, in a wild turn of events I have picked up some new camera equipment… This is a really no surprise as it is a sickness or rather addiction! But onward and upward!

I do have to tell you that I am REALLY excited over acquiring these new systems though. And unfortunately, one thing has let to another and thus a long journey has also been started into the realm of film again!

But first let me highlight the “What”!

As you can see in the top image, the newest body is the new Leica M240 24 full frame 24 mega pixel body. It also has a true “live view” which allows use of all sorts of other lenses like the Leica R series that you would NOT normally be able to focus. This means everything from long telephotos to true macro (subject of the next post!). After a few months of use I can tell you that this is the BEST digital system that I have ever used! Along with it I also picked up several lenses.

Leica 50mm Summalux ASPH f/1.4

First, the main lens is the Leica M 50mm f/1.4 Summalux ASPH lens in silver. This is a HEAVY lens. If attacked by a bear I could use it to beat him half to death. The lens itself has turned into my main lens that I use 60% of the time. It has a built in leans hood and takes 46mm filters. The Bokah that this lens can generate is amazing beyond description. It is extremely smooth and easy to use and generates images that are truly amazing!

Tulip at f/1.4, Leica 50mm Summalux ASPH

Tulip at f/1.4, Leica M240 w/ Leica 50mm Summalux ASPH

Leica 28mm Elmarit ASPH

The next lens is the Leica M mount 28mm f/2.8 Elmarit ASPH. This is a TINY light lens that takes 39mm filters. These smaller filters sized considerably cut the cost of purchasing top of the line B+W filters. Since the M240 camera is a full frame sensor the 28mm really is 28mm! The lens is sharp beyond words and quick to focus. I am really please with this lens and use it for landscapes and lightning photography when mounted on my Fuji X-T1 camera.

The example image for this lens below is a texture overlay. The main image was an Infrared image taken by placing a R72 (720nm) infrared filter on the lens giving a white IR image of a palm leaf, then doing a texture overlay of colored flowers.

M240-1916-Palm Overlay-2014 in both 720nm Infrared and Color

Leica Macro-Elmar-M 90 mm f/4

The next lens is the Leica Macro-Elmar-M 90 mm f/4 and its macro adapter with split image view. This is a very unique lens in that it collapses for storage. By itself it is a great 90mm lens and has proven useful for mid range subjects as well as for Infrared work with the addition of a R72 IR filter. When you add its macro adapter (extension tube coupled to a viewfinder modifier) it will then give you macro capabilities down to a 1:3 image ratio! Below is an example of a macro image shot with this lens last week at Moore Farms in Lake City .

Leica Macro-Elmar-M 90 mm f/4

Now, I already had my two Voigtlander M mount lenses that I was using with the Fuji systems, but they are M mount!

Voigtlander 75mm f/1.8

First is the Voigtlander Heliar 75mm f/1.8 Lens. This is an amazing lens that is very fast at f/1.8. The focus is smooth and long and it works very well with M mount extension tubes for true macro work (1:1 image ratio). I do have 3 of the 10mm extension tubes for it as well as a Canon 500D closeup lens. For my really small stuff this is my goto lens. It is a little long but has a very nice clam on lens hood. While it is NOT a Leica lens it is very close in terms of quality and ease and the f/1.8 aperture gives lovely bokah!

Here then is an example of a 1:1 life-size macro shot with it!

Green Dots…

Voigtlander 12mm Ultra Wide Hellar

The last lens that I am going to talk about here is the Voigtlander Ultra Wide-Heliar 12mm f/5.6 Aspherical M Mount lens. Another heavy all metal lens with remarkable focus and DOF. Since it is so wide you can almost have a DOF from right in front of the lens out to infinity! Plus 12mm is really 12mm on the camera! Given that the camera is both full frame and has a live view you can see the power of using this lens and the ease of composition and focus!

In the example image below please notice the extreme range of the depth of field!

Stormy Seas, down low and dirty… Voigtlander 12mm

As you can see, all of the system components are extremely high quality and easy to use giving stunning results. I like to create Long Exposure and Infrared images as well so I thought that I would share some of them with you below.

Pier, Leica M240 60 second exposure

M240 w/ R72 IR Filter

Leica M240 w/ 28mm Elmarit

6 Shot HDR, Leica M240

Blue Hour in B&W, Leica M240, 60 second exposure

Low Tide, Leica M240, 45 second exposure

	Presenting at the NE… on Presenting at the NECCC Photog…
	Creative B&W Edu… on Creative B&W Educational…
	James Martin Duffy on Railroad Day Trip and the Fuji…
	CLiR Infrared Post P… on CLiR Infrared Post Processing…

Sometimes even the best of us get surprised!

The Carson Elizabeth

For those of you who are interested in the fine art of FILM PHOTOGRAPHY AND SELF PROCESSING, join me on my new G+ page HERE and learn and share!

Share this:

720nm Medium Format Film Photography with Rollei IR400 Film

If you are considering working in 720nm whether in film or digital I highly recommend this new filter from Kolari!

Share this:

It seems that I am addicted to film…

I hope that you enjoyed this post but more importantly to me at least that you considered my words on the creative process and taking complete control of it!

Share this:

Getting your BEST B&W image!

Share this:

Sometimes we just have to stand there taking it all in!

Ok, this post is done. Get out there, shoot and create, but slow down and think about what and WHY you are doing it!

Share this:

The joys of returning to our photographic roots…

Film Cameras

Film

Please let me know what you think of this post!

Share this:

Wandering the shrimp fleets of Georgetown with my Voigtlander Bessa III 120 film camera….

Come on back in a few weeks to see the results of todays outing!

Share this:

Share this:

Yes, HOW could such a high quality Leica Lens be so problematic….

Enter High Tac Copper Tape…

7 Meter Focus Tests…

Now, The 50 meter tests…

Infinity Focus Test

Share this:

Going Home To Momma…

Share this:

Who knew Gold would be so cool?

I think that the toning process is VERY worth while and highly recommend that you give it a try.

Share this:

Fixing Paper Problems For Van Dyke Brown Printing

Lana Aquarelle Paper Notes

Rising Stonehenge Paper

Bergger Cot 320 Paper

I hope that you got something out of the info here! Let me know…

Share this:

Perfection in Brown…

I hope that you enjoyed this short post on the Van Dyke Brown Process. You can look for more about it in the future!

Share this:

My favorite image from my visit to Georgetown today…

Stormy Seas… Calm Dock…

Share this:

A new (read OLD) way of printing!

Alternative Printing from History!

Look forward to many more posts on the processes as I master them!

Share this:

Creating World Class B&W Images With Leica Monochrome

Thanks for taking the time to view these!!

Share this:

A new camera come homes to live!

If you have any comments or questions on this post please send me some feedback and I will answer to the best of my ability!

Share this:

830nm Infrared Conversion on the Fuji X100s

Share this:

Ahhh… It Feels So Good!

Please let me know what you think of this post!

Share this:

Oh, No… Another Camera System…

I hope that you enjoyed this post. I will have several more shortly in the future highlighting more of this system as well as some new FILM work!!

Stay Tuned!

Share this:

**Getting your BEST B&W image!**
